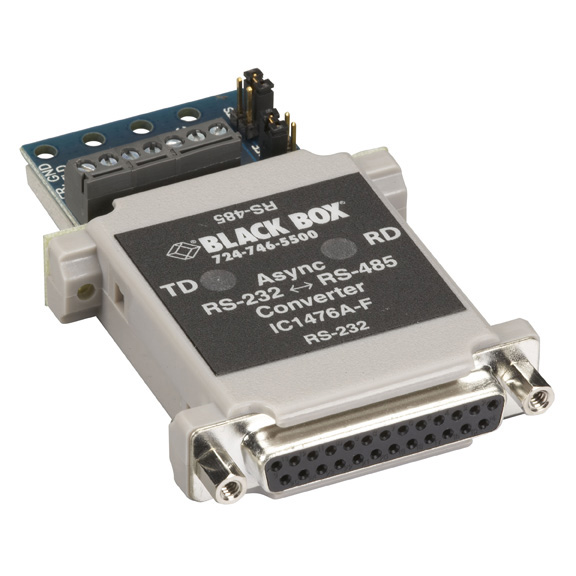

IC1476A-F-US

Photo may show similar product

Other views

Async RS-232 to RS-485 Interface Bidirectional Converter, DB25 Female to Terminal Block

The best way to convert your async RS-232 video connection.

IC1476A-F-US

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Converts RS-232 signals to RS-485 signals.
  • Operates at speeds up to 115.2 kbps.
  • Transmits up to 4000 feet (1219.2 m).
  • Use point-to-point or multipoint.


  • Description

    Async RS-232 to RS-485 Interface Bidirectional Converter, DB25 Female to Terminal Block


    Quick Facts

  • Converts RS-232 signals to RS-485 signals.
  • Operates at speeds up to 115.2 kbps.
  • Transmits up to 4000 feet (1219.2 m).
  • Use point-to-point or multipoint.

  • Further Details

  • Operates in half- or full-duplex over two or four wires.
  • Works with or without transmit "echo."
  • The converter's RS-232 side has a DB25 female connector configured as DCE.
  • The converter's RS-485 side has a terminal block.
  • Also available in four other configurations. See Similar Products.

  • Our Async RS-232 to RS-485 Interface Bidirectional Converter, DB25 Female to Terminal Block, converts unbalanced, full-duplex RS-232 signals to balanced half- or full-duplex RS-485 signals. It uses two user-selectable methods to enable the RS-485 driver, either by toggling Request to Send (Pin 4) of the RS-232 side or by sensing the data on the Transmit Data (Pin 2) of the RS-232 side automatically. By removing both sets of jumpers, you can constantly enable the RS-485 driver and receiver. In other words, it can act like an RS-422 converter.

    This product works with:
  • Asynchronous Modem Eliminators (AMEs) (ME201–ME202, ME212–ME213)
    Questions? Contact our FREE Tech Support.

  • Technical Specifications for Async RS-232 to RS-485 Interface Bidirectional Converter, DB25 Female to Terminal Block:

    Operation 2- or 4-wire, half-or full-duplex operation
    Transmitter Control RTS or data or always on
    CE Approval Yes
    Power 120 VAC, 60 Hz, external
    This product works with:
  • Asynchronous Modem Eliminators (AMEs) (ME201–ME202, ME212–ME213)
    Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
