IC1521A-F

Photo may show similar product

Other views

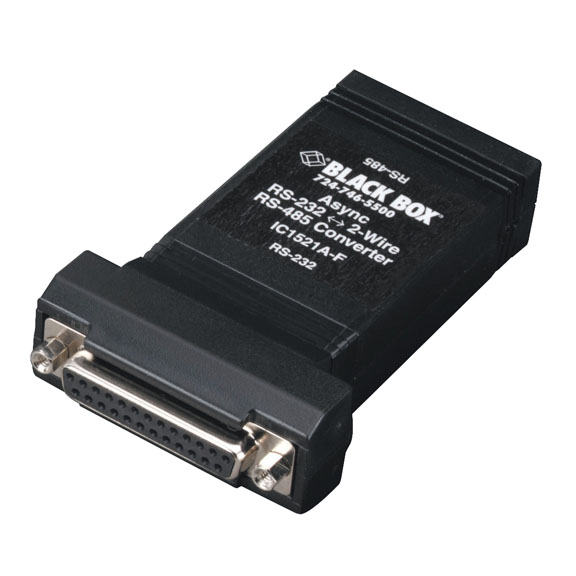

Async RS-232 to 2-Wire RS-485 Interface Bidirectional Converter, RJ-45 to DB25 Female

Transmit your asynchronous data point-to-point across RS-232 and RS-485 interfaces.

IC1521A-F

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Data flies at up to 115.2 kbps.
  • All RS-232 and RS-485 data signals passed straight through.
  • Provide async, point-to-point, half-duplex operation over two wires.


  • Description

    Async RS-232 to 2-Wire RS-485 Interface Bidirectional Converter, RJ-45 to DB25 Female


    Quick Facts

  • Data flies at up to 115.2 kbps.
  • All RS-232 and RS-485 data signals passed straight through.
  • Provide async, point-to-point, half-duplex operation over two wires.

  • Further Details

  • Range of up to 4000 feet (1219.2 m).
  • Transparent operation.
  • DB25 is configured as DCE.
  • No RTS toggle required.
  • Powered from RS-232 signals.
  • Pass transmit and receive data in each direction.

    Tired of trying to figure out how to configure DCE equipment? Our Black Box® Async RS-232 to 2-Wire RS-485 Interface Bidirectional Converter is ready to go right out of the box—no configuration is necessary. In minutes, your data will fly between RS-232 and RS-485 interfaces at speeds up to a zippy 115.2 kbps!

    The Async RS-232 to 2-Wire RS-485 Interface Bidirectional Converter provides big-time performance in a small package. It derives its power from RS-232 data and control signals, so no batteries or clunky AC power adapters are required.

    Transmit and receive data are passed in each direction. You get async, point-to-point operation for your 2-wire, half-duplex applications. Connector options include DB25 female connectors matched with either an RJ-45 connector or a terminal block with built-in strain relief.

    Get the distance you need, too. The Async RS-232 to 2-Wire RS-485 Interface Bidirectional Converter has a range of up to 4000 feet (1219.2 m). Once installed, the converter operates transparently as if there were a standard cable connection. All data signals from the RS-232 and RS-485 interfaces are passed straight through.

  • Technical Specifications for Async RS-232 to 2-Wire RS-485 Interface Bidirectional Converter, RJ-45 to DB25 Female:

    Distance (Maximum) 4000 ft. (1219.2 m)
    Operation 2-wire, RS-485, half-duplex, point-to-point
    Protocol Async
    Speed (Maximum) 115.2 kbps
    Transmitter Control Data
    CE Approval Yes
    Connectors (1) RJ-45, (1) DB25 F
    Power From the RS-232 interface
    Size 0.7"H x 2.1"W x 2.7"D (1.8 x 5.3 x 6.9 cm)
    This product works with:
    Category 3 Solid Bulk Cable (EYN712A)
    DB25 EMI/RFI Shielded Gender Changer, Male/Male (FA402-R2)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Async RS-232 to 2-Wire RS-485 Interface Bidirectional Converter, RJ-45 to DB25 Female:


    Connect your Async RS-232 to 2-Wire RS-485 Interface Bidirectional Converter, RJ-45 to DB25 Female with:

    Accessory: FA402-R2

    DB25 Gender Changer, EMI/RFI Shielded, Male/Male

    DB25 Gender Changer, EMI/RFI Shielded, Male/Male

    Accessory: IC1520A-F

    Async RS-232 to 2-Wire RS-485 Interface Bidirectional Converter, Terminal Block to DB25

    Async RS-232 to 2-Wire RS-485 Interface Bidirectional Converter, Terminal Block to DB25
