Datacom > Extenders & Line Drivers

click photo to enlarge

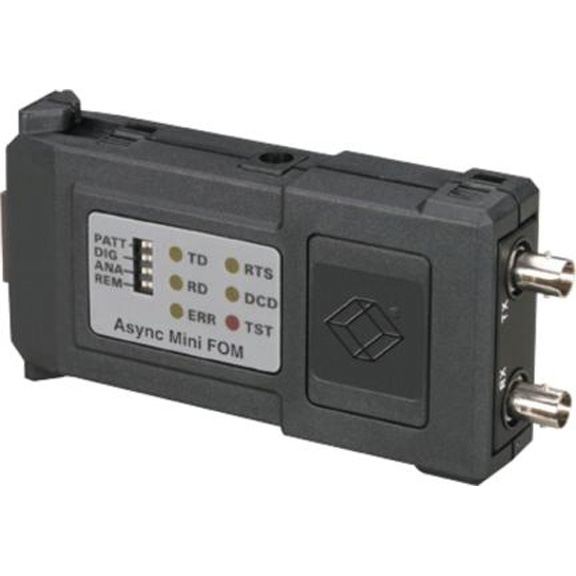

ME615A

Photo may show similar product

Other views

Async Mini Fiber Optic Modem, ST, Multimode, 850-nm

Extend RS-422 over fiber.

ME615A


One year Warranty

Product Highlights

  • Transmit your async RS-422 or V.11 data over multimode or single-mode fiber at up to 115.2 kbps full-duplex.
  • Async transmission over fiber up to 115.2 kbps.
  • Features ST connectors.
  • Operate at distances of up to 10 miles (16 km) for multimode or 16 miles (25.7 km) for single-mode.

  • Description

    Async Mini Fiber Optic Modem, ST, Multimode, 850-nm


    Quick Facts

  • Transmit your async RS-422 or V.11 data over multimode or single-mode fiber at up to 115.2 kbps full-duplex.
  • Async transmission over fiber up to 115.2 kbps.
  • Features ST connectors.
  • Operate at distances of up to 10 miles (16 km) for multimode or 16 miles (25.7 km) for single-mode.

  • Further Details

  • Point-to-point.
  • Compact, lightweight, easy to install.
  • Support RS-422, V.11, V.52, and V.54.
  • Also available in single-mode fiber models.

  • Transmit your async RS-422 or V.11 data over multimode fiber at up to 115.2 kbps full-duplex.

    Built for heavy-duty industrial applications, the Async Mini Fiber Optic Modem drives data up to 16 miles (25.7 km). Transmissions are clear because fiber optic cable provides electrical isolation and immunity from EMI/RFI interference.

    The Async Mini Fiber Optic Modem is great for loop diagnostics—simply flip the external DIP switches. Two V.54 loops are available: local analog loop (Loop 3) and remote digital loop (Loop 2). Local digital loop also is available for V.11.

    The Async Mini Fiber Optic Modem also includes a built-in V.52 standard BER tester for link integrity. Like the loop tests, the BER analysis is activated by an external DIP switch. An LED blinks if an error is found in the data transmission.

    Power is derived from a standard 115-VAC wallmount adapter.

    NOTE: Must be used in pairs.

    This product works with:
    • Multimode, 62.5-Micron, Breakout-Style Bulk Fiber Optic Cables (EXN1002A, etc.)
    • Single-Mode, 8.5-Micron, Distribution-Style Bulk Fiber Optic Cables (EXN006A, EXN012A)
    Questions? Contact Tech Support.


    Technical Specifications for Async Mini Fiber Optic Modem, ST, Multimode, 850-nm:

    Distance (Maximum) — 16 mi. (25.7 km), single-mode
    Operation — 4-wire full-duplex, point-to-point
    Protocol — Asynchronous
    Speed — Up to 115.2 kbps
    CE Approval — Yes
    Interface — RS-422, V.11, V.52, V.54
    Connectors — (1) pair of ST, (1) terminal block
    Power — 115 VAC, 60 Hz (230 VAC, 50 Hz version on request)
    Size — 0.9“H x 2.1“W x 3.9“D (2.3 x 5.3 x 9.9 cm)
    Weight — 0.3 lb. (0.1 kg)
    NOTE: Must be used in pairs.

    This product works with:
    • Multimode, 62.5-Micron, Breakout-Style Bulk Fiber Optic Cables (EXN1002A, etc.)
    • Single-Mode, 8.5-Micron, Distribution-Style Bulk Fiber Optic Cables (EXN006A, EXN012A)
    Questions? Contact Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Async Mini Fiber Optic Modem, ST, Multimode, 850-nm:

    Product Data Sheets


    Connect your Async Mini Fiber Optic Modem, ST, Multimode, 850-nm with:

    Accessory: EXP012A-0500

    Single-Mode, 8.5-Micron, Distribution-Style Fiber Optic Bulk Cable, Plenum, 12-Fiber, 500-ft. (152.4-m) Reel

    Single-Mode, 8.5-Micron, Distribution-Style FO Bulk Cable, Plenum, 12-Fiber, 500-ft. (152.4-m) Reel
