ME605A-MST

Photo may show similar product

Other views

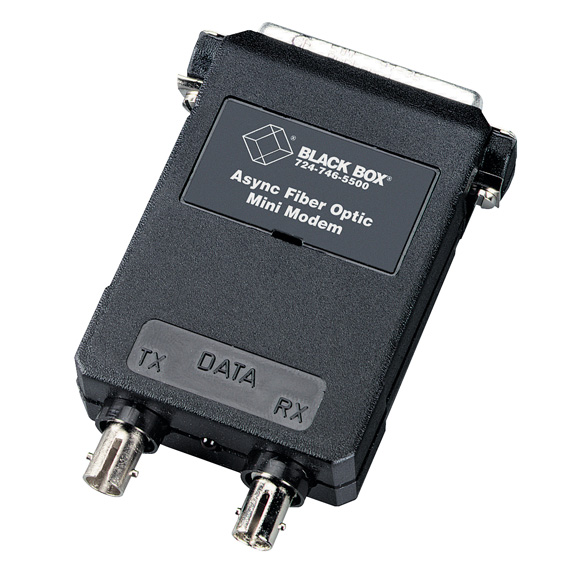

Async Fiber Optic Mini Modem, DB25 Male

See the light! Get the async fiber optic driver that transmits full- or half-duplex up to 2 miles at any speed up to 19.2 kbps.

ME605A-MST

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Operates half- or full-duplex.
  • Async transmissions at any speed up to 19.2 kbps.
  • Sends data up to 2 miles over multimode.
  • No external power required.

  • Description

    Async Fiber Optic Mini Modem, DB25 Male


    Quick Facts

  • Operates half- or full-duplex.
  • Async transmissions at any speed up to 19.2 kbps.
  • Sends data up to 2 miles over multimode.
  • No external power required.

  • Further Details

    Need duplexing flexibility for driving local data? How about selectable speeds? Black Box has your solution—our Async Fiber Optic Mini Modem!

    The Async Fiber Optic Mini Modem works in pairs. Connect to full- or half-duplex async computers and terminals to send data over multimode fiber optic cables up to 2 miles (3.2 km). And drive your data at any speed up to 19.2 kbps!

    The Mini Modem has an RS-232 male interface, a switch-selectable DCE/DTE, and an LED indicator for transmitted data. Compact, lightweight, and easy to install, it plugs directly into an RS-232-C terminal connector.

    No external power is required. The Async Fiber Optic Mini Modem is powered from DTE data and control signals.

    NOTE: Must be used in pairs.

    NOTE: This product does not work for fiber applications under 500-meters.


    Technical Specifications for Async Fiber Optic Mini Modem, DB25 Male:

    Distance (Maximum) 2 mi. (3.2 km)
    Operation Half- or full-duplex
    Protocol Asynchronous
    Speed (Maximum) 19.2 kbps
    Interface RS-232 (DCE or DTE)
    Connectors (1) pair of ST®, (1) DB25 M
    Power From the interface; DTE: From Pins 5, 6, or, 8;
    DCE: From Pins 4 or 20
    Size 0.7"H x 2.1"W x 3.1"D (1.8 x 5.3 x 7.9 cm)
    Weight <0.1 lb. (<0.1 kg)

    NOTE: This product does not work for fiber applications under 500-meters.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Connect your Async Fiber Optic Mini Modem, DB25 Male with:

    Accessory: EXN050A-1000

    50-Micron Multimode, General-Purpose, Zipcord Duplex, Fiber Optic Bulk Cable, PVC, 1000-ft. (304.8-m)

    50-Micron Multimode, General-Purpose, Zipcord Duplex, Fiber Optic Bulk Cable, PVC, 1000-ft. (304.8-m)

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A warranty is included.

    Extended 1 Year Warranty Available


    Protect your purchase with an additional 1 Year Double Diamond™ warranty!
    Cost: $16.80

    Extended 3 Year Warranty Available


    Protect your purchase with an additional 3 Year Double Diamond™ warranty!
    Cost: $33.59

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most of our products come with a one- or two-year warranty. Some products—such as copper cables, manual switches, cabinets, and racks—are even guaranteed for life!

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product* for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! ?
    Tech Support Hotline 100% FREE! $$$

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    Async Fiber Optic Mini Modem, DB25 Female ME605A-FST $188.95

    You can find this product in the following subcategory(s)


    Add to Cart

    Price: $189.95

    Quantity Available: 27

    Quantity

    Warranty

    Total

    Shipping Info

    In Stock - orders received before 5PM ET ship same day

    Weight: 0.1 lbs.
    HxWxD: 1.5 x 3.1 x 3.9 in.
