Armored Loose-Tube Outside-Plant Fiber Optic Bulk Cable, 1000-ft. (304.8-m)

Outdoor fiber cable with a built-in conduit.

EXN4075A-1000

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • Cable features multimode 62.5-/125-µm fibers in tight-buffered, loose tubes stranded around a central member.


  • Description

    Armored Outside-Plant Bulk Fiber Optic Cables, 1000-ft. (304.8-m), 12-Strand


    Quick Facts

  • Cable features multimode 62.5-/125-µm fibers in tight-buffered, loose tubes stranded around a central member.

  • Further Details

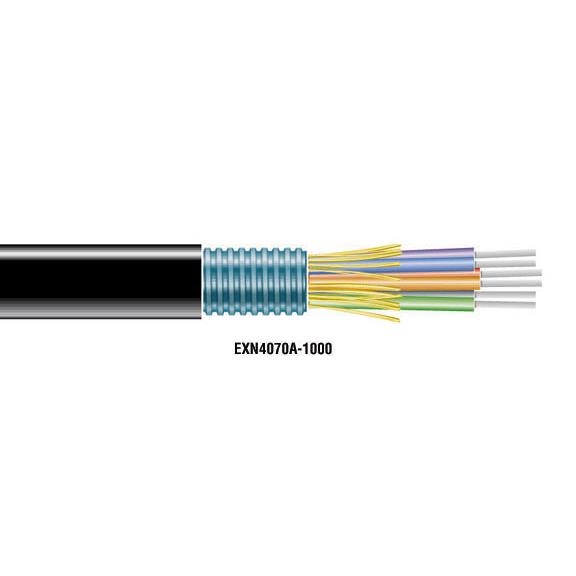

  • Construction consists of: outer jacket, armor, inner jacket, water-blocking aramid yarn, strength member, gel-filled buffer tubes, dry block tape, and ripcords.
  • Core is surrounded by an aramid yarn layer and jacketed with medium-density PVC.
  • Can be used in direct burial, aerial, and duct installations.
  • Steel armor conduit and steel strength members enable this cable to be buried safely.
  • Special formulation jackets stand up to extremes of temperature, burial pressure, and sunlight.
  • Cables use dry-block technology to seal ruptures against moisture seepage, and gel-filled buffer tubes to halt moisture migration.


  • Technical Specifications for Armored Loose-Tube Outside-Plant Fiber Optic Bulk Cable, 1000-ft. (304.8-m):

    Attenuation (Maximum) 3.5/1.0 dB/km at 850/1300 nm
    Bandwidth (Minimum) 160/500 MHz-km at 850/1300 nm
    Crush Resistance 55 lb. per inch for 10 minutes
    Fiber Type Multimode, 62.5/125 µm
    Jacket Type Outdoor-rated PVC (Arid Core Standard)
    Outer Diameter 6-fiber: 0.56" (14.2 mm)
    NOTE: Higher fiber count and custom lengths available—contact our FREE Tech Support.

    NOTE: Minimum order for custom lengths is 3280 feet (1000 m). Cable is shipped in large protective reels. Cable and spools can weigh more than 100 pounds (45.4 kg).

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Connect your Armored Loose-Tube Outside-Plant Fiber Optic Bulk Cable, 1000-ft. (304.8-m) with:
