Cabinets & Racks > Remote Monitoring

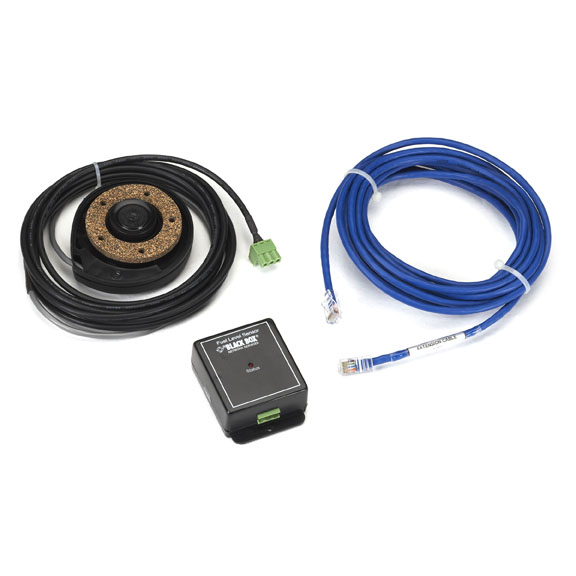

click photo to enlarge

EME1FL-015

Photo may show similar product

Other views

AlertWerks Ultrasonic Fuel Level Sensor

Don't run out—monitor levels of fuel or other liquids.

EME1FL-015

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Monitors liquid levels in a tank.
  • Designed for use with AlertWerks ServSensor hubs.
  • Suitable for many kinds of liquids including water, diesel, gasoline, and waste.
  • Works with many different tank sizes and shapes with programmable tank dimensions.
  • Normal, low, and critical alerting.
  • Low-profile design with industry standard SAE-5 stud mounting pattern.


    • Description

    AlertWerks Ultrasonic Fuel Level Sensor


    Quick Facts

  • Monitors liquid levels in a tank.
  • Designed for use with AlertWerks ServSensor hubs.
  • Suitable for many kinds of liquids including water, diesel, gasoline, and waste.
  • Works with many different tank sizes and shapes with programmable tank dimensions.
  • Normal, low, and critical alerting.
  • Low-profile design with industry standard SAE-5 stud mounting pattern.

    • Further Details

    The AlertWerks Ultrasonic Fuel Level Sensor is ideal for use wherever tank levels are critical. For instance, you can use it to monitor fuel levels in remote sites that depend on backup generator power, alerting you if fuel levels fall from use, leaks, or theft. The sensor can be used to monitor other fluids such as oil or gray water, as well. The sensor supports both metal and plastic tanks with tank wall thicknesses up to 6 mm—or larger if a spacer is used and the top limit is adjusted. The sensor has a low profile of less than an inch (only 2 cm) once mounted and has an industry-standard SAE-5 stud mounting pattern with gasket seal and washers.


    Technical Specifications for AlertWerks Ultrasonic Fuel Level Sensor :

    Environmental — Operating temperature: 39.2 to 149° F (4 to 65° C)
    Tank Depth — 0–78.7" (0–200 cm);
    Maximum depth:
    Gasoline: 43.3" (110 cm);
    Water: 78.7" (200 cm);
    Diesel: 78.7" (200 cm)
    Connectors — (1) RJ-45 network;
    (2) RJ-45 sensor;
    (1) 7.5 VDC Power
    Indicators — LEDs: (1) Status
    Power — 100–240 VAC, 50/60 Hz, 0.4A external power supply;
    Output: 12 VDC, 500 mA;
    Current draw: 25 mA


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for AlertWerks Ultrasonic Fuel Level Sensor :


    Connect your AlertWerks Ultrasonic Fuel Level Sensor with:

    Accessory: EME134A-R2

    AlertWerks ServSensor V4E Hub

    AlertWerks ServSensor V4E Hub

    » more info

    Accessory: EME102A

    AlertWerks ServSensor Junior, 2-Port, No Sensor

    AlertWerks ServSensor Junior, 2-Port, No Sensor

    » more info

    Accessory: EME108A

    AlertWerks ServSensor, 8-Port, No Sensor

    AlertWerks ServSensor, 8-Port, No Sensor

    » more info

    Accessory: EME111A-60

    AlertWerks ServSensor Contact, 8-Port, 60 Dry Contacts, No Sensor

    AlertWerks ServSensor Contact, 8-Port, 60 Dry Contacts, No Sensor

    » more info

    Accessory: EME152A

    AlertWerks ServSensor Jr. with PoE, 2-Port, No Sensors

    AlertWerks ServSensor Jr. with PoE, 2-Port, No Sensors

    » more info
