EME1CT200

Photo may show similar product

Other views

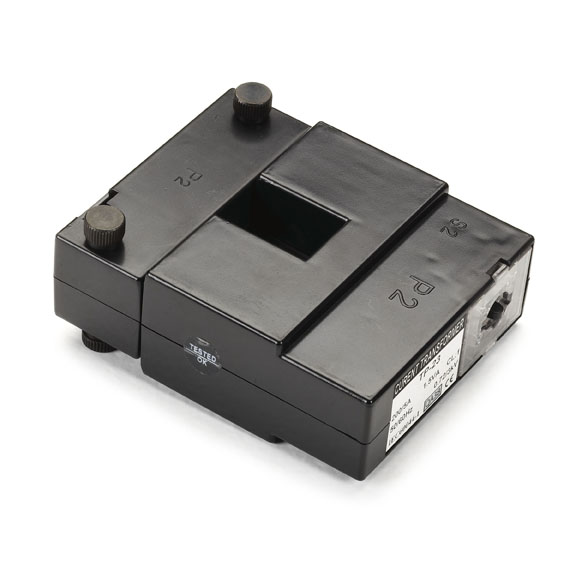

AlertWerks Split-Core Current Transformer, 200/5A

Monitor a power supply without interrupting the power.

EME1CT200

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • This transformer can be opened and installed around a power line without disconnecting the power supply.
  • Use with the the Power Monitor Sensor (EMEPMS1, EMEPMS2, EMEPMS3) for connection to an AlertWerks ServSensor hub.
  • Generous inner opening accommodates larger cables.
  • Easily mounted with included hardware.

  • Description

    AlertWerks Split-Core Current Transformer, 200/5A


    Quick Facts

  • This transformer can be opened and installed around a power line without disconnecting the power supply.
  • Use with the the Power Monitor Sensor (EMEPMS1, EMEPMS2, EMEPMS3) for connection to an AlertWerks ServSensor hub.
  • Generous inner opening accommodates larger cables.
  • Easily mounted with included hardware.

  • Further Details



    Technical Specifications for AlertWerks Split-Core Current Transformer, 200/5A:

    Approvals IEC44-1, BS7626, CE
    Class 0.5, 1.0, 3.0
    Frequency 50/60 Hz
    Primary Current 200A
    Rated Load 1VA-30VA
    Rated Security Coefficient FS<5
    Secondary Current 5A
    Short-Time Thermal Current lth=100xln
    Voltage (Maximum) 0.72/3Kv
    Size 4.4"H x 3.5"W x 1.6"D (11.1 x 8.9 x 4 cm, not including mounting ears; Interior opening: 1.2"H x 0.8"W (3 x 2 cm)
    Weight 1.7 lb. (0.75 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for AlertWerks Split-Core Current Transformer, 200/5A:


    Connect your AlertWerks Split-Core Current Transformer, 200/5A with:

    Accessory: EME1PMS2

    AlertWerks Power Monitor Sensor, Single-Phase, 220–240V, 50 Hz

    AlertWerks Power Monitor Sensor, Single-Phase, 220–240V, 50 Hz

    Accessory: EME1PMS3

    AlertWerks Power Monitor Sensor, Three-Phase, 100–500V, 60 Hz

    AlertWerks Power Monitor Sensor, Three-Phase, 100–500V, 60 Hz
