EME149D-60

Photo may show similar product

Other views

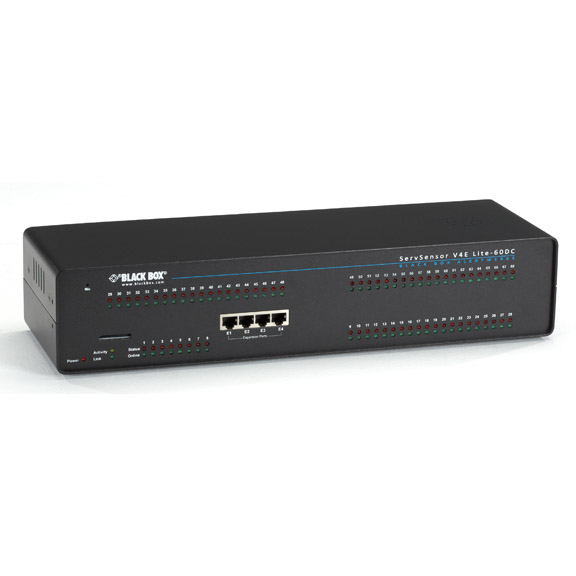

AlertWerks ServSensor V4EL, 8-Port, 60 Dry-Contact Inputs, DC-Powered

Real-time, extensive environmental monitoring and alerting system.

EME149D-60

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • Supports up to eight plug-and-play AlertWerks Intelligent Sensors.
  • Dry contact inputs support third-party sensors.
  • Includes a combination temperature/humidity sensor.
  • Notifies you of alarms in a variety of ways, including e-mail, SNMP, and text messages.


  • Description

    AlertWerks™ ServSensor V4EL, 8-Port, 60 Dry-Contact Inputs, DC-Powered


    Quick Facts

  • Supports up to eight plug-and-play AlertWerks Intelligent Sensors.
  • Dry contact inputs support third-party sensors.
  • Includes a combination temperature/humidity sensor.
  • Notifies you of alarms in a variety of ways, including e-mail, SNMP, and text messages.

  • Further Details

  • Can be daisychained to expansion hubs, increasing the total sensor count to more than 500.
  • Can monitor up to 80 SNMP devices.
  • Monitors external devices via SNMP or IP "ping."
  • Manageable through an easy-to-use Web interface.
  • Full SNMP v1, v2, and v3 compliance.

  • Plug-and-play sensor integration
    The AlertWerks ServSensor V4EL with 60 Dry-Contact Inputs enables you to integrate multiple types of environmental sensors into one seamless remote monitoring system that watches over your premises. Each ServSensor supports up to eight AlertWerks Intelligent Sensors. Sensors automatically configure and go on-line, ready to report any status change. Choose from a wide variety of sensors, including water, airflow, motion, and voltage. Additionally, the V4EL has 60 integral dry-contact inputs so you can also use third-party sensors.

    Easy-to-use Web interface.
    The ServSersor hub gathers and displays sensor data in an easy-to-use, Web-based user interface, automatically generating day, week, month, and year graphs for each sensor. The data can be downloaded for external processing or remotely polled and saved automatically to a PC.

    Notification Wizard.
    The Notification Wizard enables the hub to notify you of changes in sensor status in real time. Configure each notification by choosing a sensor, selecting the alarm condition, and defining what to do when the alarm is triggered. You can choose to be notified in a variety of ways: audible alarm, SNMP trap, e-mail, text message to your phone, or fax.

    For instance, you can have the system e-mail you if the temperature in your data center goes over 75° and send you a text message if the temperature continues to climb and goes over 80°.

    You control the number of events.
    To prevent false alarms, AlertWerks allows extensive filtering of events. You can limit events based on the time of day or the day of the week. You can also limit the number of alerts per hour, so that you are not swamped with messages. This is especially important with a sensor like the motion detector where you may want to process an event only after hours.

    Auto shutdown.
    You can have Linux® devices automatically send a shutdown message to your Linux or Windows® based servers—so if there is a power outage, for example, you can rest assured that your servers will be safely and automatically shut down before your UPS runs out.


    Technical Specifications for AlertWerks ServSensor V4EL, 8-Port, 60 Dry-Contact Inputs, DC-Powered:

    Audio Sampling Rate: 8 kHz
    Configuration Via Web browser (HTTP / HTTPS)
    Encryption SSL 128 bit (HTTPS), SNMPv3
    Environmental Temperature: -31 to +131° F (-35 to +55° C);
    Humidity: 20 to 80%, noncondensing;
    Altitude: 0 to 9842 ft. (0 to 3000 m)
    Memory 64 MB SDRAM, 128 MB NVRAM
    Operating System Embedded Linux®
    Processor 32-bit Xscale PXA270, 312 MHz
    Protocols Supported (Client) DHCP, DNS, SMTP, (S) NTP, SNMP
    CE Approval Yes
    Connectors (8) RJ-45 sensor, (3) 3.5-mm audio jacks, (1) USB Type A, (1) RJ-45 10BASE-T/100BASE-TX Ethernet, (1) DB9 M RS-232/V.24 console port, (1) 2-pin RS-485, (60) 2-pin dry contacts, (4) RJ-45 expansion ports
    Indicators (1) Power, (1) Link, (1) Activity, (8) Status, (8) Online, (60) Status, (60) Online
    Power Internal DC power supply
    Size 3.5"H x 18"W x 5.43"D (8.9 x 45.2 x 13.8 cm)
    Weight 6.83 lb. (3.1 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for AlertWerks ServSensor V4EL, 8-Port, 60 Dry-Contact Inputs, DC-Powered:

    Manuals

    • AlertWerks%X99 ServSensor V4EL User Manual
      User Manual for the EME149A-20, EME149A-60, EME149D-20, and EME149D-60 (Version 1)
