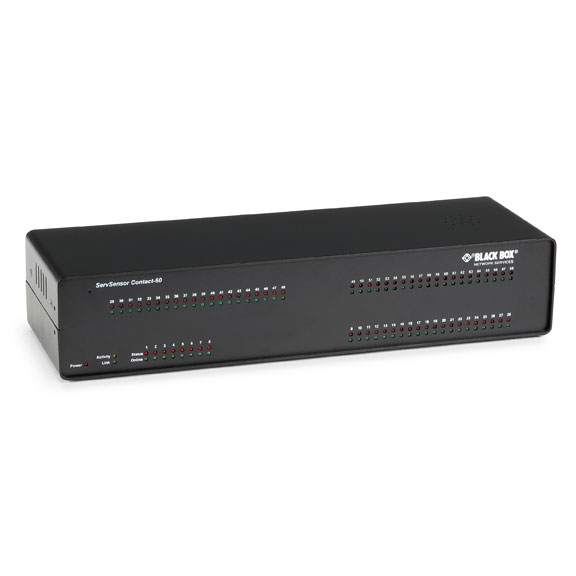

AlertWerks ServSensor Contact, 8-Port, 60 Dry Contacts, with Temperature Sensor

Safeguard equipment and devices that use dry contact outputs to send alarm signals.

EME112A-60

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Functions as a central hub for your AlertWerks Intelligent Sensors.
  • Features 8 autosensing RJ-45 ports for connecting AlertWerks Intelligent Sensors and 60 dry contacts to support third-party sensors.
  • Includes a temperature sensor.


  • Description

    AlertWerks ServSensor Contact, 8-Port, 60 Dry Contacts, with Temperature Sensor


    Quick Facts

  • Functions as a central hub for your AlertWerks Intelligent Sensors.
  • Features 8 autosensing RJ-45 ports for connecting AlertWerks Intelligent Sensors and 60 dry contacts to support third-party sensors.
  • Includes a temperature sensor.

  • Further Details

  • Adaptable to a wide range of devices, such as UPSs, other remote monitoring systems, and building management systems.
  • Supports customized sensors for conditions like motion, gas, and sound.

  • The brains of your environmental monitoring system
    The AlertWerks ServSensor Contact is the central hub of the AlertWerks environmental monitoring system. Connect it to your network, attach AlertWerks Intelligent Sensors and dry-contact sensors, and you're ready to remotely view the status of your data centers and other facilities. Check for temperature, humidity, and liquids. Know when server cabinet doors are open or closed and whether the cabinet is overheating. Use it for remote monitoring and management of a wide range of devices such as HVAC systems, security equipment, UPSs, generators, and industrial equipment.

    Use the AlertWerks ServSensor Contact with equipment and devices that use dry contact outputs to send alarm signals. This hub comes with eight autosensing RJ-45 ports for connecting any of the AlertWerks Intelligent Sensors (see Related Items) plus 60 additional 2-wire, dry-contact ports, and a temperature sensor. Dry-contact ports enable you to make your own dry-contact cables quickly and easily. A ServSensor Contact with 20 dry-contact ports and a temperature sensor (EME112A-20) is also available.

    The ServSensor Contact is rackmountable on standard 19" rails and includes rackmount ears.

    A clever hub
    The ServSensor Contact is smart. Its embedded Web server enables you to use a standard Web browser to view sensor status over any IP network—even the Internet. Check out the status of your data center from your office, from home, or from the road.

    It's fully SNMP manageable, so you can integrate it easily into any SNMP-managed network and monitor it through standard SNMP software such as HP® OpenView®.

    The built-in database maintains a time-stamped log of all events, so you can go back to see what happened and when it happened. The integrated data collection and graphing package is especially useful in spotting trends in security, detection of AC power line voltage, measurement of DC voltage, and control relays, and for providing historical information for analysis.

    Active alarming
    In addition to enabling you to passively monitor sensors, the AlertWerks ServSensor Contact actively alerts you when sensors exceed limits you determine. It can send alerts via SNMP or by e-mail.

    Nice and easy
    The ServSensor Contact installs in minutes. Simply assign an IP address and connect to the embedded Web server. Plug in any of our Intelligent Sensors or dry-contact sensors and the ServSensor's autosensing feature will recognize the type and automatically configure it. Just call to get started
    For help planning your complete AlertWerks environmental monitoring system, call our FREE Tech Support. Our experts can help you decide how many hubs and sensors you need to meet your monitoring needs.


    Technical Specifications for AlertWerks ServSensor Contact, 8-Port, 60 Dry Contacts, with Temperature Sensor:

    Configuration Software utility for IP setup, then over Web browser
    Environmental Temperature: -31 to 131° F (-35 to 55° C);
    Humidity: 20 to 80%, noncondensing
    Monitoring and Alarms Via Web browser, e-mail, SNMP trap
    Protocols Supported (Client) DHCP, DNS, SMTP, (S) NTP, NMPv1
    Security User/administrator password-protected login
    Connectors (8) RJ-45 sensor ports, (60) dry contacts, (1) RJ-45 10BASE-T Ethernet port
    Indicators (1) Power On; (1) Link; (1) Activity; (8) Status, (8) Online; Per dry contact input: (1) Status, (1) Online
    Power 100-240 VAC, 50-60 Hz autosensing external power supply
    Size 1.7"H x 18"W x 5"D (4.2 x 45.7 x 12.7 cm)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for AlertWerks ServSensor Contact, 8-Port, 60 Dry Contacts, with Temperature Sensor:


    Connect your AlertWerks ServSensor Contact, 8-Port, 60 Dry Contacts, with Temperature Sensor with:

    Accessory: EME1A1-005

    AlertWerks AC Voltage Sensor

    AlertWerks AC Voltage Sensor

    Accessory: EME1C1-005

    AlertWerks 4-20 mA Converter

    AlertWerks 4-20 mA Converter

    Accessory: EME1K1-015

    AlertWerks Dry-Contact Sensor, 15-ft. Cable

    AlertWerks Dry-Contact Sensor, 15-ft. Cable

    Accessory: EME1M1-005-R2

    AlertWerks Motion Detection Sensor

    AlertWerks Motion Detection Sensor

    Accessory: EME1SS-005

    AlertWerks Siren and Strobe Light

    AlertWerks Siren and Strobe Light
