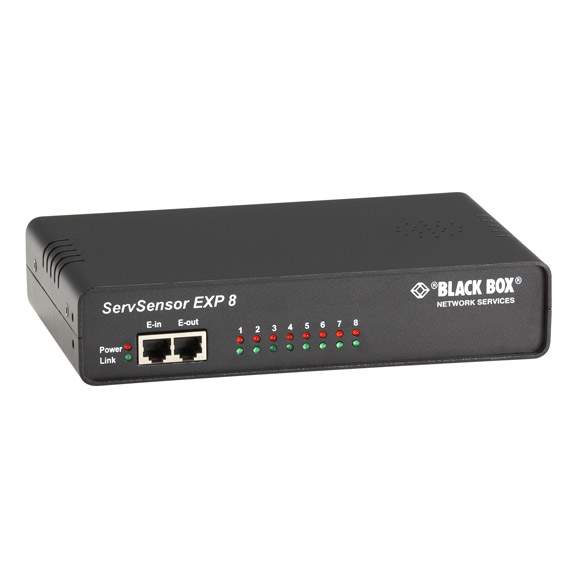

AlertWerks Sensor Expansion Hub

Provides eight additional ports for Intelligent Sensors for the AlertWerks II ServSensor V4E Hub.

EME1X8

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • Add up to eight Intelligent Sensors to the AlertWerks II ServSensor V4E Hub, even if you don't have available ports.


  • Description

    AlertWerks Sensor Expansion Hub


    Quick Facts

  • Add up to eight Intelligent Sensors to the AlertWerks II ServSensor V4E Hub, even if you don't have available ports.

  • Further Details

    The AlertWerks Sensor Expansion Hub enables you to use the four expansion ports on the front of the ServSensor V4E to add even more ports. The ServSensor EXP8 (EME1X8) provides additional ports for eight Intelligent Sensors. Also available is the EXPDC16 (EME1DC16) which provides 16 dry contacts. (These units only work with the V4E ServSensor Hub.)

    The AlertWerks II ServSensor V4E enables you to integrate environmental sensors and surveillance cameras into one seamless remote monitoring system that watches over your premises. Use it to monitor data centers, offices, or anywhere it's important to keep an eye on conditions on the ground.

    Plug-and-play sensor integration.
    Plug up to eight AlertWerks II Intelligent Sensors into the RJ-45 ports of the ServSensor V4E. Sensors automatically configure and go on-line, ready to report any status change. Choose from a wide variety of sensors, including temperature, humidity, water, airflow, motion, and voltage.

    Video surveillance.
    The ServSensor V4E supports up to four AlertWerks II PT Dome Cameras. You can also use it with a wide range of analog cameras — your existing security cameras, sophisticated night-vision cameras, outdoor cameras, or low-cost CCTV cameras. The ServSensor V4E supports video of up to 640 x 480 dpi from up to four cameras. Set it to scan between cameras or show all cameras at once. It has enough memory to store up to 2320 pictures.

    A built-in 4-port Pelco-D-compatible pan/tilt controller eliminates the need for expensive additional controllers and enables you to move and zoom cameras from the Web interface. See and organize data from the graphical interface.

    The ServSensor V4E gathers and displays sensor data in its easy-to-use, Web-based user interface. It automatically generates day, week, month, and year graphs for each sensor. The data can be downloaded in a text file for external processing or remotely polled and saved automatically to a PC.

    Notification Wizard.
    The Notification Wizard enables the ServSensor V4E to notify you of changes in sensor status in real time. Configure each notification by choosing a sensor, selecting the alarm condition, and defining what to do when the alarm is triggered. You can choose to be notified in a variety of ways: audible alarm, SNMP trap, e-mail, e-mail with attached picture, text message to your phone, or fax.

    For instance, you can have the ServSensor V4E text you when it detects that the door of a server cabinet is opened or e-mail everyone on your IT staff whenever the temperature in your data center goes over 86° F (30° C).

    False message filter.
    To prevent false alarms, AlertWerks allows extensive filtering of events. You can limit events based on the time of day or the day of the week. You can also limit the number of alerts per hour, so that you are not swamped with messages.

    This is especially important with a sensor like the motion detector where you may want to process an event after hours.

    Automatically shut down your equipment in an emergency.
    You can have Linux® devices automatically send a shutdown message to your Linux or Windows® based servers—so if there is a power outage, for example, you can rest assured that your servers will be safely and automatically shut down before your UPS runs out.
    This product works with:
  • AlertWerks II ServSensor V4E Hub (EME134A)
  • AlertWerks II Intelligent Sensors (EME1T1-001, etc.)
  • AlertWerks II PT Dome Cameras (SCA201)
  • Questions? Contact our FREE Tech Support.


    Technical Specifications for AlertWerks Sensor Expansion Hub:

    This product works with:
  • AlertWerks II ServSensor V4E Hub (EME134A)
  • AlertWerks II Intelligent Sensors (EME1T1-001, etc.)
  • AlertWerks II PT Dome Cameras (SCA201)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for AlertWerks Sensor Expansion Hub:

    Manuals

    • AlertWerks Sensor Expansion Hub Manual
      Manual for the EME1X8.

    Visio Stencils

    • Visio Stencil
      Stencil Drawings

    Videos


    Connect your AlertWerks Sensor Expansion Hub with:

    Accessory: EME1T1-001

    AlertWerks Temperature Sensor, Standard

    AlertWerks Temperature Sensor, Standard

    Accessory: EME1TH1-001

    AlertWerks Dual Temperature Humidity Sensor, Standard

    AlertWerks Dual Temperature Humidity Sensor, Standard

    Accessory: EME1W1-015

    AlertWerks Water Sensor, 15-ft. Cable

    AlertWerks Water Sensor, 15-ft. Cable

    Accessory: EME1Y1-015

    AlertWerks Security Sensor/Contact, 15-ft. Cable

    AlertWerks Security Sensor/Contact, 15-ft. Cable

    Accessory: EME1K1-015

    AlertWerks Dry-Contact Sensor, 15-ft. Cable

    AlertWerks Dry-Contact Sensor, 15-ft. Cable

    Accessory: EME1A1-005

    AlertWerks AC Voltage Sensor

    AlertWerks AC Voltage Sensor

    Accessory: EME1SS-005

    AlertWerks Siren and Strobe Light

    AlertWerks Siren and Strobe Light

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A warranty is included.

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most of our products come with a one- or two-year warranty. Some products—such as copper cables, manual switches, cabinets, and racks—are even guaranteed for life!

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product* for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! ?
    Tech Support Hotline 100% FREE! $$$

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    AlertWerks Dry Contact Expansion Hub EME1DC16 $320.95

    You can find this product in the following subcategory(s)


    Add to Cart

    Price: $320.95

    Quantity Available: 4

    Quantity

    Warranty

    Total

    Shipping Info

    In Stock - orders received before 5PM ET ship same day

    Weight: 3.281 lbs.
    HxWxD: 3.25 x 9.25 x 10 in.
