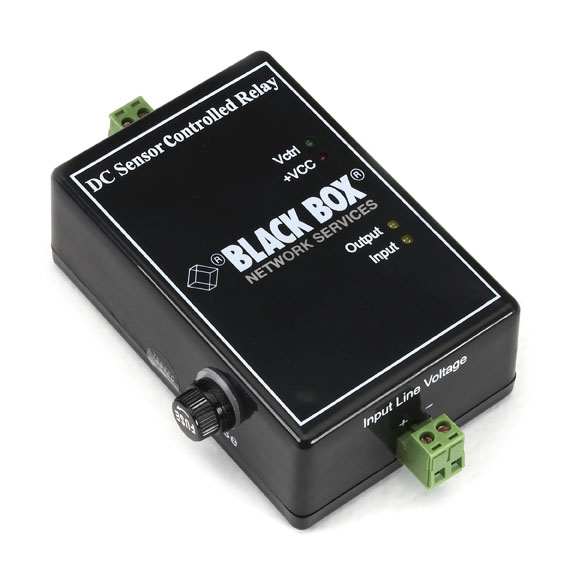

AlertWerks Power Switch, 48 VDC, Normally Open

Control power to remote devices over the Internet.

EME1PDCO-005

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • Controls electric power over the Internet or other IP network.
  • Works with AlertWerks ServSensor hubs.
  • Normally in the open (on) position, switched off by a control signal from the sensor hub.
  • Metal oxide varistors and snubber circuits provide protection from electrical disturbance.
  • Monitors power and load.
  • Disconnect alarm sends a signal back to the sensor hub if the unit is unplugged.
  • Includes a 5-ft. (1.5-m) CAT5 cable, which can be replaced with up to 100 feet of CAT5 for longer distances.


  • Description

    AlertWerks Power Switch, 48 VDC, Normally Open


    Quick Facts

  • Controls electric power over the Internet or other IP network.
  • Works with AlertWerks ServSensor hubs.
  • Normally in the open (on) position, switched off by a control signal from the sensor hub.
  • Metal oxide varistors and snubber circuits provide protection from electrical disturbance.
  • Monitors power and load.
  • Disconnect alarm sends a signal back to the sensor hub if the unit is unplugged.
  • Includes a 5-ft. (1.5-m) CAT5 cable, which can be replaced with up to 100 feet of CAT5 for longer distances.

  • Further Details



    Technical Specifications for AlertWerks Power Switch, 48 VDC, Normally Open:

    Fuse 10 Amps, 250 VDC
    Operating Temperature -40 to +185° F (-40 to +85° C)
    Switching Capacity (Maximum) 4000VA, 480W with resistive load; 2000VA, 240W with inductive load (PF = 0.4)
    Connectors (1) RJ-45;
    (2) 2-position terminal blocks
    Indicators LEDs: Relay, Power Supply, DC Line Voltage, DC Load Voltage
    Power Maximum input voltage: 48 VDC; Maximum output voltage: 48 VDC;
    Carry current: 10 Amps;
    Maximum operating voltage: 380 VAC, 48 VDC;
    Maximum operating current: 10 Amps;
    Minimum permissible load: 100 mA 5 VDC;
    Power consumption: Typical 471.00 mWatt, 94.20 mA
    Size 3.1"H x 4.5"W x 1.6"D (8 x 11.5 x 4 cm)
    Weight 0.55 lb. (0.25 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for AlertWerks Power Switch, 48 VDC, Normally Open:


    Connect your AlertWerks Power Switch, 48 VDC, Normally Open with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A warranty is included.

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most of our products come with a one- or two-year warranty. Some products—such as copper cables, manual switches, cabinets, and racks—are even guaranteed for life!

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product* for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! ?
    Tech Support Hotline 100% FREE! $$$

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.
