Cabinets & Racks > Remote Monitoring

click photo to enlarge

SCA201

Photo may show similar product

Other views

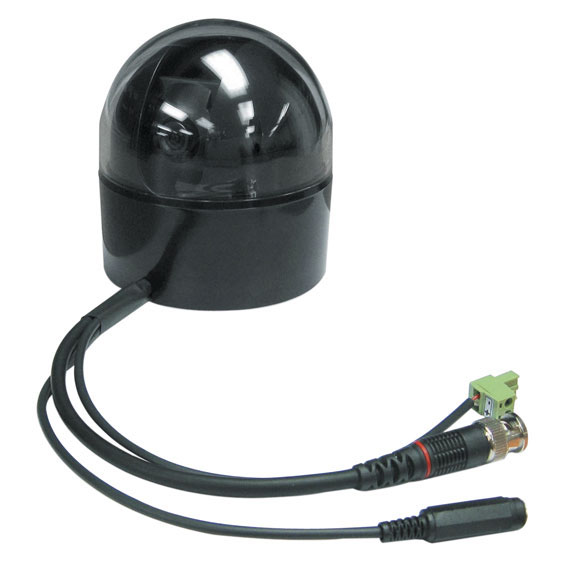

AlertWerks PT Dome Camera

High-resolution pan/tilt dome camera for environmental monitoring.

SCA201


Lifetime Warranty

Product Highlights

  • High-resolution 1/3" Sony™ CCD camera.
  • Add video capabilities to the AlertWerks™ ServSensor V4P.
  • Enables you to monitor your infrastructure from anywhere in the world.
  • Remote pan and tilt for use with the AlertWerks ServSensor V4P hubs.

  • Description

    AlertWerks PT Dome Camera


    Quick Facts

  • High-resolution 1/3" Sony™ CCD camera.
  • Add video capabilities to the AlertWerks™ ServSensor V4P.
  • Enables you to monitor your infrastructure from anywhere in the world.
  • Remote pan and tilt for use with the AlertWerks ServSensor V4P hubs.

  • Further Details

  • Clear, sharp pictures, even in low light conditions.
  • Features Auto White Balance (AWB).
  • Horizontal resolution of 640 pixels.
  • A precision, custom-designed stepper motor moves the camera over 330° (pan) and 80° (tilt) and can be controlled by the ServSensor V4P via its Web interface.
  • The RS-485 interface enables extended distances between the camera and the unit.

  • What’s included:
  • Pan/tilt dome camera
  • Power supply (100–240 VAC, 50/60 Hz)
  • 15-ft. (4.5-m) male/male RG-59 BNC cable
  • Female/female BNC adapter

  • This product works with:
  • AlertWerks ServSensor V4E Hub (EME134A)
  • AlertWerks ServSensor V4P Hub with 20 Dry-Contact Inputs (EME129A-20)
  • Questions? Contact our FREE Tech Support.


    Technical Specifications for AlertWerks PT Dome Camera:

    Engine — Image sensor: Type: 1/3" interline CCD;
    Minimum illumination: 0.5 Lux / F1.2;
    Picture elements: 640(H) x 480(V);
    S/N ratio: 45 dB or more (AGC off)
    Environmental — Temperature: 32 to 104° F (0 to 40° C);
    Humidity: 10–80% relative humidity, noncondensing
    Opticals — Lens type: fixed;
    Focal length: 3.6 mm;
    Viewing angle: 92°;
    Features: auto white balance, electronic iris 1/50 to 1/100,000 (NTSC)
    P/T: Pan movement: 0 to 330°
    Tilt movement: 0 to 80°
    Video Standard — NTSC
    Connectors — (1) BNC M video Composite, (1) pan/tilt terminal block, (1) power input
    Power — 9-VDC external power supply
    Size — 4.2"H x 4.5"W (10.7 x 11.5 cm)
    Weight — 1.1 lb. (0.5 kg)

    This product works with:
  • AlertWerks ServSensor V4E Hub (EME134A)
  • AlertWerks ServSensor V4P Hub with 20 Dry-Contact Inputs (EME129A-20)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
