Cabinets & Racks > Remote Monitoring

click photo to enlarge

EME109A

Photo may show similar product

Other views

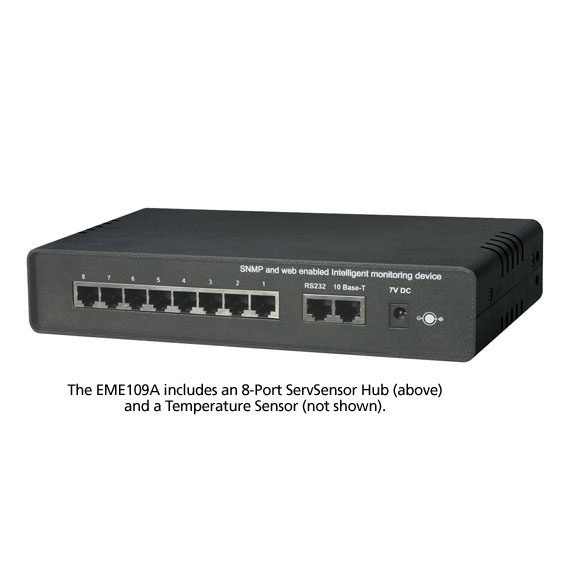

AlertWerks ServSensor, 8-Port, (1) Temperature Sensor (Kit)

Safeguard your infrastructure and resources with this affordable monitoring hub.

EME109A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Functions as a central hub for your AlertWerks Intelligent Sensors.
  • Hub features eight RJ-45 ports.
  • (1) AlertWerks Intelligent Sensor, Temperature Sensor (EME1T1-001) included.

  • Description

    AlertWerks ServSensor, 8-Port, (1) Temperature Sensor (Kit)


    Quick Facts

  • Functions as a central hub for your AlertWerks Intelligent Sensors.
  • Hub features eight RJ-45 ports.
  • (1) AlertWerks Intelligent Sensor, Temperature Sensor (EME1T1-001) included.

  • Further Details

  • Works with a wide range of sensors: temperature, humidity, water, airflow, smoke, motion, security, dry contact, and AC and DC voltages.
  • Java™ based Web user interface enables you to access the hub over any IP network—even the Internet.
  • Sends alerts through SNMP or e-mail.


  • The brains of your environmental monitoring system
    The AlertWerks ServSensor is the central hub of the AlertWerks environmental monitoring system. Connect it to your network, attach AlertWerks Intelligent Sensors, and you’re ready to remotely view the status of your data centers and other facilities. Check for temperature, humidity, and liquids. Know when server cabinet doors are open or closed and whether the cabinet is overheating. Use it for remote monitoring and management of a wide range of devices such as HVAC systems, security equipment, UPSs, generators, and industrial equipment.

    Wide range of sensors
    The ServSensor features eight autosensing RJ-45 ports for connecting any of the AlertWerks Intelligent Sensors in any combination to monitor temperature, humidity, water leakage, airflow, and more. For details, see Related Items.

    The ServSensor is available with no included sensors (EME108A), or as a kit with an AlertWerks Dual Temperature Humidity Sensor (EME110A).

    A clever hub
    The ServSensor is smart. Its embedded Web server enables you to use a standard Web browser to view sensor status over any IP network—even the Internet. Check out the status of your data center from your office, from home, or from the road.

    It’s fully SNMP manageable, so you can integrate it easily into any SNMP-managed network and monitor it through standard SNMP software such as HP® OpenView®.

    The built-in database maintains a time-stamped log of all events, so you can go back to see what happened and when it happened. The integrated data collection and graphing package is especially useful in spotting trends in security, detection of AC power line voltage, measurement of DC voltage, and control relays, and for providing historical information for analysis.

    Active alarming
    In addition to enabling you to passively monitor sensors, the AlertWerks ServSensor actively alerts you when sensors exceed limits you determine. It can send alerts via SNMP or by e-mail.

    Nice and easy
    The ServSensor installs in minutes. Simply assign an IP address and connect to the embedded Web server. Plug in any of our Intelligent Sensors and the ServSensor’s autosensing feature will recognize the type and automatically configure it. Just call to get started
    For help planning your complete AlertWerks environmental monitoring system, call our FREE Tech Support. Our experts can help you decide how many hubs and sensors you need to meet your monitoring needs.


    Technical Specifications for AlertWerks ServSensor, 8-Port, (1) Temperature Sensor (Kit):

    Configuration — Software utility for IP setup, then over Web browser
    Environmental — Temperature: -31 to +131º F (-35 to +55º C);
    Humidity: 20 to 80% noncondensing
    Monitoring and Alarms — Via Web browser, e-mail, SNMP trap
    Security — User/administrator password-protected login
    Connectors — (8) RJ-45 sensor ports, (1) 10BASE-T Ethernet port
    Indicators — (1) Power On; (1) Link; (1) Activity; (8) Status; (8) Online
    Power — 100–240 VAC, 50–60 Hz autosensing external power supply
    Size — 1.8"H x 9.2"W x 5.4"D (4.6 x 23.4 x 13.8 cm)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
