Networking > Wireless

click photo to enlarge

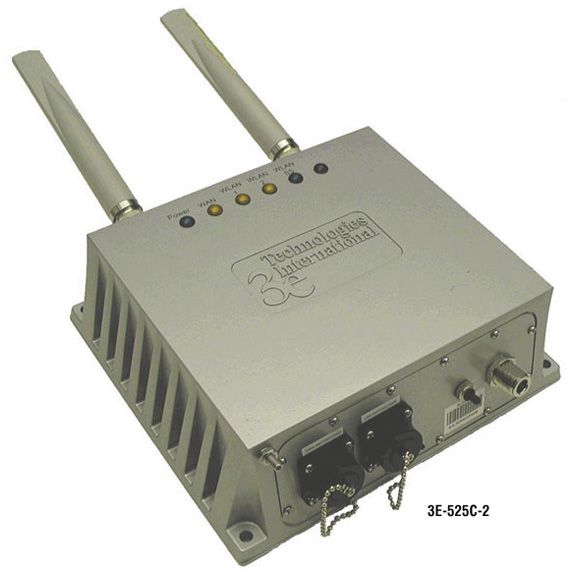

3E-525C-3

Photo may show similar product

Other views

AirGuard 525C-3 Wireless Access Points

Self-configuring, self-healing wireless mesh network supports up to 40 nodes and is rated for use outdoors.

3E-525C-3


One year Warranty

Product Highlights

  • Dual radio mesh networking for as many as 40 nodes.
  • 64-, 128-, and 152-bit encryption.
  • Outdoor rated.
  • 802.11a/b/g wireless with 108-Mbps Super G and Turbo A data rates.
  • Variable power control via RF management.
  • Rugged IP 66 enclosure.

  • Description

    AirGuard Outdoor Wireless Access Points with Mesh Networking, Access Point with VLAN


    Quick Facts

  • Dual radio mesh networking for as many as 40 nodes.
  • 64-, 128-, and 152-bit encryption.
  • Outdoor rated.
  • 802.11a/b/g wireless with 108-Mbps Super G and Turbo A data rates.
  • Variable power control via RF management.
  • Rugged IP 66 enclosure.

  • Further Details

  • The models with 802.1Q VLAN enable multiple service types (SSIDs) over common networks.
  • Support DHCP, NAT, WPA, and WPA2/802.11i.
  • Power over Ethernet enabled.

  • Use AirGuard Wireless Access Points to build a self-configuring, self-healing mesh wireless network with up to 40 nodes.

    Each access point works as a point-to-point or multipoint access point, a gateway, a mesh network access point, or a bridge/repeater. In point-to-point or multipoint access point mode or gateway mode, each unit can establish links to laptops, PDAs, and other wireless devices at rates from 11 to 54 Mbps. In mesh networking, bridging, or repeater applications, Turbo A and Super G modes support speeds up to 108 Mbps.

    These access points use 64-, 128-, and 152-bit WEP encryption on the access band and very secure AES for bridging applications. They also detect rogue access points to protect your network from unauthorized access. If you require a higher level of encryption to meet FIPS 140-2 standards, see our AirGuard 525A-3 Wireless Access Points in “Related Products” on the previous screen.

    Managing the access points is easy with a GUI Web interface that enables you to use a Web browser to add or drop users from the network.

    Power over Ethernet enables you to install these access points even where there are no convenient power outlets—power is supplied over the UTP Ethernet cable.

    AirGuard Outdoor Access Points feature construction rugged enough to use outdoors with a range of 1400 feet, unboosted. You can also use them indoors.

    Models with VLAN feature 802.1Q compatible VLAN to enable the use of multiple service types (SSIDs) over common networks.

    What's included:
    • Access point
    • Mounting kit
    • 24 watt, 48-VAC PoE injector
    • (2) tri-band 3-dBi omnidirectional antennas
    • 15-m RJ-45 CAT5 cable with watertight connector
    • Bridge cable (Reverse N to N)
    • Ground cable
    • CD manual


    Technical Specifications for AirGuard 525C-3 Wireless Access Points:

    Channels — Fixed or automatic channel selection
    Operating Environment — Standard: 23 to 122° F (-5 to +50° C);
    with TEC option: -22 to +158° F (-30 to +70° C)
    Operation Modes — Mesh, access point, gateway, bridging/repeater
    Radio Frequencies — 802.11a/b/g, Turbo A, Super G
    Security — All: WEP (64-/128-/152-bit); WPA/WPA2-PSK; WPA/WPA2-802.1x dynamic key; WPA2/802.11i; AES-CCMP;
    SSID: Enable/disable broadcast;
    MAC address filtering;
    Rogue wireless access point detection with e-mail notification;
    3E525C-3, 3E525C-3W/TEC also have: 802.1Q VLAN (multiple SSIDs)
    Wireless Activity Monitoring — MAC address listing; signal strength
    Connectors — (1) 10/100 RJ-45 WAN, (1) 10/100 RJ-45 LAN, (3) Reverse N antenna
    Indicators — (5) LEDs: (1) Power, (1) WAN, (1) WLAN 1, (1) WLAN 2, (1) WLAN Signal Strength
    Power — RF management for variable power control; PoE-enabled
    Size — 3"H x 8.25"W x 9.25"D (7.65 x 21 x 23.5 cm)
    Weight — 5.5 lb. (2.5 kg)
    Warranty — 1 Year


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for AirGuard 525C-3 Wireless Access Points:


    Connect your AirGuard 525C-3 Wireless Access Points with:
