Networking > Console Servers


click photo to enlarge

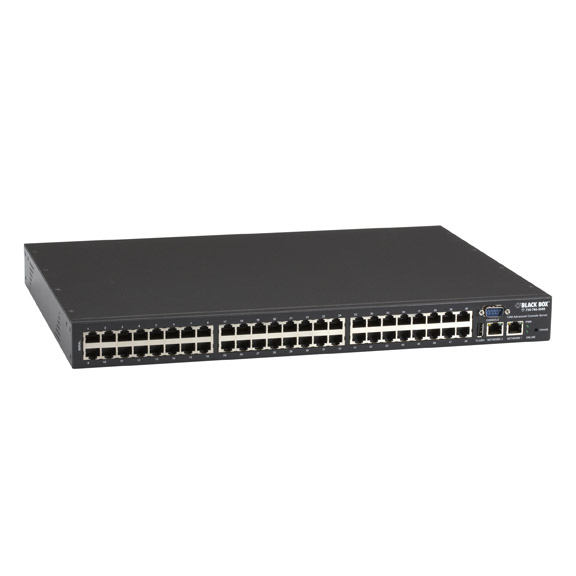

LES1248A-R2

Photo may show similar product

Other views

Advanced Console Server with (48) RJ-45 Serial Ports + Dual Ethernet

Dual Ethernet ports with bonding ensure high availability for remote console port management.

LES1248A-R2

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Cost-effective, advanced console port access that's fully redundant with dual Ethernet ports plus a modem.
  • Manage up to 48 remote console ports across your Ethernet network.
  • Federal Information Processing Standard (FIPS) 140-2 validated module for enhanced security.


  • Description

    Advanced Console Server with (48) RJ-45 Serial Ports + Dual Ethernet


    Quick Facts

  • Cost-effective, advanced console port access that's fully redundant with dual Ethernet ports plus a modem.
  • Manage up to 48 remote console ports across your Ethernet network.
  • Federal Information Processing Standard (FIPS) 140-2 validated module for enhanced security.

  • Further Details

  • Dual Ethernet ports with bonding ensure high availability. Set up automatic failover and an additional out-of-band broadband connection.
  • Protects data over a public network with 256-bit encryption, SSH tunneled serial bridging, SSH tunneling for TCP/UDP, IP packet filtering, and more.
  • Embedded with open-source Linux® based OS. PC, Mac®, and UNIX® compatible.
  • Features dual universal AC input for powering from two sources for backup power.
  • Includes a built-in modem RJ-11 port for setting up out-of-band access, as well as a DB9 port for an external modem.
  • Accessible in band (via Ethernet or secure tunnel over the Web) or out of band via a modem link.
  • Three USB ports plus an included 2 GB flash drive enable local FTP/TFTP storage.
  • Stores multiple local boot images locally for easy rollback. Supports off-line logs for audit trails, file backup, and disaster recovery.
  • Supports up to 50 concurrent sessions (SDT tunnels) open at the same time.
  • No limit on the number of clients who can access one gateway or the number of hosts accessed concurrently through one tunnel.
  • Advanced power management functions for monitoring a remote UPS and resetting a PDU or RPS using a user-friendly GUI.
  • Comes with IPSec High Availability VPN gateway software—great for electric utilities who need to meet NERC CIP standards.
  • Robust LAN console port management with secure Serial over LAN (SoL) access and Secure Remote Desktop access to Windows® XP/2003.
  • On the LAN port, each gateway can port forward to an unlimited number of locally networked hosts (computers or routers).
  • Boasts authentication protection plus the ability to restrict access by IP address, password, or account.
  • Cascadable ports. Cluster multiple units so many serial ports can be accessed via one IP address and managed at one location.
  • Flexible system management options (including SNMP, HTTPS, HTTP, CLI in Linux Shell, Nagios® distributed monitoring, and ARP-PING).
  • Features an embedded DHCP server for managing LAN devices.
  • Rackmountable (1U) with included mounts.
  • NTP, TCP/IP, and UDP/IP network compatible.
  • Firmware upgradable.
  • To manage large numbers of console servers over a wide geographic area, even globally, use Virtual Central Management System Software (LES-VCMS-10-1Y, etc.).


  • For cost-effective console server management and reliable remote access to remote data center equipment, choose a Black Box Advanced Console Server.

    This platform provides secure serial console port control in a single box, whether you need 24/7 in-band or out-of-band access to your vital network-attached and serially attached devices in the data center. Plus, it's priced to fit the budget of most enterprises and educational, healthcare, and government institutions.

    Equipped with a built-in modem as well as dual 10/100 Ethernet ports, it gives you multiple access paths, plus a redundant AC power supply for power backup and maximum uptime. It also features 2 GB of USB flash memory for local FTP/TFTP storage, which you can use for disaster recovery and storing device configurations and logs off-line (such as for syslog and Wireshark packet analysis). Quickly store local copies of your router and switch configurations and backup configurations, and roll back to an earlier configuration if necessary.

    What's more, it includes IPSec High Availability VPN gateway software, which enables you to set up console connections within a secure IPSec VPN network. If there's a network outage, the Advanced Console Server will automatically reconnect the VPN using a modem link or broadband failover route.

    This means you can set up 'round-the-clock access to vital data center systems—without sacrificing security, flexibility, and interoperability with your current server environment. Use it as a gateway to remotely access servers, virtual servers, service processors, and similar network IT equipment. You can also monitor and control routers, switches, firewalls, PBX systems, and many other network infrastructure devices.

    And because you can use the console server to manage ports on PDUs and UPSs and, in the process, cut power consumption and reduce utility bills, it's a great addition to any IT department or company wanting to initiate "clean tech" energy conservation. It's a great way to unify power and IT resources while controlling your data centers and networks from anywhere in the world!

    The console server comes with Network UPS Tools for UPS monitoring. It supports complex power architectures typical of many modern data centers and NOCs where you find a mix of UPSs from various manufacturers. Through this interface, you can not only more easily manage and monitor UPS hardware connected to your expensive devices, you can also ensure a safe systems shutdown.


    Technical Specifications for Advanced Console Server with (48) RJ-45 Serial Ports + Dual Ethernet:

    "
    Approvals CE, RoHS
    Compliance
    FCC Part 15 A, UL® 1950, TUV, C-Tick, NERC CIP Cyber Security Compliant
    CPU Processor
    166 MHz ARM (Micrel KS8695P)
    LAN Console Port Management Secure SSH tunneling (TCP/UDP); Secure Remote Desktop access to Windows XP/2003; Secure VNC access to Sun®, Windows, Linux computers; secure HTTP(S) access to browser-controlled appliances; Native IPMI 1.5/2.0 (RMCP/RMCP+) support for BMC and service processor access and control; Secure SOL to BIOS, EMS, ACS data; service processor access (IPMI, ILO, LOM); access to KVM built into service processors (DRAC, RSA); secure Telnet access; limit user access by LAN device and SDT service for device; embedded DHCP server<BR>
    <B>Security and Authentication —</B> Secure Shell (SSH-2, SSH-3); TACACS+, RADIUS, LDAP, PAP/CHAP (dialup); dialback support; local authentication; system event syslog; SSH port and IP forwarding support; IP packet filtering
    Memory 64 MB SDRAM, 16 MB embedded Flash, external 4 GB USB flash drive (included)
    Networking Protocols
    NTP, TCP/IP, UDP/IP; Ethernet, Fast Ethernet, PPP, RS-232
    Operating Environment Temperature: 41 to 122° F (5 to 50° C);
    Humidity: 5 to 90%, noncondensing
    Operating System
    Linux with source code access (custom development kit included)
    Security and Authentication Secure Shell (SSH-2, SSH-3); TACACS+, RADIUS, LDAP, PAP/CHAP (dialup); dialback support; local authentication; system event syslog; SSH port and IP forwarding support; IP packet filtering
    Serial Standards
    RS-232
    Connectors Serial: (48) RJ-45 (RS-232);
    Console port: (1) DB9 F (RS-232)
    Built-in modem port: (1) RJ-11;
    Network/broadband out-of-band access: (2) RJ-45 (10BASE-T/100BASE-TX);
    USB: (1) USB 2.0
    Power Dual-socket internal power supplies: 100-240 VAC, 50-60 Hz;
    Consumption: 30 watts maximum
    Dimensions 1.75"H (1U) x 17"W x 12"D (4.4 x 43.1 x 30.4 cm)
    "

    This product works with:
    • Cisco Compatible Console Port Adapter for Advanced Console Servers (LS1016A-CISCO)
    • Console Server Adapter for Advanced Console Server, DB9F to RJ-45 (LS1016A-9FT)
    • DB9 Male DTE Dumb Terminal Adapter (LS1016A-9MT)
    • DB25 Female DCE Serial Port Adapter (LS1016A-25FC)
    • DB25 Female DTE Dumb Terminal Adapter (LS1016A-25FT)
    • DB25 Male DCE Modem Adapter (LS1016A-25MC)
    • DB25 Male DTE Dumb Terminal Adapter (LS1016A-25MT)
    Questions? Contact our FREE Tech Support at 724-746-5500 or by clicking "Need Help" in the top navigation.



    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Advanced Console Server with (48) RJ-45 Serial Ports + Dual Ethernet:
