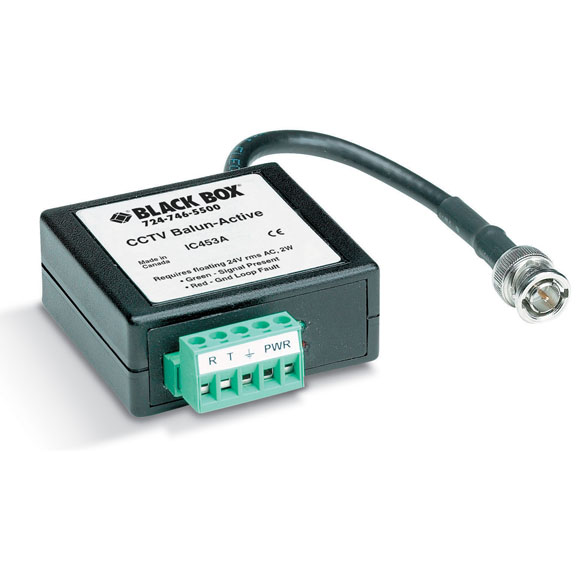

Active CCTV Receiver Balun

Run your security video 5000 feet over CAT5!

IC453A

Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • Uses easy-to-handle, inexpensive CAT5 cable.
  • Ideal for campuses, highways, airports, hotels, casinos, remote parking lots, entry gates, self-storage, hospitals, and more.


  • Further Details

  • Automatic Image Adjustment (patent pending) for picture brightness, sharpness, and contrast helps reduce on-site service calls.
  • Built-in surge protection guards against ground loops.
  • Use with all types of CCTV security and surveillance equipment, such as cameras, monitors, DVRs, switches, multiplexors, and more.

  • NOTE: Supports distances of up to 5000 feet (1524 m) when used with the IC440A or IC444A.

    This product works with:
    • GigaTrue 550 CAT6, 550-MHz Bulk Cables (EYN870A-110)
    Questions? Contact Tech Support.

    Bandwidth — Up to 4.5 MHz
    Cable Requirements — UTP: Solid copper, 24 gauge or lower;
    Impedance: 100 ohms at 1 MHz;
    Maximum capacitance: 20 pF/ft.;
    Attenuation: 6.6 dB/1000 ft. at 1 MHz;
    BNC coax: Impedance: 75 ohms at 1 MHz (RG59/U or RG6)
    Distance (Maximum) — Color and black-and-white:
    NTSC: 5000 ft. (1524 m);
    PAL: 4000 ft. (1219.2 m)
    Surge Protection — Video in/out: ±1.5 volt maximum permanent voltage positive or negative pulse, 3V max.;
    AC/DC: above 30 VAC RMS or 42 VDC
    CE Approval — Yes
    Connectors — Input: Video: (2) screw terminals;
    Power: (2) screw terminals;
    Output: Video: (1) BNC M with 5“ (12.7-cm) coax lead
    Indicators — LEDs: Power, video, ground loop
    Power — From 24-VAC or -VDC source
    Size — 1“H x 2.4“W x 2.3“D (2.5 x 6.1 x 5.8 cm)
    NOTE: Supports distances of up to 5000 feet (1524 m) when used with the IC440A or IC444A.

    This product works with:
    • GigaTrue 550 CAT6, 550-MHz Bulk Cables (EYN870A-110)
    Questions? Contact Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.
