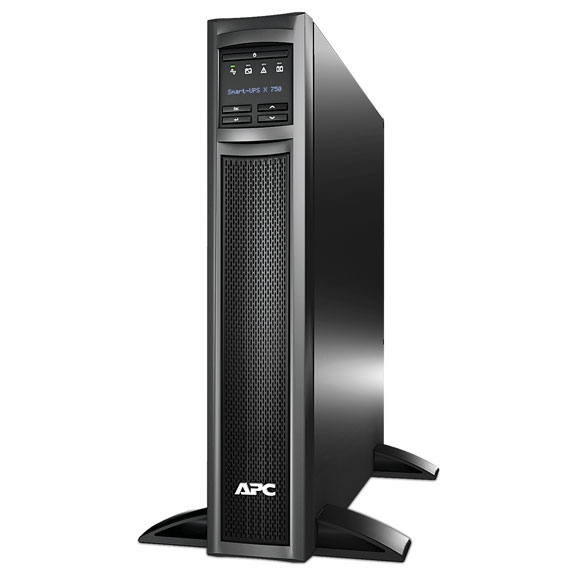

APC Smart-UPS X, 750 VA Rack/Tower LCD, 120 V, 2U

Ensure server uptime with this economical 750-VA rackmount or tower UPS.

SMX750

Extended Double Diamond™ Warranty Available
(2 Year)

Product Highlights

  • Provides reliable, clean power to servers and other networking equipment.
  • 600 W/750 VA of output power capacity on eight NEMA 5-15R outlets.
  • Mount it in a rack or use in a tower configuration.

  • Description

    APC Smart-UPS X, 750 VA Rack/Tower LCD, 120 V, 2U


    Quick Facts

  • Provides reliable, clean power to servers and other networking equipment.
  • 600 W/750 VA of output power capacity on eight NEMA 5-15R outlets.
  • Mount it in a rack or use in a tower configuration.

  • Further Details

  • Power conditioning protects against surges and other power disturbances.
  • Automatic voltage regulation (AVR) adjusts both voltages to safe levels during brownouts and overvoltage events.
  • Built-in multi-function LCD status and control console display.
  • Supports management RS-232 and USB port management (cables included).
  • SmartSlot™ for adding extra management and expansion capabilities.
  • RoHS compliant.

  • This Smart-UPS® solution from APC® offers intelligent and economical power backup and extended runtime for your networking environment. Cold-start capable, it provides temporary battery power when your utility power goes out.

    By supplying clean and reliable network-grade power, the Smart-UPS enables you to keep critical data and equipment running during blackouts, brownouts, or other power anomalies. It takes over, providing reliable power and extended runtime to keep your systems on-line. When power returns, the Smart-UPS restarts the connected equipment automatically.

    Power conditioning protects connected loads from surges, spikes, lightning, and other power disturbances.

    It also offers extended range automatic voltage regulation (AVR), which corrects both high- and low-voltage conditions without using the battery, so you have much higher application availability.

    The flexibility of the SMX750:
    Ideal for powering servers, routers, switches, and other networking devices, the SMX750 is a 2U-high rack/tower UPS—an excellent choice for blade or density-optimized servers. Mount it horizontally in a rack or stand it upright in a tower configuration.

    It provides 600 W/750 VA of output power capacity on eight NEMA 5-15R sockets and features a multifunction LCD status and control console for clear, accurate information readout. Configure it locally with its easy-to-use navigation keys.

    You can also control it from a connected console via its RS-232 or USB port. It supports Emergency Power Off (EPO). You can even remotely manage it over a network and control it via the APC InfraStruXure Manager® platform.

    The protection offered by the SMX750:
    The SMX750 boasts a surge energy rating of 645 joules, offers full-time multipole noise filtering (with 5% IEEE surge let-through and zero clamping response time), and meets UL® 1449 ratings. Resettable circuit breakers provide quick recovery from overload events. Audible alarms notify you of changing utility power and UPS conditions.

    An internal Smart-Slot interface enables you to install various accessory cards depending on your needs. In addition, you can install an external APC battery pack to support extra runtime.

    Batteries are hot-swappable, so you can ensure uninterrupted power to protected equipment while batteries are being replaced. A periodic battery self-test ensures early detection of a battery that needs to be replaced, and audible alarms alert you when a battery is running low.

    What's more, the Smart-UPS features intelligent, precision charging and temperature-compensated battery charging, which helps to prolong battery life by regulating the charge voltage according to battery temperature.

    What's included:
  • SMX750 Smart-UPS
  • Rackmounting brackets
  • Removable support feet
  • SmartUPS signaling RS-232 cable
  • USB cable
  • CD with software
  • Documentation CD
  • Installation guide


  • Technical Specifications for APC Smart-UPS X, 750 VA Rack/Tower LCD, 120 V, 2U:

    Outlets (Output/Input) (8) 5-15R/(1) 5-15P
    Output Capacity (Watts/VA) 600/750
    Runtime (Typical in Minutes, Half/Full Load) 38 (300 W)/14 (600 W)
    Smart Slot Yes
    Surge Rating (Joules) 645
    USB Port Yes
    CE Approval Yes
    Size 17"H x 3.5"W x 19.3"D (43.2 x 8.9 x 49 cm)
    Weight 48.5 lb. (22 kg)
    Warranty 2 years


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
