Power > UPS

click photo to enlarge

SC620

Photo may show similar product

Other views

  • SC620
  • SC620

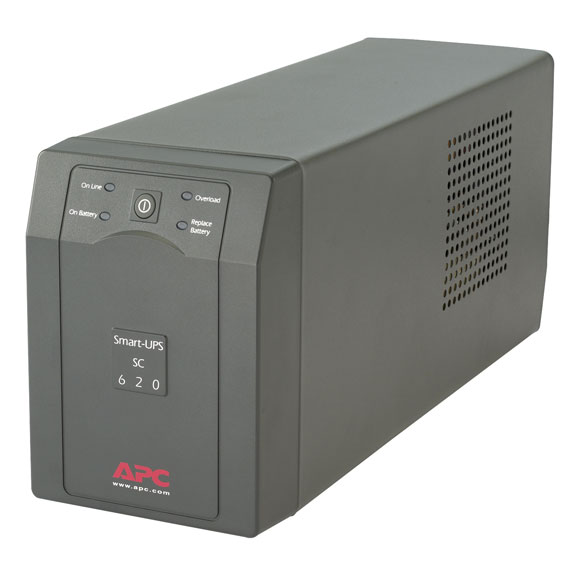

APC Smart-UPS SC, 620 VA, 120 V

Protect your servers and provide runtime for extended operation during outages.

SC620

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Ideal for small and medium size businesses.


    • Description

    APC Smart-UPS SC, Tower, 620 VA, 120 V


    Quick Facts

  • Ideal for small and medium size businesses.

    • Further Details

  • Prevents surges and blackouts from reaching your valuable equipment.
  • Has four NEMA 5-15R receptacles for plugging in devices.
  • Also guards against power surges on equipment connected to data lines.
  • Features RS-232 serial management port. Network manageable with the included PowerChute software.
  • Restarts loads automatically after UPS shutdown and is cold-start capable.
  • Intelligent battery management maximizes battery performance.
  • Batteries are easy to replace and hot swappable.

    Guard entry-level servers and other connected equipment from surges on data lines while providing power conditioning that protects connected loads from surges, spikes, and other power anomalies.

    Protect your servers and networking equipment from outages and other power disturbances with the APC Smart-UPS SC.

    Featuring network-grade runtime, hot-swappable batteries, built-in data line protection, and resettable circuit breakers, the Smart-UPS SC supplies uninterruptible power so your important applications stay operating ’round-the-clock.

    It not only provides temporary battery power when electricity goes out, the UPS also enables you to recover quickly from UPS overload events. Plus it filters small utility line fluctuations and isolates your equipment from large disturbances by internally disconnecting from the utility line. And until the utility line returns to a safe level, the Smart-UPS SC provides continuous power from its internal battery.

    We have three models to choose from, including a rackmount unit that can also be set on its end to operate as an ultra-slim tower unit and offers 450 VA of output, as well as tower units that offer 420 or 620 VA of output. For other differences, including the surge rating for a specific UPS, see the Tech Specs below.

    All units feature surge suppression for network and telecomm equipment. You simply plug a telephone or 10BASE-T/100BASE-TX cable into the RJ-45/RJ-11 IN port on the back of the UPS, and using a separate telephone or network cable, connect the OUT port to a fax modem or network port.

    You can manage the UPS via its serial port. Each UPS unit comes with PowerChute® Business Edition software. With this, you get a proven UPS management solution that enables you to manage other Smart-UPS models and upgrade your UPS as applications change—all without the need to replace software or learn a whole new system. It also provides you with the means to monitor and control the UPS remotely. And, for centralized management, the APC Smart-UPS SC is compatible with the APC InfraStruXure® Manager application.

    To create higher application availability, Automatic Voltage Regulation (AVR) on the UPS enables you to correct low- and high-voltage conditions without using the battery. It also maximizes battery life by automatically adjusting the input voltage window or output voltage regulation.

    Front-panel LED indicators let you know when the UPS is supplying utility or battery power to the connected equipment, as well as when connected loads are drawing more than the UPS power rating, and when the battery needs replacing.

    The UPS also reports its status with audible alarms that let you know if there’s an overload condition and if the unit is operating on-battery or has a low battery. A periodic automatic battery self-test detects whether a battery needs replacing soon, and the UPS performs a preventive-maintenance fault analysis on the batteries.


    • Technical Specifications for APC Smart-UPS SC, 620 VA, 120 V:

    Audible Alarms — Alarm when operating on battery, distinctive low battery alarm, overload continuous tone alarm
    Backup Time (Typical) — SC450RM1U: At half-load: 19.4 minutes (140 W);
    At full load: 5.9 minutes 280 W);
    SC420: At half-load: 13.5 minutes (130 W);
    At full load: 5.5 minutes 260 W);
    SC620: At half-load: 15.7 minutes (195 W);
    At full load: 5.5 minutes (390 W)
    Battery Recharge Time (Typical) — 5 hours
    Battery Type — Leakproof, maintenance-free sealed lead-acid battery with suspended electrolyte
    Chassis Color — Gray
    Compliance — CSA; FCC Part 15 Class A; UL® 1778
    Output Configurable Power (Maximum) — SC450RM1U: 280 W/450 VA;
    SC420: 260 W/420 VA;
    SC620: 390 W/620 VA
    Output Power Capacity — SC450RM1U: 280 W/450 VA;
    SC420: 260 W/420 VA;
    SC620: 390 W/620 VA
    Output Power Crest Factor — Up to 5:1
    Output Power Frequency (Sync to AC Power) — 47–53 Hz for 50 Hz (nominal), 57–63 Hz for 60 Hz (nominal)
    Output Power Voltage Distortion — Less than 5% at full load
    Output Power Voltage (Nominal) — 120 V
    Output Receptacles — (4) NEMA 5-15R
    Runtime — SC450RM1U: 2 hours, 28 minutes (at 25 W, 40 VA);
    At half load: 19 minutes (140 W);
    At full load: 6 minutes (280 W);
    SC420: Maximum: 1 hour, 48 minutes (at 25 W, 40 VA);
    At half load: 14 minutes (120 W);
    At full load: 5 minutes (260 W);
    SC620: 3 hours, 3 minutes (at 25 W, 40 VA);
    At half load: 16 minutes (195 W);
    At full load: 5 minutes (390 W)
    Surge Energy Rating — SC450RM1U: 400 joules;
    SC420, SC620: 412 joules
    Surge Filtering — Full time multi-pole noise filtering; 0.7% IEEE surge let-through; zero clamping response time; meets UL® 1449
    CE Approval — Yes
    Connectors — Serial: (1) DB9 F (RS-232);
    Phone/data line: (2) RJ-11/RJ-45 (in/out)
    Indicators — LEDs: On Line, On Battery, Replace Battery, Overload
    Power — Input: 120 VAC, 50/60 Hz +/- 3 Hz (autosensing);
    Input voltage range for AC power operations: 82–144 V;
    Input voltage adjustable range for AC power operation: 75–154 V
    Size — SC450RM1U: 1.7"H (1U) x 17"W x 15.1"D (4.3 x 43.2 x 38.3 cm);
    SC420, SC620: 6.6"H x 4.7"H x 14.5"D (16.7 x 11.9 x 36.8 cm)
    Weight — SC450RM1U: 23.6 lb. (10.7 kg);
    SC420: 22.1 lb. (10 kg);
    SC620: 27 lb. (12.2 kg)
    Warranty — 2 Years


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
