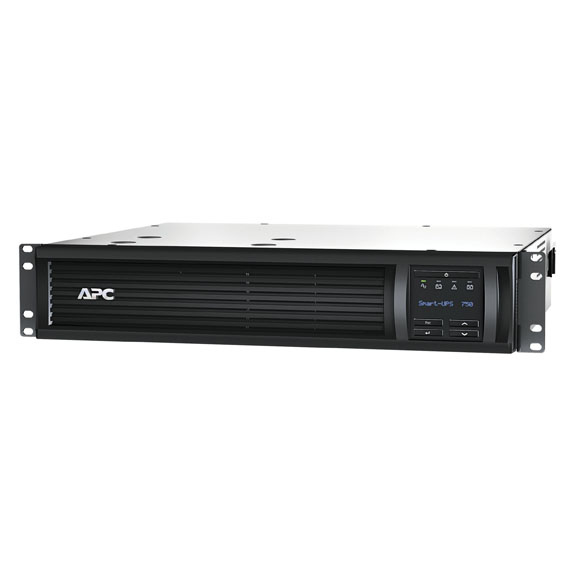

APC Smart-UPS 750VA, 2U, 120V

Ensure server uptime with this economical 750-VA UPS.


3 YEAR DoubleDiamond™ Warranty (Standard)

Product Highlights

  • Provides reliable, clean power to servers and other networking equipment.
  • Provides 500 W/750 VA of power on six NEMA 5-15R outlets.
  • Features a SmartSlot™ for adding extra management and expansion capabilities.

  • Further Details

  • Provides clear and accurate UPS status information in multiple languages.
  • Configurable with easy-to-use navigation keys.
  • Displays the month and year for recommended battery replacement.
  • Bypass mode provides high operating efficiency without sacrificing protection.
  • An energy meter displays kilowatt hours used.
  • A pure sine wave output on the battery simulates utility power to provide the highest degree of compatibility for active power factor corrected (PFC) servers and sensitive electronics.
  • A single outlet group can be controlled separately from the UPS to reboot devices or shut off non-critical devices.
  • High-online efficiency reduces utility costs and generates less heat.
  • Cold-start capable to provide temporary battery power when utility power is out.

  • This Smart-UPS® solution from APC® offers intelligent and economical power backup for your networking environment. It's cold-start capable to provide temporary battery power when your utility power goes out.

    By supplying clean and reliable network-grade power, the Smart-UPS enables you to keep critical data and equipment running during blackouts, brownouts, or other power anomalies. It takes over, providing reliable power to keep critical systems on-line and allow for an orderly shutdown of non-critical devices. When power returns, the Smart-UPS restarts connected equipment automatically.

    Power conditioning protects connected loads from surges, spikes, lightning, and other power disturbances.

    This UPS also offers extended-range automatic voltage regulation (AVR), which corrects both high- and low-voltage conditions without using the battery, so you have much higher application availability.

    The flexibility of the Smart-UPS:
    Ideal for powering servers, routers, switches, and other networking devices, the UPS provides 500 W/750 VA of output power capacity on six NEMA 5-15R sockets. Configure it locally with its easy-to-use navigation keys or control it from a connected console via its RS-232 or USB port. You can even remotely manage the UPS over a network using the APC InfraStruXure Manager® platform.

    Protection offered by the Smart-UPS:
    The Smart-UPS has a surge energy rating of 459 joules and meets UL® 1449 ratings. Resettable circuit breakers provide quick recovery from overload events.

    An integral Smart-Slot interface enables you to install various accessory cards. Batteries are hot-swappable, so you can ensure uninterrupted power to protected equipment while batteries are being replaced. A periodic battery self-test ensures early detection of a battery that needs to be replaced, and audible alarms alert you when a battery is running low.

    The Smart-UPS also features intelligent precision charging and temperature-compensated battery charging, which helps to prolong battery life by regulating the charge voltage according to battery temperature.

    Outlets (Output/Input) (6) 5-15R/(1) 5-15P
    Output Capacity (Watts/VA) 500/750
    Runtime (Typical in Minutes, Half/Full Load) 21 (335 W)/9 (700 W)
    Smart Slot Yes
    Surge Rating (Joules) 459
    USB Port Yes
    CE Approval Yes
    Size 3.5"H x 17"W x 16"D (8.9 x 43.2 x 40.6 cm)
    Weight 38 lb. (17.3 kg)
    Warranty 3 years

    What's included:
  • APC Smart-UPS, 750VA, 120V
  • CD with software
  • Documentation CD
  • Installation guide
  • Rackmounting support rails
  • Smart UPS signaling RS-232 cable
  • USB cable

  • NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.
