Power > UPS

click photo to enlarge

SMX3000RMLV2U

Photo may show similar product

Other views

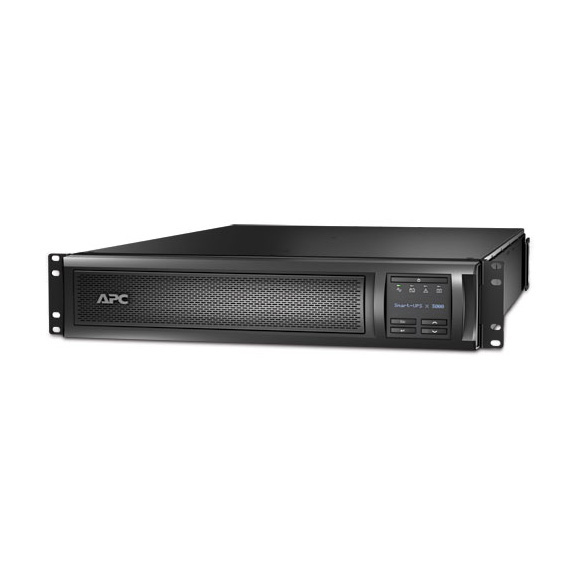

APC Smart-UPS 3000VA, 2U Rack/Tower

Keep critical rackmount servers up and running longer.

SMX3000RMLV2U


Two year Warranty

Product Highlights

  • Occupies 2U of rack space, delivering increased power density for tightly packed server storage and IT environments.
  • Power conditioning protects connected loads from lightning, surges, spikes, and other harmful power disturbances.

  • Description

    APC Smart-UPS 3000VA, 2U Rack/Tower


    Quick Facts

  • Occupies 2U of rack space, delivering increased power density for tightly packed server storage and IT environments.
  • Power conditioning protects connected loads from lightning, surges, spikes, and other harmful power disturbances.

  • Further Details

  • Draws backup power from hot-swappable, user-replaceable batteries. Add packs to boost runtime capacity.
  • Intelligent battery management improves reliability and extends battery life.
  • Generator compatible and cold start-capable, so you can deliver clean, uninterrupted power to protected equipment during outages.
  • Features a USB port and a SmartSlot internal accessory slot for installing optional cards to enhance performance and manageability.
  • Comes with standard 19-inch (48.3-cm) mounting rails, brackets, and hardware.
  • Boost and trim automatic voltage regulation (AVR) gives higher application availability by correcting low and high voltage conditions without using the battery.
  • Maximizes battery performance, life, and reliability through intelligent precision charging.
  • Temperature-compensated battery charging prolongs battery life by regulating the charge voltage according to battery temperature.
  • Automatic restart of loads after UPS shutdown.
  • Periodic battery self-test ensures early detection of a battery that needs to be replaced.
  • Disconnected battery notification warns when a battery is not available to provide backup power.
  • Provides remote management of the UPS over the network.
  • Audible alarms actively let you know if the unit is on battery, if the battery is low, or if there is an overload condition.
  • Serial connectivity provides management of the UPS via a serial port.
  • USB connectivity provides management of the UPS via a USB port.
  • Disconnected battery notification warns when a battery is not available to provide backup power.
  • User-replaceable batteries increase availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).
  • Hot-swappable batteries ensure clean, uninterrupted power to protected equipment while batteries are being replaced.
  • Predictive failure notification provides early-warning fault analysis ensuring proactive component replacement.
  • Resettable circuit breakers enable a quick recovery from overload events.
  • Adjustable voltage-transfer points maximize useful battery life by widening the input voltage window or tightening the output voltage regulation.
  • Adjustable voltage sensitivity provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
  • Field-replaceable power distribution panel ensures compatibility with equipment that has different plug types.


  • Technical Specifications for APC Smart-UPS 3000VA, 2U Rack/Tower:

    Adjustable Range for Power Operation — 75–154 V
    Backup Time (Typical) — At full load (2700 W): 5.4 minutes; At half load (1350 watts): 15 minutes
    Battery Type — Maintenance-free sealed lead-acid battery with suspended electrolyte, leakproof
    Battery Recharge Time — 3 hour(s), typical
    Battery RBC™ Quantity— 1
    Chassis Color — Black
    Configurable Power (Maximum) — 2700 W/3000 VA
    Crest Factor — Up to 5:1
    Filtering — Full-time multipole noise filtering with 0.3% IEEE surge let-through and zero clamping response time that meets UL® 1449
    Input (Nominal) — 120 VAC, 50–60 Hz, +/- 3 Hz, autosensing
    Input Voltage — Range for power operations: 82–144 V
    On-line Thermal Dissipation — 276 BTU/hr.
    Output Frequency (Sync to Mains) — 47–53 Hz for 50 Hz (nominal), 57–63 Hz for 60 Hz (nominal)
    Output Power Capacity — 2700 W/3000 VA
    Output Voltage (Nominal) — 120 V
    Output Voltage Distortion — Less than 5% at full load
    Runtime (Maximum) — 8 hours, 27 minutes
    Output Receptacles — (3) NEMA 5-15R, (3) NEMA 5-20R, (1) NEMA L5-30R
    Surge Energy Rating — 540 joules
    Waveform Type — Sine wave
    Interface — (1) DB9 F (RS-232) serial port, (1) battery pack port, (1) USB port, (1) SmartSlot card slot, (1) EPO (emergency power off) port
    Audible Alarms — Alarms indicating battery operation and low battery detection
    RoHS— Yes
    Indicators — LED status display with load and battery bar graphs indicating On Line, On Battery, Replace Battery, Overload
    Operating Temperature — 32 to 104º F (0 to 40° C)
    Size — 3.3"H (23U) x 17"W x 26.4"D (8.5 x 43.2 x 67 cm)
    Weight — 84.9 lb. (38.5 kg)

    What’s included:
    • (1) UPS
    • (1) CD with software
  • (1) Installation guide
  • (1) Documentation CD
    • Rackmounting support rails and hardware
    • (1) Smart-UPS signaling RS-232 cable
  • (1) USB cable


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
