Power > UPS

click photo to enlarge

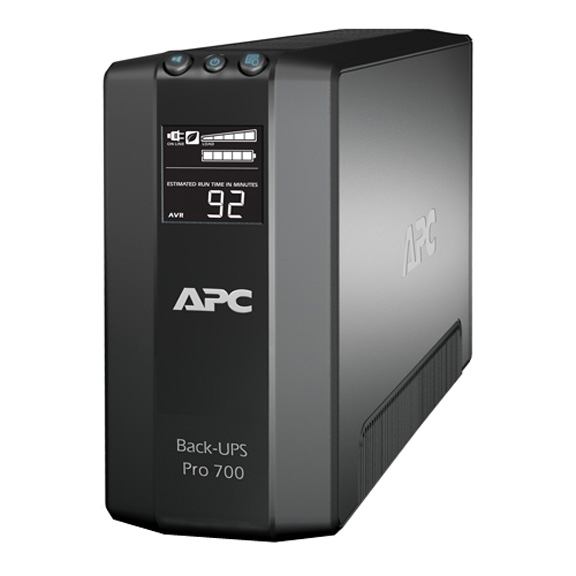

BR700G

Photo may show similar product

Other views

APC Back-UPS RS LCD 700 Master Control

Cut power to idle devices—and cut electric bills—with this 700-VA UPS.

BR700G


Two year Warranty

Product Highlights

  • Automatically cuts power to idle equipment, enabling you to conserve electricity.
  • 420 W/700 VA of output power capacity on six NEMA 5-15R outlets (three battery backup/three surge protection only).
  • Power conditioning protects against surges and other power disturbances.

  • Description

    APC Back-UPS RS LCD 700 Master Control


    Quick Facts

  • Automatically cuts power to idle equipment, enabling you to conserve electricity.
  • 420 W/700 VA of output power capacity on six NEMA 5-15R outlets (three battery backup/three surge protection only).
  • Power conditioning protects against surges and other power disturbances.

  • Further Details

  • Gives you temporary battery power when utility power goes out.
  • Automatic voltage regulation (AVR) adjusts both voltages to safe levels during brownouts and overvoltage events.
  • Built-in LCD graphical display shows mode of operation, alarms, and system parameters.
  • Also offers line protection for modems, fax machines, and Ethernet devices.

  • Conserve electricity while providing battery backup power and surge protection to your workstation with this Back-UPS® solution from APC®.

    To reduce the cost of powering peripherals not in use, the BR700G Back-UPS has both master and controlled outlets. The UPS’s master outlet senses when your computer has either been turned off or has gone into sleep mode. When either happens, the UPS shuts power off to peripherals plugged into its controlled outlets.

    Cold-start capable, the Back-UPS provides temporary battery power when your utility power goes out. This way, you can keep working during blackouts, brownouts, or other power anomalies. Resettable circuit breakers enable a quick recovery from overload events. And when utility power returns, the UPS starts up connected equipment automatically.

    The Back-UPS provides 420 W/700 VA of output power capacity on its transformer block-spaced outlets. In all, the UPS has six NEMA 5-15R outlets with three providing battery backup and three providing surge protection only.

    Because it has both battery-protected and surge-only outlets, you can reserve power capacity and run time for equipment requiring battery back-up while providing surge-only protection for less-critical equipment.

    The Back-UPS also offers extended range automatic voltage regulation (AVR), which corrects both high- and low-voltage conditions without using the battery, so you have much higher application availability.

    And it protects connected equipment, too. The Back-UPS features analog line protection for phone/fax/modem/DSL equipment on its RJ-45 connector, as well as Ethernet network line protection on its 10BASE-T/1000BASE-TX RJ-45 data port and coax line protection for CATV and AV devices on its BNC connector.

    Audible alarms notify you of changing utility power and UPS conditions, and its LCD status and control console gives you clear, accurate information readout.

    Batteries are hot-swappable on the UPS, so you can ensure uninterrupted power to protected equipment while batteries are being replaced. A periodic battery self-test ensures early detection of a battery that needs to be replaced, and audible alarms alert you when a battery is running low.

    What’s more, the Back-UPS features microprocessor-controlled battery charging, and diagnostic testing ensures maximum battery life.


    Technical Specifications for APC Back-UPS RS LCD 700 Master Control:

    Outlets — (3) NEMA 5-15R battery backup/(3) NEMA 5-15R surge protection only
    Output Capacity (Watts/VA) — 420/700
    Runtime (Typical in Minutes, Half/Full Load) — 13 (210 W)/4 (420 W)
    Surge Rating (Joules) — 354
    Size — 7.5"H x 3.6"W x 12.2"D (19 x 9.1 x 31 cm)
    Weight — 15.7 lb. (7.2 kg)
    Warranty — 2 years


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
