Power > UPS

click photo to enlarge

ACF001

Photo may show similar product

Other views

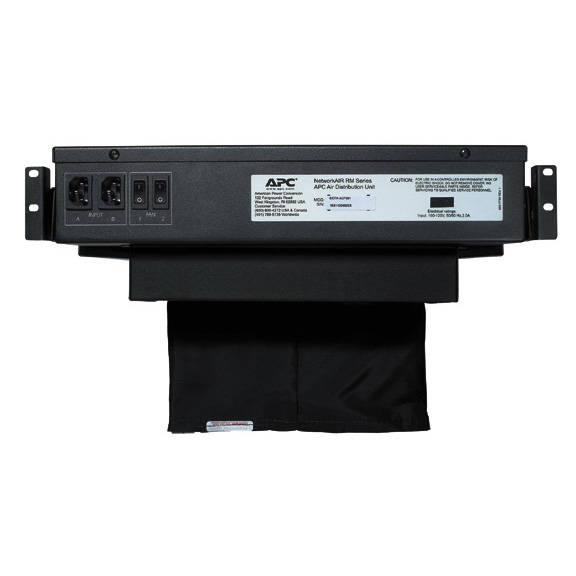

APC Air Distribution Unit

Cool hot spots and avoid overheated rackmount equipment.

ACF001

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Ensures proper air circulation and minimizes the mixing of A/C-distributed air with room-temperature air.
  • Helps prevent hardware failures caused by excessive heat.
  • Improves circulation in poor static pressure areas.

  • Description

    APC Air Distribution Unit


    Quick Facts

  • Ensures proper air circulation and minimizes the mixing of A/C-distributed air with room-temperature air.
  • Helps prevent hardware failures caused by excessive heat.
  • Improves circulation in poor static pressure areas.

  • Further Details

  • Adjustable unit mounts in 2U of rack space with the included brackets.

    Keep equipment in densely populated racks and enclosures cool with the rackmount APC Air Distribution Unit.

    Working with precision air-conditioning systems, the Air Distribution Unit channels airflow to hot spots so your expensive hardware doesn’t exceed its recommended operating temperature.

    The Air Distribution Unit does this by pulling AC-supplied air into the equipment enclosure before the conditioned air has a chance to mix with warmer air in the room. It can be used in rooms with or without raised floors.

    Dual fans on the unit feature independent switches. This way, you can switch on just one fan if you only have to cool a small enclosure. And, for redundant power, the Air Distribution Unit comes with two power sockets and cords.

    The package also includes an air filter, air intake fan guards, and all the mounting brackets and hardware you need to install it in your rack or cabinet.

  • Technical Specifications for APC Air Distribution Unit:

    Airflow — 505 CFM
    Power — 120 VAC, 60 Hz ± 3 Hz
    Size — 3.5"H x 16.5"W x 29"D (8.9 x 41.9 x 73.7 cm)
    Weight — 41 lb. (18.6 kg)
    Warranty — 2 years
    NOTE: You cannot cable through the bottom of an enclosure with the Air Distribution Unit installed.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
