Datacom > Modems & CSUs

click photo to enlarge

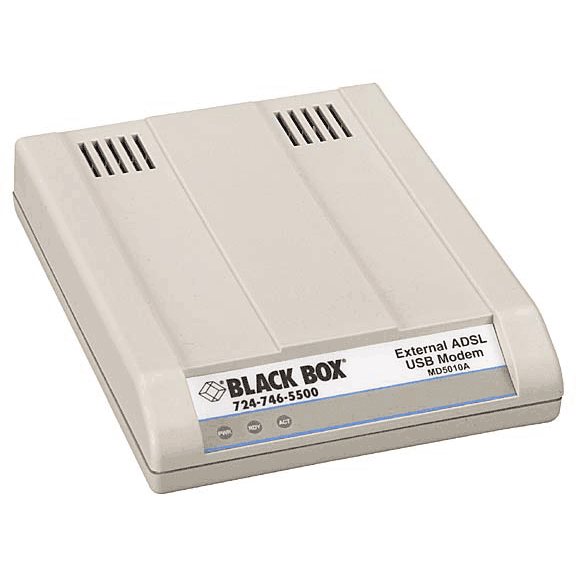

MD5010A

Photo may show similar product

Other views

ADSL USB Modem

The affordable modem for broadband access.

MD5010A


One year Warranty

Product Highlights

  • Download up to 8 Mbps—that’s up to 140 times faster than V.90!
  • Always-on access eliminates the waiting associated with dialup modems.
  • Easy to install and configure with installation wizard.

  • Description

    ADSL USB Modem


    Quick Facts

  • Download up to 8 Mbps—that’s up to 140 times faster than V.90!
  • Always-on access eliminates the waiting associated with dialup modems.
  • Easy to install and configure with installation wizard.

  • Further Details

  • Supports Windows 98/Me/XP and Windows 2000.
  • Troubleshoot connection problems immediately.
  • Diagnostics for modulation, link status, data rate, and data activity.

    The ADSL USB Modem is your always-on digital connection that supports download rates up to a scorching 8 Mbps.

    At more than 125 times faster than ISDN—and more than 140 times faster than V.90—the ADSL USB Modem is ideal for business or home users who absolutely crave high speeds for Internet access, videoconferencing, remote access, and multimedia.

    Use the ADSL USB Modem with one phone line for simultaneous transmission of voice, data, audio, and video. Because the ADSL connection is always on, you don’t have to plod through the dialup process as you would with an analog modem.

    ITU-T G.992 Discrete Multi-Tone (DMT) line coding enables the ADSL USB Modem to operate with the leading Digital Subscriber Line Access Multiplexor (DSLAM) and Digital Loop Carrier (DLC) vendors. In short, this modem makes an easy and fast connection to your broadband service provider.

    The MD5010A includes:
  • (1) modem
  • (1) RJ-11 cable
  • USB A–B cable
  • (1) CD with software


  • Technical Specifications for ADSL USB Modem:

    ATM Attributes — AAL5
    Bus — USB
    Management — DSL diagnostics
    Modem Standards — ITU: G.992.1 (G.DMT), G.992.2 (G.lite);
    ANSI: T1.413 Issue 2
    Operating Systems Supported — Windows® 98/Me/XP, Windows 2000
    RCF Protocols — 1483 LLC SNAP, 1483 VCMUX Bridged, 1483 VCMUX Routed, 2364 LLC, 2364 VCMUX, 1577 Classical IP over ATM, 2516 PPPoE
    Speed (Maximum) — Uploads: 1 Mbps; Downloads: 8 Mbps
    CE Approval — Yes
    Interface — RS-232
    Connectors — (2) RJ-11, (1) USB Type B
    Size — 1"H x 4.3"W x 5.7"D (2.5 x 10.9 x 14.5 cm)
    Weight — 0.5 lb. (0.2 kg)
    This product works with:
    • Universal Serial Bus (USB) Cable (USB01, USBR01)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ADSL USB Modem:

    Product Data Sheets


    Connect your ADSL USB Modem with:

    Accessory: USB01-0003

    Universal Serial Bus (USB) Cable, Version 1.1, Type A–Type B, 3-ft. (0.9-m)

    Universal Serial Bus (USB) Cable, Version 1.1, Type A–Type B, 3-ft. (0.9-m)

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A One year warranty is included.
