KVM > Extenders

click photo to enlarge

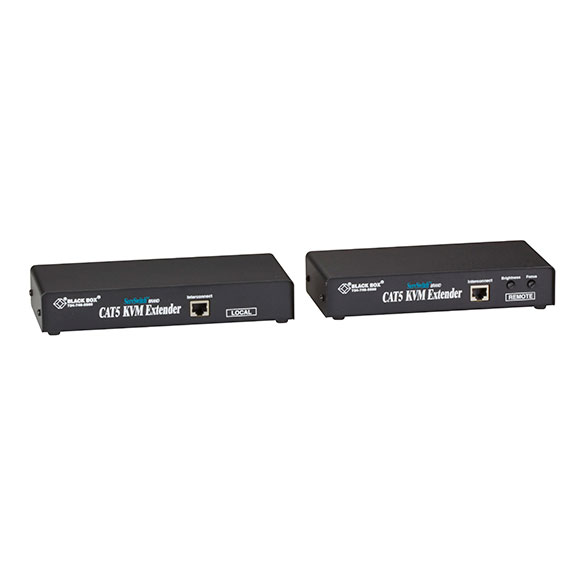

ACU1008A

Photo may show similar product

Other views

ServSwitch Brand CAT5 KVM Extenders with Serial Extension

Send two high-quality video channels plus serial to a remote site over CAT5 cable.

ACU1008A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Place your keyboard, monitor, and mouse up to 1000 feet (304.8 m) from a CPU or ServSwitch.
  • Use a single inexpensive CAT5 UTP cable!

  • Description

    ServSwitch Brand CAT5 KVM Extenders with Serial Extension, Dual-Access Kit


    Quick Facts

  • Place your keyboard, monitor, and mouse up to 1000 feet (304.8 m) from a CPU or ServSwitch.
  • Use a single inexpensive CAT5 UTP cable!

  • Further Details

  • Also send serial port data up to 1000 feet (304.8 m).
  • Capable of 1600 x 1280 at 200 feet (60.9 m), 1280 x 1024 at 300 feet (91.4 m), or 1024 x 768 at 1000 feet (304.8 m).
  • Fully adjustable video equalization for the best possible video quality—even at long distances and high resolutions.

    ServSwitch™ Brand CAT5 KVM Extenders make it easy to put your CPUs and ServSwitch KVM switches where you want them. Because these extenders use flexible, inexpensive CAT5 UTP cable, cabling is easy.

    The extenders have intelligent keyboard and mouse emulation to prevent remote CPUs from locking up, even if your keyboard or interconnect cable is unplugged.

    This kit enables you to have a local control station near your CPU or ServSwitch plus a remote station with a serial device up to 1000 feet (304.8 m) away.

    Also available are a single-access kit with serial, and single- and dual-access kits with no serial extension.

    What's included:
  • Local unit
  • Remote unit
  • Cable from CPU to local unit
  • Video input cable
  • Serial cable
  • 9-volt power supply and power cord

  • Technical Specifications for ServSwitch Brand CAT5 KVM Extenders with Serial Extension:

    Clamping Voltage — 15 volts
    Compatibility — Keyboard: PC/AT, PS/2;
    Video: VGA, Super VGA, XGA®;
    Mouse: PS/2 mouse only (user)
    Resolution (Maximum) — 1600 x 1280: 200 ft. (60.9 m);
    1280 x 1024: 300 ft. (91.4 m);
    1024 x 768: 1000 ft. (304.8 m)
    CE Approval — Yes
    Connectors — Keyboard and mouse: (2) 6-pin mini DIN F;
    Video: (1) HD15;
    Interconnect: (1) RJ-45;
    Serial local and remote units: Also have (1) DB9 for serial extension
    Power — Local units: From the PC;
    Remote units: 100–240 VAC, 50–60 Hz, external, autosensing, with IEC 320 connector
    Size — Local unit: 1.4"H x 8.4"W x 3.9"D (3.6 x 21.3 x 9.9 cm);
    Remote unit: 1.4"H x 7.8"W x 3.9"D (3.6 x 19.8 x 9.9 cm)
    Weight — 5.5 lb. (2.5 kg)
    NOTE: These products are designed for CAT5 cable only. They support PS/2® and AT® keyboards and mice. For adapters, see the FA212-R2.

    These products work with:
    • CAT5 100-MHz Solid-Conductor Bulk Cable, 4-Pair (EYN840A, EYN860A)
    • CAT5 100-MHz Solid-Conductor Cable, 4-Pair, Straight-Pinned (EYN556MS, EYN737MS)
    • CAT5 Modular Plugs (25/Bag), Solid-Conductor, Unshielded (FMTP5U-SLD)
    • 6-Pin Mini DIN Female to 5-Pin DIN male Keyboard Adapter (FA212-R2)
    • AT→PS/2 Mouse GHOST Emulator (AC244A)
    • 19“ Rackmount Kit for ServSwitch Brand CAT5 KVM Extenders (RMK19X or RMK19U-R2)
    • USB to PS/2 Converter (KVUSB)

    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServSwitch Brand CAT5 KVM Extenders with Serial Extension:

    Manuals

    • ServSwitch Brand CAT5 KVM Extender
      Installation and User Guide (11/9/2012)

    Product Data Sheets

    Software

    • ServSwitch Brand KVM Extender Software

    Black Box Explains


    Connect your ServSwitch Brand CAT5 KVM Extenders with Serial Extension with:

    Accessory: EYN860A-PB-1000

    GigaBase 350 CAT5e, 350-MHz Solid Bulk Cable, Black, Plenum, 1000-ft. (304.8-m)

    GigaBase 350 CAT5e, 350-MHz Solid Bulk Cable, Black, Plenum, 1000-ft. (304.8-m)

    Accessory: EYN556MS-0005

    CAT5e Solid-Conductor Patch Cable, PVC, Straight-Pinned, Beige, 5-ft. (1.5-m)

    CAT5e Solid-Conductor Patch Cable, PVC, Straight-Pinned, Beige, 5-ft. (1.5-m)

    Accessory: FMTP5U-SLD

    CAT5 Modular Plugs, Unshielded

    CAT5 Modular Plugs (25/Bag), Solid Conductor, Unshielded

    Accessory: FA212-R2

    Mini DIN Adapter, 6-Pin Mini DIN Female to 5-Pin DIN Male

    Mini DIN Adapter, 6-Pin Mini DIN Female to 5-Pin DIN Male

    Accessory: RMK19X

    ServSwitch Brand CAT5 KVM Extender Rackmount Kit, for ACU1800A Local Unit

    Rackmount Kit for ServSwitch Brand CAT5 KVM Extenders, 19" Rack, ACU1008A Local Unit

    Accessory: AC244A

    GHOST Emulator, ATPS/2 Mouse

    GHOST Emulator, ATPS/2 Mouse
