Video & Multimedia > Extenders

click photo to enlarge

AC651A

Photo may show similar product

Other views

  • AC651A
  • AC651A
  • AC651A

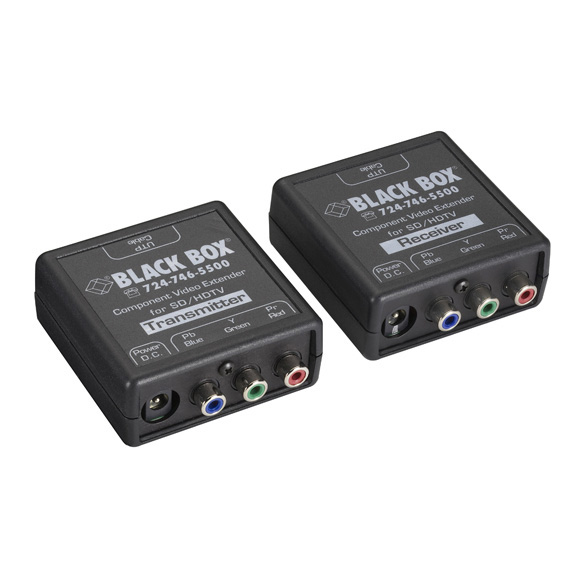

Component Video Extender Kit

Extend Component video up to 1000 feet over UTP cable.

AC651A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Includes a transmitter and receiver for extending Component (YPbPr) video over CAT5e or CAT6 cable.
  • Distances up to 1000 feet (304.8 m).
  • Supports 1080i resolution at 500 feet (152.4 m) and 1080p at 300 feet (91.4 m).


    • Description

    Component Video Extender Kit


    Quick Facts

  • Includes a transmitter and receiver for extending Component (YPbPr) video over CAT5e or CAT6 cable.
  • Distances up to 1000 feet (304.8 m).
  • Supports 1080i resolution at 500 feet (152.4 m) and 1080p at 300 feet (91.4 m).

    • Further Details

  • Wide-bandwidth (450-MHz) differential amplifiers ensure sharp, crisp video at the remote end.
  • Protects video signal from interference so there’s no video hum or distortion.
  • Matches UTP cable impedance to prevent ghosting.
  • Also comes with two high-quality Component video cables for connections at both ends.
  • Only one power supply required. Plug it in on the local or remote end.
  • RoHS compliant.

    Extending Component video can be tricky. If you want to avoid long Component cable runs, you can use baluns, but if not chosen carefully and passive in design, they may not give you the crystal-clear image you expect. You might, for instance, get ghosting when trying to transmit high-definition video with passive baluns.

    Worse yet, many baluns provide no common mode rejections at lower frequencies, so they’re prone to outside interference, the type that causes annoying video hum and distortion. And along with picking up noise in the transmitting environment, they‘re subject to facility grounding issues.

    Avoid such issues by using extenders designed specifically to push Component video signals over longer distances. Order this sophisticated extension kit from Black Box. It contains all that you need to boost and extend standard or HDTV Component video signals over ordinary CAT5e or CAT6 cable—without any image distortion worries.

    The Component Video Extender Kit features group loop isolation (GLI) and radio frequency interference (RFI) immunity, which prevents video hum and distortion. What’s more, the transmitter and receiver units operate as active devices and match the impedance of the UTP cable perfectly at all frequencies, so there’s no image ghosting either.

    The kit’s transmitter and receiver offer easy set up. Just run the included Component cable between the transmitter and your video source (such as a DVD player or satellite receiver) and plug in a straight-through UTP or STP cable that leads to the receiver. At the remote end, you then connect the receiver unit to your display device (LCD TV or projector) with the kit’s other Component cable. Then, lastly, plug in the power adapter. The same adapter powers both transmitter and receiver, and it can be conveniently plugged in at either end.

    You can also order the kit’s extender components separately, as individual transmitter (AC652A) and receiver (AC653A) units. Multiple receivers can also be used with our 8-Port Component/VGA Video Splitter (AC652A), which has eight RJ-45 outputs for extending to eight separate receiver locations.


    • Technical Specifications for Component Video Extender Kit:

    Bandwidth — 20 Hz–450 MHz
    CE Approval — Yes
    MTBF — 100,000 hrs. (calculated estimate)
    Resolutions Supported — All standard definition TV (SDTV) and high-definition TV (HDTV) resolutions from 480i to 1080p
    Standards — Analog Component video (YPbPr) or RGB signals with sync-on-green
    Distance (Maximum) — 480i, 576i: 1000 ft. (304.8 m);
    480p, 576p: 750 ft. (228.6 m);
    720p, 1080i: 500 ft. (152.4 m);
    1080p: 300 ft. (91.4 m)
    Video Level — 1.0 volt p-p on Y and 0.7 v p-p on Pb and Pr
    Connectors — Each unit: Component video: (1) YPbPr on (3) jacks;
    Power: (1) DC jack;
    Interconnect: (1) RJ-45
    Power — Output: 9 VDC (center-positive);
    Consumption: 850 mW (average)
    Size — Each unit: 1.1"H x 2.6"W x 2.6"D (2.8 x 6.6 x 6.6 cm)
    For individual extender components, order the:
  • Component Video Extender Transmitter (AC652A)
  • Component Video Extender Receiver (AC653A)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
