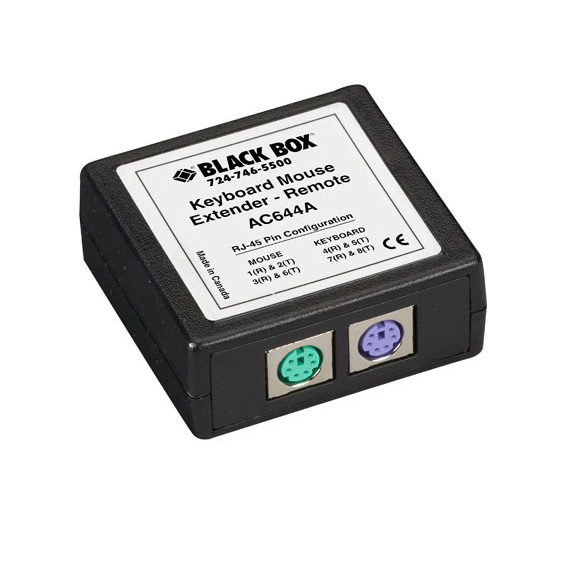

Keyboard/Mouse Extender Remote Unit

Works with the Keyboard/Mouse Extender Local Unit to send your keyboard and mouse signals up to 350 feet—without power!


LIFETIME DoubleDiamond™ Warranty (Standard)

Product Highlights

  • Here's a simple, non-powered way to extend your keyboard and mouse signals. You'll need one remote unit (AC644A) and one local unit (AC643A). For details on the local unit (AC643A), see Related Items.
  • Connect a PS/2® keyboard and mouse to a PC—up to 350 feet (106.7 m) away.
  • No power needed!
  • Guaranteed for life!

  • Further Details

  • Ideal for classrooms, digital signage, presentations, information systems, and more.
  • Use economical unshielded CAT5 cable.
  • Small and compact! No bulky power supplies needed.
  • Use in point-to-point configurations.
  • Easy to install.

  • Here's the easiest way you can extend your keyboard and mouse signals—without worrying about power hookups! With the Keyboard/Mouse Extender, you can set up your keyboard and mouse 350 feet (106.7 m) from your CPU and monitor or display.

    Make great presentations where the information is the focus, not you. When used in team presentations, you can control the keyboard and mouse at the back of a darkened room, while your partner highlights the display at the front of the room. If you're a teacher or training facilitator, you'll find these extenders work perfectly in the classroom. You can control the keyboard and mouse unobtrusively while the students focus solely on the display.

    You can also use the extenders to control digital signs in boardrooms or even auditoriums. They're ideal for any application where you need to set up your keyboard and mouse some distance from your CPU.

    You'll find these extenders extremely easy to use. Simply connect the local and remote units to your equipment. Then plug in your inexpensive unshielded CAT5 or higher cable. There are no power supplies to worry about!

    Use the extenders in pairs: The local unit connects to a PS/2® keyboard and mouse. The remote units connects to the PC. A USB keyboard and mouse may be connected using a USB-to-PS/2 adapter.

    NOTE: The Keyboard/Mouse Extender must be used in pairs, which can be two AC644As, one AC644A and one AC643A, or two AC643As.

    Bandwidth DC to 1 MHz
    Cable Unshielded CAT5 or better
    Distance 350 ft. (106.7 m)
    Enclosure ABS fire-retardant plastic
    Pinning Configuration Reverse polarity sensitive; Use T568A or T568B straight-pinned wiring;
    Mouse: Ring: Pins 1 and 3; Tip: Pins 2 and 6;
    Keyboard: Ring: Pins 4 and 7; Tip: Pins 5 and 8
    Signals Mouse data, mouse clock, keyboard data, keyboard clock, Vcc, ground
    Transmission Transparent
    Temperature Operating: 32 to 131° F (0 to 55° C)
    CE Approval Yes
    Connectors Keyboard/mouse: (2) 6-pin mini DIN F;
    Cable: (1) RJ-45
    Size 1"H x 2.4"W x 2.3"D (2.54 x 6.1 x 5.8 cm)
    Weight 0.1 lb. (<0.1 kg)

    This product works with:
  • Keyboard/Mouse Extender Local Unit (AC643A)
  • VGA Source Balun (AC640A)
  • VGA Display Baluns (AC641A–AC641A)
  • VGA Extender (AC555A)
  • CAT5 Solid-Conductor Cables (EYN737MS)
