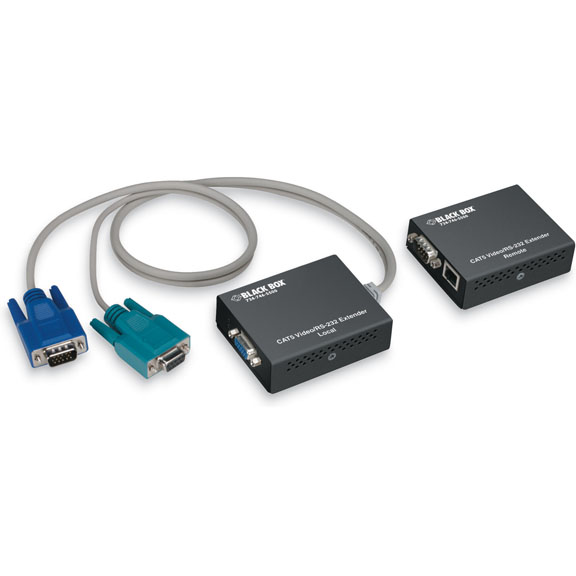

AC163A

Photo may show similar product

Other views

CAT5 Video/RS-232 Extender Kit

Extend video and RS-232 signals up to 360 feet!

AC163A

Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • A one-to-one computer video and RS-232 signal extender.
  • Extends high-resolution VGA up to 360 feet from the host PC.
  • Plug-and-play local and remote units communicate over easy-to-install shielded CAT5 cable.


  • Further Details

    The BLACK BOX® CAT5 Video/RS-232 Extender Kit makes it easy to broadcast a video image on a screen up to 360 feet away or remotely control a video projector that has RS-232 serial connectors. With the kit, it’s simple and straightforward!

    The CAT5 Video/RS-232 Extender Kit has many applications! It's not only ideal for conference room and classroom environments, but it's also great for point-of-sale retail settings. For example, you can use the extenders to connect a plasma screen in a high-traffic area while maintaining control of the on-screen information through a locally attached PC and monitor.

    The system uses bidirectional RS-232 for transmit and receive signals. And because local and remote units use shielded twisted pair for communications, the kit is easy to connect. Plus, there's no extra cable clutter!

    This product works with:
    • CAT5 100-MHz Shielded Stranded-Conductor Bulk Cable, 4-Pair (EVMSL03A)
    • VGA Video Extension Cable, Male/Male (EVNPS05-MM)
    • DB9 Extension Cable, Male/Male (EDN12H-MM)
    Questions? Contact Tech Support.

    Distance (Maximum) 360 ft. (110 m) over shielded CAT5 cable
    Resolution (Maximum) 1600 x 1200 at 75 Hz
    Connectors Local unit: PC VGA Card: (1) HD15 F on a 2-ft. (0.6-m) cable;
    PC COM port: (1) DB9 F on 2-ft. (0.6-m) cable;
    CAT5 STP: (1) RJ-45 shielded;
    Local monitor: (1) HD15 F;
    Remote unit: Video out: (1) HD15 F;
    RS-232: (1) DB9 M;
    CAT5 STP: (1) RJ-45 shielded
    Indicators Both units: (2) LEDs: Power, Transmit Video
    Power 100–230 VAC, 50–60 Hz, autosensing, external
    Size Both units: 0.9“H x 2.5“W x 3“D (2.3 x 6.4 x 7.6 cm)
    Weight Both units: 0.3 lb. (0.1 kg)
    This product works with:
    • CAT5 100-MHz Shielded Stranded-Conductor Bulk Cable, 4-Pair (EVMSL03A)
    • VGA Video Extension Cable, Male/Male (EVNPS05-MM)
    • DB9 Extension Cable, Male/Male (EDN12H-MM)
    Questions? Contact Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

    Manuals

    • CAT5 Video/RS-232 Extender Kit
      Installation/User (Oct-02)

    Product Data Sheets

    Application Diagrams


    Accessory: EDN12H-0025-MF

    DB9 Extension Cable with EMI/RFI Hoods, Beige, Male/Female, 25-ft. (7.6-m)

    DB9 Extension Cable with EMI/RFI Hoods, Beige, Male/Female, 25-ft. (7.6-m)

    Double Diamond Warranty
    Extended Double Diamond™ Warranty Available (3 Additional Year)
    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The CAT5 Video/RS-232 Extender Kit comes with a standard 3 Year warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.
