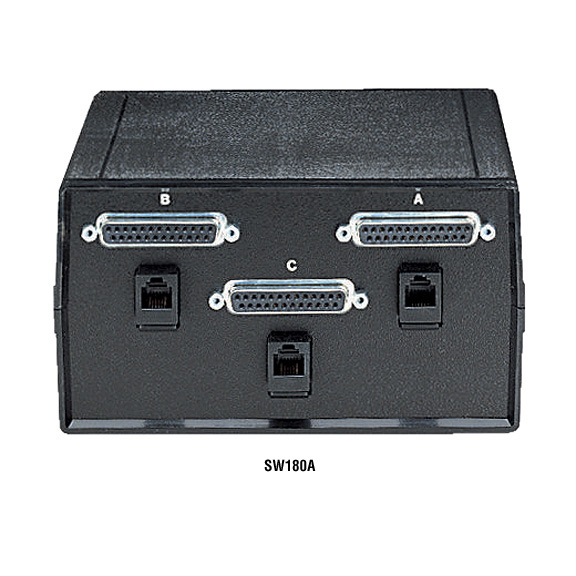

SW180A

Photo may show similar product

Other views

ABC Dual Switches, Chassis Style B

Two switches in one.

SW180A

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • These dual switches have one common port (C) with a DB25 connector and one common port (C) with an RJ-11, RJ-45, DB25, or 4-wire terminal strip.
  • Each port (A or B) has two standard female connectors.
  • Guaranteed for life!


  • Description

    ABC Dual Switches, DB25 and RJ-11, Chassis Style B


    Quick Facts

  • These dual switches have one common port (C) with a DB25 connector and one common port (C) with an RJ-11, RJ-45, DB25, or 4-wire terminal strip.
  • Each port (A or B) has two standard female connectors.
  • Guaranteed for life!

  • Further Details

    These switches also have two connectors for each switch position (A or B).

    Switch two devices connected to port A or two devices connected to port B simultaneously.


    Technical Specifications for ABC Dual Switches, Chassis Style B:

    Leads Supported — SW180A: DB25: 25, RJ-11: 4;
    SW182A: DB25: 25, RJ-45: 8;
    SW184A, SW186A: DB25: Dual ABC 24 leads, leads 2–25 switched and Pin 1 tied common;
    SW188A: DB25: 25, 4-wire terminal strip: 4
    MTBF — 25,000 cycles
    Relative Humidity — Operating or Storage: Up to 95%, noncondensing
    Temperature Tolerance — Operating: 32 to 114° F (0 to 45° C);
    Storage: -40 to +176° F (-40 to +80° C)
    Connectors — SW180A: (3) DB25, (3) RJ-11; SW182A: (3) DB25, (3) RJ-45; SW184A, SW186A: (6) DB25; SW188A: (3) DB25, (3) 4-wire terminal strip
    Size — Chassis Style B: 3.5"H x 6"W x 6.3"D (8.9 x 15.2 x 16 cm)
    Weight — 1.5 lb. (0.7 kg)
    These products work with:
    • Gender Changers (FA402-R2, FA412-R2)
    • DB25 Extension Cable (BC00701)
    Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ABC Dual Switches, Chassis Style B:

    Application Diagrams


    Connect your ABC Dual Switches, Chassis Style B with:

    Accessory: BC00706

    DB25 Extension Cable, DB25 Male, DB25 Male, 10-ft. (3.0-m)

    DB25 Extension Cable, DB25 Male, DB25 Male, 10-ft. (3.0-m)

    Double Diamond Warranty

    Extended LIFETIME Warranty Available


    Protect your purchase with an additional LIFETIME Double Diamond™ warranty!
    Cost: $0.00

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The ABC Dual Switches, Chassis Style B comes with a standard Lifetime warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    ABC Dual Switch, DB25 and RJ-45, Chassis Style B SW182A $172.95

    ABC Dual Switch, DB25 and DB25 for RS-232, Chassis Style B SW184A $193.95

    ABC Dual Switches, Chassis Style B SW186A $179.95

    ABC Dual Switches, Chassis Style B SW188A $128.95
