Premises Security > Access Control

click photo to enlarge

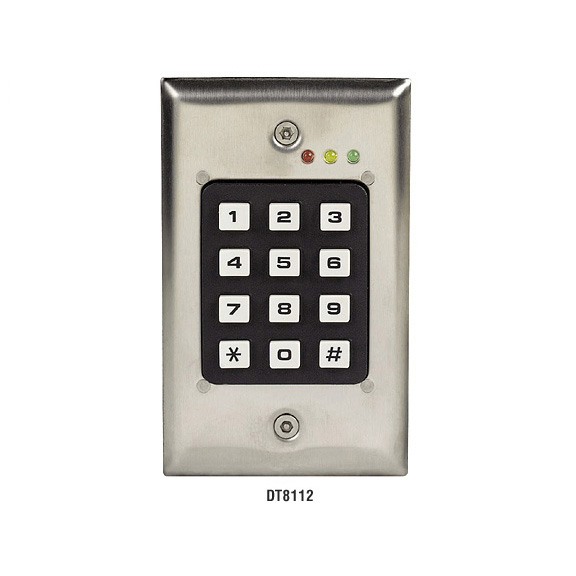

DT8112-WR

Photo may show similar product

Other views

8112 Series Digital Keypads

User-programmable keypads for controlling access doors and gates.

DT8112-WR


Lifetime Warranty

Product Highlights

  • Provide a cost-effective solution for control of independent electromagnetic doors and gates.
  • All programming can be done on the 12-key front panel without the need for a separate programmer.
  • Guaranteed for life!

  • Description

    8112 Series Digital Keypads, Weather-Resistant


    Quick Facts

  • Provide a cost-effective solution for control of independent electromagnetic doors and gates.
  • All programming can be done on the 12-key front panel without the need for a separate programmer.
  • Guaranteed for life!

  • Further Details

  • Store up to 120 valid user codes from 1 to 6 digits long in nonvolatile EEPROM memory—codes and instructions aren’t lost if there’s a power loss!
  • Main relay outputs 6 amps and has a surge capacity of 10 amps.
  • Three auxiliary outputs can be individually timed or function as toggle switches. Trigger them individually or in combination by code.
  • Remote activation input to activate any combination of outputs. You can use this input to connect a request-to-exit device.
  • The Standard model, which is for indoor use only, mounts to a single-gang back box.
  • Weather-Resistant models’ membrane overlay protects them from moisture when mounted in an exterior area. The DT8112-WRXWB model comes with a surface-mount back box for easy mounting.

  • Technical Specifications for 8112 Series Digital Keypads:

    Main Relay Rating — 6-A form C relay rated with a 10-A surge capacity
    Operating Environment —
    Temperature: -20 to +130° F (-28 to +54° C);
    Humidity: Up to 90% noncondensing
    Output Current Limits — 12 VDC: 500 mA (sink);
    24 VDC: Unregulated 50 mA (sink) with J6 jumper Off
    Size — Keypad plate: 4.5"H x 2.8"W x 1.5"D (11.4 x 7.1 x 3.8 cm);
    Board: 2.9"H x 1.8"W x 1"D (7.4 x 4.6 x 2.5 cm)
    Warranty — Lifetime
    NOTE: WR models are not weatherproof. If they’re directly exposed to the elements, we recommend putting them under a PLEXIGLAS® cover.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for 8112 Series Digital Keypads:


    Connect your 8112 Series Digital Keypads with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A Lifetime warranty is included.

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    The most complete product warranty exclusively from Black Box

    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

    Worry-Free Purchases

    If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

    Coverage

    Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

    Lifetime Guarantees

    Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

    Fast Service

    During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Extra Coverage

    Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

    No-Risk 45-Day Return Policy

    If it's not right, send it back.
    (Excludes custom built products)

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! Forget It.
    Tech Support Hotline 100% FREE! $$$
    Product SKU Price Quantity
    8112 Series Digital Keypads DT8112-WR $250.95

    8112 Series Digital Keypads DT8112 $200.95
