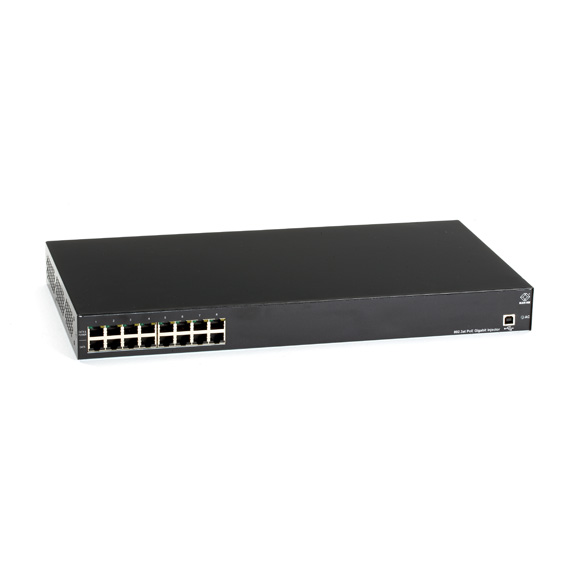

802.3at PoE Gigabit Injector, 8-Port

Gigabit speed plus extra power for high-wattage devices.

LPJ008A-T

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • An 8-port, midspan injector that's 802.3at compatible for devices requiring higher wattage.
  • Provides 33.6 W of safe Power over Ethernet (PoE) Plus power to each device (total output power: 269 W).
  • Supports Gigabit Ethernet data connections for high-speed equipment.

  • Description

    802.3at PoE Gigabit Injector, 8-Port


    Quick Facts

  • An 8-port, midspan injector that's 802.3at compatible for devices requiring higher wattage.
  • Provides 33.6 W of safe Power over Ethernet (PoE) Plus power to each device (total output power: 269 W).
  • Supports Gigabit Ethernet data connections for high-speed equipment.

  • Further Details

  • An economical wiring solution. Carries both data and power over a single Ethernet cable.
  • UNH-IOL test lab certified for interoperability with other PoE equipment.
  • Powers 802.3at compliant devices, which require more power than that provided by standard PoE.
  • Ideal for multiradio wireless access points, PTZ security cameras, IP phones containing streaming video displays, and LCDs.
  • Enables you to avoid installing AC power at a remote camera, access point, or thin client. Move equipment from room to room without costly, time-consuming rewiring.
  • Supports 10-/100-/1000-Mbps midspan data connections on RJ-45 inputs/outputs.
  • Provides overvoltage and overcurrent overload protection as well as short circuit protection on the power output (per 802.3at specifications).
  • Overtemperature protection. Shuts down automatically without being damaged.
  • Diagnostic LEDs indicate 802.3at device detection and alert you to faults.
  • Equipped with a USB port for diagnostics and manual port control via a Windows® GUI.
  • Backward compatible with 802.3af standard equipment.
  • Performs "two-finger" classification sequence, determining if connected devices require 802.3at-level power.
  • Also supports connections to Cisco® legacy equipment, including Cisco AP1250 Series access points running in full power mode.
  • Simple plug-and-play installation.
  • Just 1U high. Easy to install in a rack or cabinet with the included mounting kit.
  • RoHS compliant.


  • Technical Specifications for 802.3at PoE Gigabit Injector, 8-Port:

    Compliance cUL/UL®
    CE Approval Yes
    RoHS Compliance Yes
    Connectors Data in: (8) RJ-45 (10/100/1000);
    Data/PoE out: (8) RJ-45 (10/100/1000);
    USB diagnostics port: (1) USB Type B;
    Indicators Green LED: Power detected "CONNECT";
    Flashing green LED: 802.3af detected "CONNECT" at 15.4 W;
    Yellow LED: Fault detected
    Power AC input voltage range: 90-264 VAC;
    AC input voltage rating: 100-240 VAC, 47-63 Hz;
    Output: 33.6 W per port
    Power inlet: (1) IEC 320 (3-pin)
    Size 1.75"H (1U) x 17.25"W x 9"D (4.4 x 44 x 23 cm)
    Weight 8.5 lb. (3.9 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for 802.3at PoE Gigabit Injector, 8-Port:

    Manuals

    • 802.3af (8-Port) PoE Gigabit Injector User Manual
      User Manual for 802.3af (8-Port) PoE Gigabit Injector (2)

    Product Data Sheets

    Black Box Explains


    Connect your 802.3at PoE Gigabit Injector, 8-Port with:

    Accessory: EVNSL85-0010

    GigaBase 350 CAT5e Patch Cable, Snagless Boots, Beige, 10-ft. (3.0-m)

    GigaBase 350 CAT5e Patch Cable, Snagless Boots, Beige, 10-ft. (3.0-m)

    Accessory: EVNSL85-0015

    GigaBase 350 CAT5e Patch Cable, Snagless Boots, Beige, 15-ft. (4.5-m)

    GigaBase 350 CAT5e Patch Cable, Snagless Boots, Beige, 15-ft. (4.5-m)
