Networking > PoE

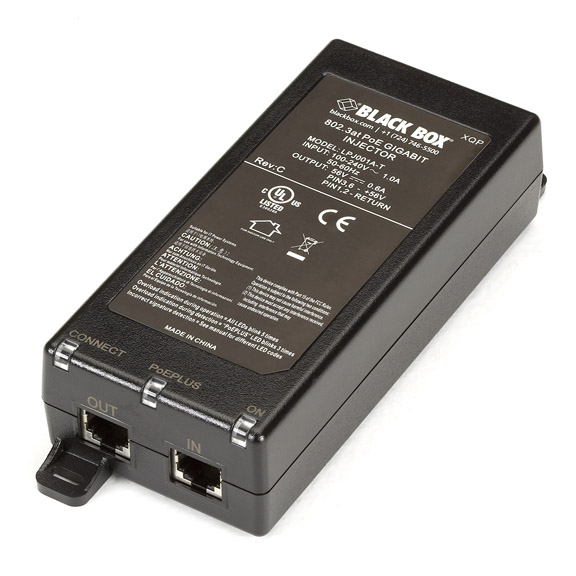

click photo to enlarge

LPJ001A-T

Photo may show similar product

Other views

802.3at PoE Gigabit Injector, 1-Port

Gigabit speed plus extra power for high-wattage devices.

LPJ001A-T

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • A single-port, midspan injector that’s 802.3at compatible for devices requiring higher wattage.
  • Provides 33.6 W of safe Power over Ethernet (PoE) Plus power and it supports Gigabit data speeds.
  • UNH-IOL test lab certified for interoperability with other PoE equipment.

  • Description

    802.3at PoE Gigabit Injector, 1-Port


    Quick Facts

  • A single-port, midspan injector that’s 802.3at compatible for devices requiring higher wattage.
  • Provides 33.6 W of safe Power over Ethernet (PoE) Plus power and it supports Gigabit data speeds.
  • UNH-IOL test lab certified for interoperability with other PoE equipment.

  • Further Details

  • An economical wiring solution. Carries both data and power over a single Ethernet cable.
  • Powers 802.3at compliant devices, which require more power than that provided by standard PoE.
  • Ideal for multiradio wireless access points, PTZ security cameras, IP phones containing streaming video displays, and LCDs.
  • Enables you to avoid installing AC power at a remote camera, access point, or thin client. Move equipment from room to room without costly, time-consuming rewiring.
  • Supports 10-/100-/1000-Mbps midspan data connections on an RJ-45 input/output.
  • Provides overvoltage/overcurrent overload protection as well as short circuit protection on the power output (per 802.3at specifications).
  • Diagnostic LEDs indicate 802.3at device detection and alert you to faults.
  • Backward compatible with 802.3af standard equipment.
  • Performs “two-finger” classification sequence, determining if the connected device requires 802.3at-level power.
  • Also supports connections to Cisco® legacy equipment, including Cisco AP1250 Series access points running in full power mode.
  • Simple plug-and-play installation.
  • Compact, weighs less than half a pound, and can be easily wallmounted.
  • RoHS compliant.


  • Technical Specifications for 802.3at PoE Gigabit Injector, 1-Port:

    Compliance — cUL/UL®
    Load (Maximum) — 0.60 A
    Regulation — Line and load: 54–57 VDC under all conditions
    CE Approval — Yes
    RoHS Compliance — Yes
    Connectors — Data in: (1) RJ-45 (10/100/1000);
    Data/PoE out: (1) RJ-45 (10/100/1000);
    Power inlet: (1) IEC 320 (3-pin)
    Indicators — Green LED 1: Input power “ON”;
    Green LED 2: Valid 802.3at load detected and connected;
    Red LED: Fault detected
    Power — AC input voltage range: 90–264 VAC;
    AC input voltage rating: 100–240 VAC, 47–63 Hz;
    Output: 33.6 W at 56 VDC
    Size — 1.4"H x 2.6"W x 5.5"D (1 x 6.6 x 14 cm)
    Weight — 0.4 lb. (0.2 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for 802.3at PoE Gigabit Injector, 1-Port:

    Manuals

    • 802.3at PoE (1 Port) Gigabit Injector User Manual
      User Manual for 802.3at PoE (1 Port) Gigabit Injector (2)

    Product Data Sheets

    Black Box Explains
