Networking > PoE

click photo to enlarge

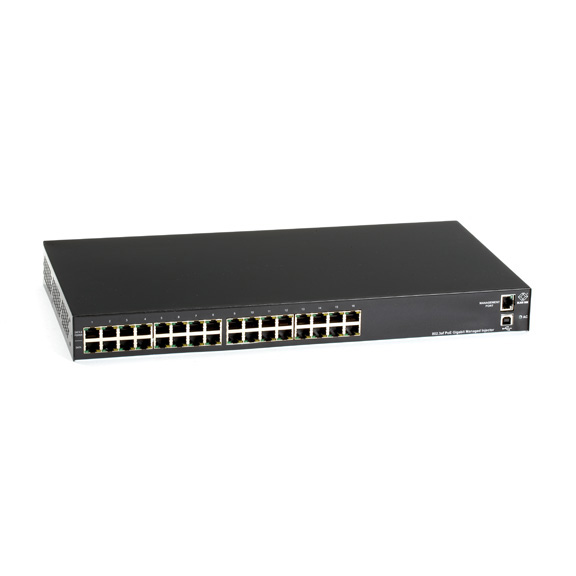

LPJ016A-FM

Photo may show similar product

Other views

802.3af PoE Gigabit Managed Injector, 16-Port

A managed 16-port PoE injector for reliably powering multiple PoE devices.

LPJ016A-FM

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • A reliable, 802.3af Power over Ethernet (PoE) midspan injector for 16 PoE devices.
  • Provides 15.4 W per port of safe power to each PoE device (total power output: 250 W).
  • Supports Gigabit Ethernet data speeds.
  • SNMP manageable.

  • Description

    802.3af 16-Port 10/100/1000 Midspan PoE Injector, Managed


    Quick Facts

  • A reliable, 802.3af Power over Ethernet (PoE) midspan injector for 16 PoE devices.
  • Provides 15.4 W per port of safe power to each PoE device (total power output: 250 W).
  • Supports Gigabit Ethernet data speeds.
  • SNMP manageable.

  • Further Details

  • UNH-IOL test lab certified for interoperability with other PoE equipment.
  • An economical wiring solution. Carries both data and power over Ethernet cable run to each port.
  • Use to power various VoIP phones, security system cameras, wireless network access points, Bluetooth® access points, and other 802.3af-compatible equipment.
  • Enables you to avoid the cost and hassle of installing AC power at remote cameras or door scanners.
  • Supports 10-/100-/1000-Mbps midspan data connections on 16 RJ-45 inputs/outputs.
  • Offers overload and voltage control. Provides fully compliant detection and disconnect.
  • Protection includes overvoltage/ current overload and short circuit protection on the power output (per 802.3af specifications).
  • Overtemperature protection. Provides automatic shutdown without causing any damage.
  • Diagnostic LEDs indicate detection of power and faults.
  • Also has a USB port for diagnostics and manual port control via a Windows® GUI.
  • Simple plug-and-play installation. No power management required.
  • Supports connections to Cisco® legacy equipment, too.
  • Just 1U high, easy to install in a rack or cabinet with the included mounting kit.
  • RoHS compliant.


  • Technical Specifications for 802.3af PoE Gigabit Managed Injector, 16-Port:

    Compliance cUL/UL®
    CE Approval Yes
    RoHS Compliance Yes
    Connectors Data in: (16) RJ-45 (10/100/1000);
    Data/PoE out: (16) RJ-45 (10/100/1000);
    USB diagnostics port: (1) USB Type B;
    Power inlet: (1) IEC 320 (3-pin)
    Indicators Green LED: Power detected "ON";
    Yellow LED: Fault detected
    Power AC input voltage range: 90-264 VAC;
    AC input voltage rating: 100-240 VAC, 47-63 Hz;
    Output: 15.4 W per port
    Size 1.75"H (1U) x 17.25"W x 9"D (4.4 x 44 x 23 cm)
    Weight 9 lb. (4.1 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for 802.3af PoE Gigabit Managed Injector, 16-Port:

    Manuals

    • 802.3af (8-Port) PoE Gigabit Injector User Manual
      User Manual for 802.3af (8-Port) PoE Gigabit Injector (2)

    Product Data Sheets

    Black Box Explains

    Videos


    Connect your 802.3af PoE Gigabit Managed Injector, 16-Port with:

    Accessory: EVNSL85-0010

    GigaBase 350 CAT5e Patch Cable, Snagless Boots, Beige, 10-ft. (3.0-m)

    GigaBase 350 CAT5e Patch Cable, Snagless Boots, Beige, 10-ft. (3.0-m)

    Accessory: EVNSL85-0015

    GigaBase 350 CAT5e Patch Cable, Snagless Boots, Beige, 15-ft. (4.5-m)

    GigaBase 350 CAT5e Patch Cable, Snagless Boots, Beige, 15-ft. (4.5-m)

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A warranty is included.

    Extended 1 Year Warranty Available


    Protect your purchase with an additional 1 Year Double Diamond™ warranty!
    Cost: $72.10

    Extended 3 Year Warranty Available


    Protect your purchase with an additional 3 Year Double Diamond™ warranty!
    Cost: $144.19

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most of our products come with a one- or two-year warranty. Some products—such as copper cables, manual switches, cabinets, and racks—are even guaranteed for life!

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product* for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! ?
    Tech Support Hotline 100% FREE! $$$

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    You can find this product in the following subcategory(s)


    Add to Cart

    Price: $771.95

    Quantity Available: 8

    Quantity

    Warranty

    Total

    Shipping Info

    In Stock - orders received before 5PM ET ship same day

    Weight: 10.125 lbs.
    HxWxD: 4.25 x 13 x 20.5 in.
