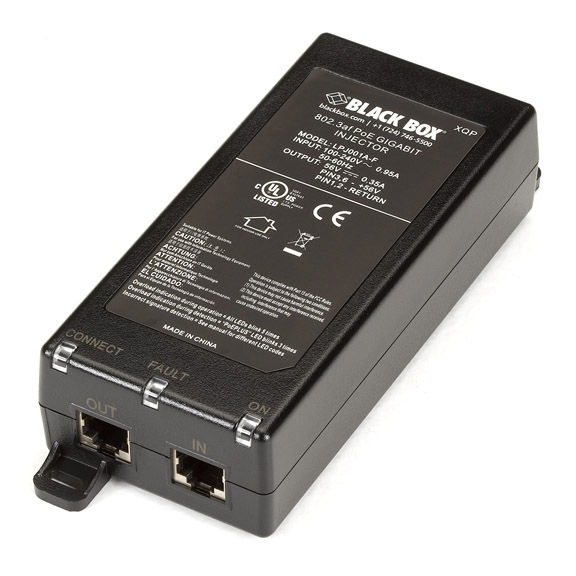

802.3af PoE Gigabit Injector, 1-Port

A single-port PoE injector that supports Gigabit Ethernet data.

LPJ001A-F

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • A single-port, IEEE 802.3af standard midspan injector for reliable Power over Ethernet (PoE).
  • Injector provides 19.6 W of safe PoE power and supports Gigabit data speeds.
  • UNH-IOL test lab certified for interoperability with other PoE equipment.


  • Description

    802.3af PoE Gigabit Injector, 1-Port


    Quick Facts

  • A single-port, IEEE 802.3af standard midspan injector for reliable Power over Ethernet (PoE).
  • Injector provides 19.6 W of safe PoE power and supports Gigabit data speeds.
  • UNH-IOL test lab certified for interoperability with other PoE equipment.

  • Further Details

  • An economical wiring solution. Carries both data and power over a single Ethernet cable.
  • Use to power IP phones, security cameras, wireless network access points, Bluetooth® access points, IP print servers, and other 802.3af-compatible equipment.
  • Enables you to avoid the cost and hassle of installing AC power at a remote camera or door scanner.
  • Supports 10-/100-/1000-Mbps midspan data connections on an RJ-45 input/output.
  • Offers overload and voltage control. Provides fully compliant detection and disconnect.
  • Protection includes overvoltage/overcurrent overload and short circuit protection on the power output (per 802.3af specifications).
  • Diagnostic LEDs indicate adverse power conditions. A red "FAULT" LED signals to you an overload or short circuit.
  • Also detects unstable current measurements, low voltage, incorrect resistive signature, and more.
  • Simple plug-and-play installation.
  • Supports connections to Cisco® legacy equipment, too.
  • Compact, weighs less than half a pound, and can be easily wallmounted.
  • RoHS compliant.


  • Technical Specifications for 802.3af PoE Gigabit Injector, 1-Port :

    Compliance cUL/UL®
    Regulation Line and load: +/- 4%
    Load (Maximum) 0.35 A
    CE Approval Yes
    RoHS Compliance Yes
    Connectors Data in: (1) RJ-45 (10/100/1000);
    Data/PoE out: (1) RJ-45 (10/100/1000);
    Power inlet: (1) IEC 320 (3-pin)
    Indicators Green LED 1: Power detected "ON";
    Red LED: Fault detected;
    Green LED 2: Valid IEEE 802.3af load detected and connected
    Power AC input voltage range: 90-264 VAC;
    AC input voltage rating: 100-240 VAC, 47-63 Hz;
    Output: 19.6 W at 56 VDC
    Size 1.4"H x 2.6"W 5.5"D (1 x 6.6 x 14 cm)
    Weight 0.4 lb. (0.2 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
