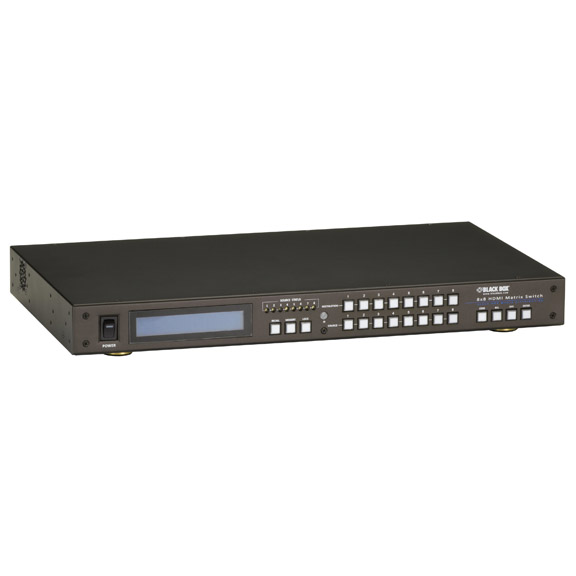

8 x 8 HDMI Matrix Switch

Easy matrix switching for up to eight HDMI sources and eight HDMI displays.

VSW-HDMI8X8-B

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Switch high-resolution video plus audio from eight sources to eight displays in any combination.
  • Control from the front panel, with the included IR remote controller, or from an RS-232 console.
  • Send digital signals to any or all outputs simultaneously.

  • Description

    8 x 8 HDMI Matrix Switch


    Quick Facts

  • Switch high-resolution video plus audio from eight sources to eight displays in any combination.
  • Control from the front panel, with the included IR remote controller, or from an RS-232 console.
  • Send digital signals to any or all outputs simultaneously.

  • Further Details

  • Supports data rates up to 6.75 Gbps for resolutions up to 1920 x 1200 and 1080p, as well as 3D formats.
  • Outputs digital video TMDS formats in 10-, 12-, 16-bit, or 32-bit Deep Color.
  • HDCP compliant and Blu-ray ready. Supports auto EDID function, as well as manual copy for compatibility with every monitor.
  • Ideal for corporate theaters, conference rooms, classroom and training facilities, video broadcasting, and digital signage applications.
  • Compatible with all HDMI source devices, PC monitors, plasma HD displays, HDTV and audio receivers/amplifiers.
  • Supports digital audio: Dolby TrueHD, Dolby Digital, Dolby Digital EX, DTS, DTS-HD, DTS-HD Master, DTS-EX, PCM, PCM2, and LPCM2.
  • Front-panel LEDs show automatic scanning input and output status.
  • Remembers the last state during a power cycle.
  • Rackmountable 1U-high unit. Rackmount ears are included.
  • The 8 x 8 HDMI Matrix Switch provides unrivaled versatility when controlling video output on high-resolution HDMI displays. Each input can be routed to any output, or the same input can be routed to all outputs or any combination, eliminating the need to manually move cables to display HDMI video from different sources on different screens.

    The switch supports sharp, highly defined video and works with wide range of resolutions from PC XGA to WUXGA 1920 x 1200 and HDTV/DTV resolutions 480i/480p, 576i/576p, 720p, 1080i, and 1080p. It also carries the high-speed digital video signaling of TMDS formats for 10-, 12-, 16-, or 32-bit Deep Color. Plus, it provides support for 19:10 aspect ratio.

    In addition to built-in EDID tables and manual copy functions, the switch also features unique, automatic EDID handling, which ensures optimum display mode and compatibility with any connected HDMI or DVI monitor at all times, without having to manually copy the EDID table from one of the screens.

    It's ideal for any venue where multiple high-definition displays must be managed: corporate theaters, meeting rooms, classrooms, and broadcasting studios. When used with digital signage, the switch enables you to quickly switch a display from one digital signage source to another.

    Switching is easy—switch using front-panel buttons, the included IR remote controller, or an RS-232 connection.

    What's included:
    • Main console unit
    • IR remote control
    • IR extender receiver
    • RS-232 cable
    • 115–230-VAC, 12-VDC, 5-A universal power supply
    • 19" rackmount brackets
    • User manual


    Technical Specifications for 8 x 8 HDMI Matrix Switch:

    Audio Up to Dolby True-HD and DTS-HD
    Bandwidth 6.75 Gbps
    EDID Function Auto, manual copy or fixed modes
    Frequency Bandwidth 225 MHz
    Resolutions Supported 480p, 720p, 1080i, 1080p up to 1920 x 1200
    CE Approval Yes
    RoHS Yes
    Connectors Input: (8) HDMI F;
    Output: (8) HDMI F;
    Control: (1) DB9 F (RS-232)
    Power Input: 115-230 VAC, 50-60 Hz, external autosensing;
    Output: 12 VDC;
    Consumption: Less than 4 A
    Size 1.75"(1U)H x 19"W x 7.9"D (4.3 x 48.3 x 20.1 cm)

    What's included:
    • (1) main console unit
    • (1) IR remote control
    • (1) IR extender receiver
    • (1) RS-232 cable
    • 115–230-VAC, 12-VDC, 5-A universal power supply
    • 19" rackmount brackets
    • User manual


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
