Networking > Switches

click photo to enlarge

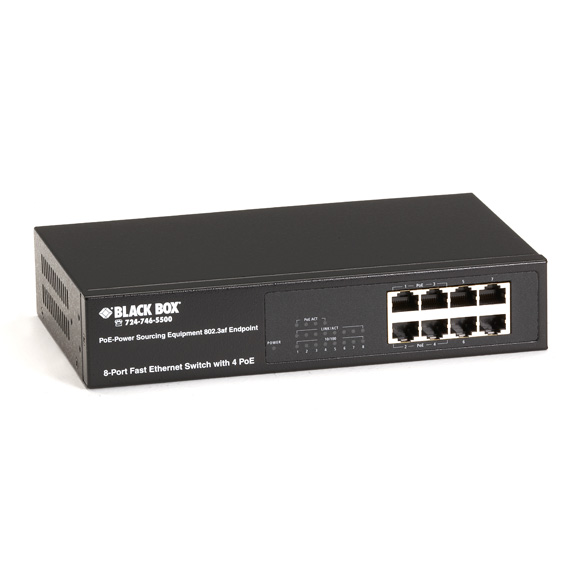

LPB208A-R2

Photo may show similar product

Other views

8-Port Unmanaged 10/100 Fast Ethernet Switch with 4 PoE Ports

Save on infrastructure and power up to four devices with PoE.

LPB208A-R2

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Enables you to centralize power distribution and backup without increasing infrastructure.
  • Conforms to IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, and IEEE 802.3x flow control standards.
  • Works with wireless access points, VoIP phones, security cameras, and more.
  • Powers end devices directly through LAN cables.

  • Description

    8-Port Unmanaged 10/100 Fast Ethernet Switch with 4 PoE Ports


    Quick Facts

  • Enables you to centralize power distribution and backup without increasing infrastructure.
  • Conforms to IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, and IEEE 802.3x flow control standards.
  • Works with wireless access points, VoIP phones, security cameras, and more.
  • Powers end devices directly through LAN cables.

  • Further Details

  • Has thermal shutdown protection to guard against overheating.
  • Autodetects powered devices and consumption levels.
  • Supports 10/100 Mbps and autodetects half- and full-duplex.
  • Features Auto MDI/MDI-SX function for auto TX/RX swap.
  • Has a smart feature for PD on/off, PD detection, power level, PD status and power feeding priority.
  • Supports 802.3x flow control pause packet for full-duplex.


  • This desktop switch seamlessly integrates with the rest of your network and provides up to 1.6 GB of aggregate bandwidth.

    PoE supplies power to end devices, such as wireless access points or VoIP phones, directly through your existing LAN cables. This enables you to centralize power distribution and backup without increasing infrastructure.


    Technical Specifications for 8-Port Unmanaged 10/100 Fast Ethernet Switch with 4 PoE Ports:

    Buffer Memory — 96 KB on chip frame buffer
    Data Transfer Rate — 100 Mbps: 148,800 pps;
    10 Mbps: 14,880 pps
    Flow Control — Full-duplex: IEEE 802.3x compliant;
    Half-duplex: backpressure flow control
    MAC Addresses — 1K
    Operating Environment — Temperature: 32 to 104° F (0 to 40° C);
    Humidity: 5 to 95%, noncondensing
    Standards — IEEE 802.3/802.3u/802.3x, IEEE 802.3af Power over Ethernet
    Switching Method — Store and forward
    Transmission — 10/100 Mbps, full- or half-duplex
    CE Approval — Yes
    Power — 90–240 VAC, 50–60Hz, autosensing, internal power supply
    Size — 5.8"H x 2.6"W x 3.9"D (14.8 x 6.6 x 9.8 cm)
    Weight — 2.2 lb. (1 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for 8-Port Unmanaged 10/100 Fast Ethernet Switch with 4 PoE Ports:


    Connect your 8-Port Unmanaged 10/100 Fast Ethernet Switch with 4 PoE Ports with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A Two year warranty is included.

    Extended Two years for one Warranty Available


    Protect your purchase with an additional Two years for oneDouble Diamond™ warranty!
    Cost: $14.40

    Extended Three years for two Warranty Available


    Protect your purchase with an additional Three years for twoDouble Diamond™ warranty!
    Cost: $28.79

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    The most complete product warranty exclusively from Black Box

    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

    Worry-Free Purchases

    If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

    Coverage

    Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

    Lifetime Guarantees

    Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

    Fast Service

    During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Extra Coverage

    Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

    No-Risk 45-Day Return Policy

    If it's not right, send it back.
    (Excludes custom built products)

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! Forget It.
    Tech Support Hotline 100% FREE! $$$


    Add to Cart

    Price: $143.95

    Quantity

    Warranty

    Total

    In Stock

    Shipping Info

    In Stock - orders received before 8PM ET ship same day


    45-day return policy
