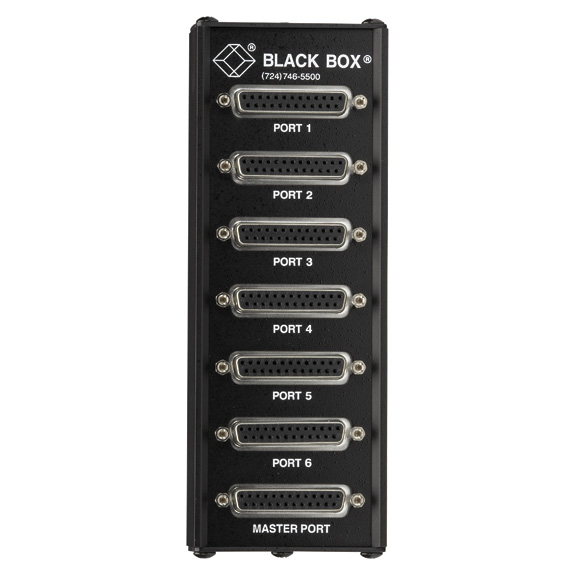

TL074A-R4

Photo may show similar product

Other views

6-Port (MS-6) Modem Splitter

Share one high-speed modem six ways and count your cost savings!

TL074A-R4

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Modem sharing for six users.
  • Includes a DB25 extension cable and a serial AT® adapter.
  • Perfect for workgroups that need limited data communications or only connect to the Internet occasionally.
  • Inexpensive, nonpowered, easy to use.
  • Use with sync or async devices.


  • Description

    6-Port (MS-6) Modem Splitter


    Quick Facts

  • Modem sharing for six users.
  • Includes a DB25 extension cable and a serial AT® adapter.
  • Perfect for workgroups that need limited data communications or only connect to the Internet occasionally.
  • Inexpensive, nonpowered, easy to use.
  • Use with sync or async devices.

  • Further Details

    Use our Modem Splitter to connect six terminals to one modem and save money—you won't need extra modems and extra lines!

    No special cables are needed. It uses ordinary straight-pinned cables for hookup, and includes a 6-ft. DB25 male/DB25 female extension cable and a serial DB9 female/DB25 male AT adapter.

    The Modem Splitter is transparent to speed and protocol, and works equally well in sync and async environments.

    A 3-Port Modem Splitter is also available. See "Similar Products."

    If you need port contention or advanced features such as prioritized port scanning, see our RS-232 Data Sharers (TL601A-R2) or our Programmable Sharing Device (TL304A) featured in the "Related Items" below.

    This product works with:
  • Extended-Distance Data Cables, 25-Conductor (EDN25T, EDN25C).
    Questions? Contact our FREE Tech Support.

  • Technical Specifications for 6-Port (MS-6) Modem Splitter:

    Leads Supported Pins 1–8, 15, 17, 20
    Main Channel Interface DTE
    Protocol Synchronous or asynchronous
    Subchannel Interface DCE
    Interface RS-232 (master port DTE, slave ports DCE)
    Connectors (7) DB25 F
    Size 7.5"H x 2.5"W x 1.3"D (19.1 x 6.4 x 3.3 cm)
    Weight 2 lb. (0.9 kg)
    This product works with:
  • Extended-Distance Data Cables, 25-Conductor (EDN25T, EDN25C).
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
