KVM > Extenders

click photo to enlarge

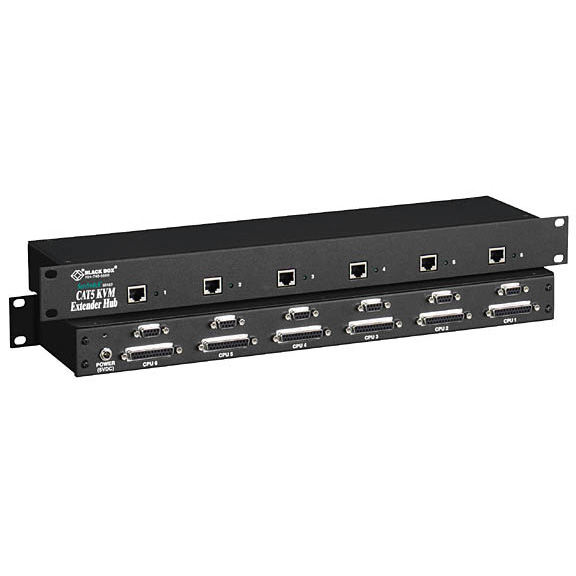

ACU1006DSRA

Photo may show similar product

Other views

6-Port Dual Access Rackmount ServSwitch Brand CAT5 KVM Extender Hub with Serial

Serial KVM extentions up to 1000 feet with dual access.

ACU1006DSRA

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • It’s like getting six extenders in one box!

  • Description

    6-Port Dual-Access Rackmount ServSwitch Brand CAT5 KVM Extender Hubs, with Serial


    Quick Facts

  • It’s like getting six extenders in one box!

  • Further Details

  • Attach two workstations to each CPU.
  • To convert your USB-style keyboard and mouse signals to PS/2, order the USB to PS/2 converter (KVUSB)
  • Fully adjustable video equalization for the best possible video quality.
  • Built-in surge protection.
  • Compatible with touch screens.


  • Put your CPUs or ServSwitch™ KVM switches where you want them—and get rackmount convenience! Plus, this hub uses inexpensive CAT5 cable, so you may be able to use cable you already have installed.

    The extender hub combines six local hubs into one rackmount chassis. Simply connect six remote units via CAT5 UTP and attach your CPUs with our Coax CPU Cable (EHN230). The hub performs complete PS/2® keyboard and mouse emulation for the attached CPUs.

    The hub requires no software, are operating-system independent, work with a variety of hardware including Microsoft® IntelliMouse®, and feature built-in surge protection to protect your CAT5 link.

    Our dual-access serial hub takes our single-access serial hub and adds six sets of KVM connections—one for each attached CPU. This enables you to attach two workstations to each CPU—one local and one remote.

    Use the local connections to monitor and diagnose the attached CPUs. Just plug the keyboard, monitor, and mouse into the connectors for the CPU you wish to monitor. Or add a ServSwitch and have local access to all CPUs.



    Technical Specifications for 6-Port Dual Access Rackmount ServSwitch Brand CAT5 KVM Extender Hub with Serial:

    Clamping Voltage — Up to 15 volts
    Compatibility — Keyboard: PC/AT®, PS/2;
    Monitor: VGA, Super VGA, XGA;
    Mouse: PS/2 mouse only (user)
    Resolution (Maximum) — 1280 x 1024: 300 ft. (91.4 m);
    1024 x 768: 1000 ft. (304.8 m)
    Serial Link — 9600 bps or 19.2 kbps, user selectable; 8 data bits, no parity, 1 stop bit (fixed)
    Connectors — Interconnect: (6) RJ-45; CPU: (6) DB25 F, (6) DB9 F; Keyboard and mouse: (12) 6-pin mini DIN F; Monitor: (6) HD15 F
    Power — 100/240 VAC, 50/60 Hz, external, autosensing, IEC connector and power cord
    Size —1.75“H (1U) x 19“W x 4.5“D (4.4 x 48.3 x 11.4 cm)
    This product works with:
    • Coax CPU Cable for CAT5 KVM Extenders (EHN230)
    • DB9 Extension Cable (with EMI/RFI Hoods) (EDN12H)
    • CAT5 100-MHz Solid-Conductor Bulk Cable, 4-Pair (EYN840A, EYN860A)
    • CAT5 100-MHz Solid-Conductor Cable, 4-Pair, Straight-Pinned (EYN737MS)

    Also works with:
    • AT PS/2 Mouse GHOST (AC244A)
    • 5-Pin DIN Male to 6-Pin Mini DIN Female Keyboard Adapter with 6“ Cable (FA222-R2)

    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for 6-Port Dual Access Rackmount ServSwitch Brand CAT5 KVM Extender Hub with Serial:


    Connect your 6-Port Dual Access Rackmount ServSwitch Brand CAT5 KVM Extender Hub with Serial with:

    Accessory: ACUSREM

    ServSwitch Brand CAT5 KVM Extender Hub Standalone Remote Unit, Serial (1000-ft. Maximum Distance)

    ServSwitch Brand CAT5 KVM Extender Hub Standalone Remote Unit, Serial 1000-ft. Maximum Distance

    Accessory: ACU1006SRA

    6-Port Rackmount ServSwitch Brand CAT5 KVM Extender Hub with Serial

    6-Port Rackmount ServSwitch Brand CAT5 KVM Extender Hub with Serial
