Video & Multimedia > Switches


click photo to enlarge

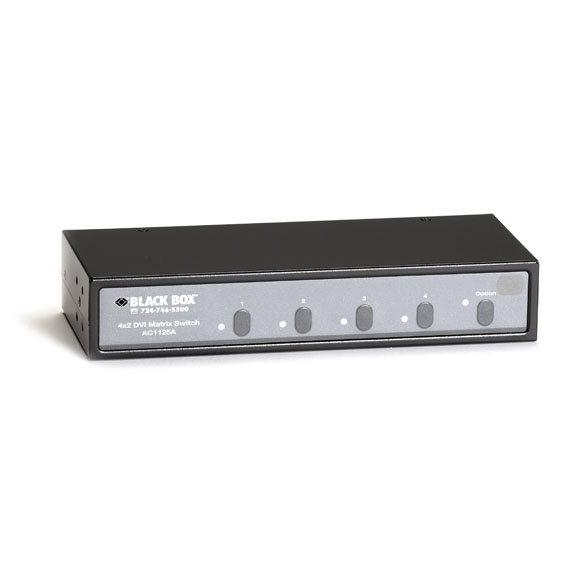

AC1125A

Photo may show similar product

Other views

4x2 DVI Matrix Switch with Audio and RS-232 Control

Output high-def video and audio from separate sources to two displays.

AC1125A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Routes 4 different DVI and audio signals to 2 different DVI monitors and speakers.
  • Ideal for digital signage display systems where you want to switch source inputs for screen output on various screens.
  • Switch using buttons on the front panel, with a PC connected via its RS-232 port, or by using the wireless remote control from up to 16.4 ft. (5 m) away.


  • Description

    4x2 DVI Matrix Switch with Audio and RS-232 Control


    Quick Facts

  • Routes 4 different DVI and audio signals to 2 different DVI monitors and speakers.
  • Ideal for digital signage display systems where you want to switch source inputs for screen output on various screens.
  • Switch using buttons on the front panel, with a PC connected via its RS-232 port, or by using the wireless remote control from up to 16.4 ft. (5 m) away.

  • Further Details

  • Switches both the video and audio directly.
  • Turn the video and audio on or off at each individual port.
  • Each output provides one video signal and one audio signal.
  • Features Auto Scan and selectable scan time interval.
  • 1U height saves rack space. Rackmount kit is available.
  • System settings are automatically retained. Recover your previous settings after power blackouts.


  • What's included:
  • Switch
  • Remote control
  • Power adapter
  • AC cord
  • User manual
  • IR Extension kit
  • (1) set of rubber footpads
  • Remote Control

  • Technical Specifications for 4x2 DVI Matrix Switch with Audio and RS-232 Control:

    Automatic Scan Interval 8, 15, 30, 45 seconds
    DVI Cable Length (Maximum) 16.4 ft. (5 m)
    Operating Temperature 41 to 104° F (5 to 40° C)
    Resolution Supported (Maximum) 1600 x 1200 at 60 Hz
    CE Approval Yes
    Connectors Video: Input: (4) DVI-D;
    Output: (2) DVI-D;
    Audio: Input: (4) 3.5-mm stereo jacks;
    Output: (2) 3.5-mm stereo jacks
    Power 100-240 VAC, 50-60 Hz, autosensing
    Size 1.6"H (1U) x 8.7"W x 3.8"D (4.1 x 22 x 9.7 cm)
    Weight 1.6 lb. (0.7 kg)
    What's included:
  • Switch
  • Remote control
  • Power adapter
  • AC cord
  • User manual
  • IR Extension kit
  • (1) set of rubber footpads
  • Remote Control


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
