Video & Multimedia > Switches

click photo to enlarge

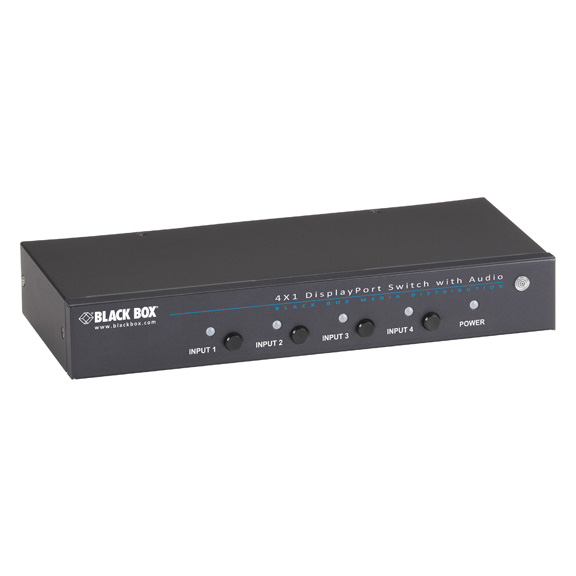

AVSW-DP4X1A

Photo may show similar product

Other views

4 x 1 DisplayPort Switch with Serial and Audio

Switch four DisplayPort sources to a single DisplayPort display along with analog audio.

AVSW-DP4X1A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Switch between four DisplayPort sources for output on a high-resolution DisplayPort display.
  • Control using front-panel push buttons, an IR remote controller, or via a serial connection.
  • Boasts HD resolutions up to 1080p.

  • Description

    4 x 1 DisplayPort Switch with Serial and Audio


    Quick Facts

  • Switch between four DisplayPort sources for output on a high-resolution DisplayPort display.
  • Control using front-panel push buttons, an IR remote controller, or via a serial connection.
  • Boasts HD resolutions up to 1080p.

  • Further Details

  • DisplayPort 1.1 compatible and HDCP 1.1 compliant* for protected content.
  • LEDs indicate which AV equipment source is being displayed.
  • Connect to PCs, consumer electronics devices, and displays with DisplayPort connectors.
  • Plug and play. No software required for operation.
  • Ideal for conference rooms, classrooms, and multimedia workstations.
  • Eliminates need to manually switch DisplayPort cables between sources.
  • DisplayPort ports transmit both audio and video simultaneously, but it also has separate 3.5-mm audio connectors.
  • Serial port enables control through a PC, serial controller device, or home theater system, integrating the entire AV environment.
  • Control with IR remote from up to 15 feet (5 m) away. To choose your source device, simply press a number button.
  • DisplayPort features locking connectors for more secure inputs/outputs—great for areas prone to accidental unplugging of AV equipment.

  • * NOTE: HDCP content displays on the selected source only; rebooting may be necessary when switching between HDCP content sources.


    Technical Specifications for 4 x 1 DisplayPort Switch with Serial and Audio:


    Resolution (Maximum) — Full HD (1920 x 1080), 1920 x 1200, 2560 x 1600
    CE Approval — Yes
    RoHS — Yes
    Connectors — Input: (4) DisplayPort 1.1 F; (4) 3.5-mm audio jacks; (1) 2.5-mm serial jack;
    Output: (1) DisplayPort 1.1 F; (1) 3.5-mm audio jack
    Power — External: Input: 100–240 VAC, 50–60 Hz;
    Output: 9 VDC, 1.5 A (max.)
    Size — 1.4"H x 8.7"W x 3.9"D (3.6 x 22.1 x 10 cm)
    Weight — 1.6 lb. (0.7 kg)

    What's included:
  • 9-VDC, 1.5-amp power supply (4-ft. attached cable)
  • (4) rubber feet
  • U.S. power cord (6-ft.)
  • IR remote control
  • Serial cable
  • 19" rackmount kit with mounting hardware
  • User manual


  • NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
