Datacom > Switches

click photo to enlarge

AC506A

Photo may show similar product

Other views

  • AC506A
  • AC506A

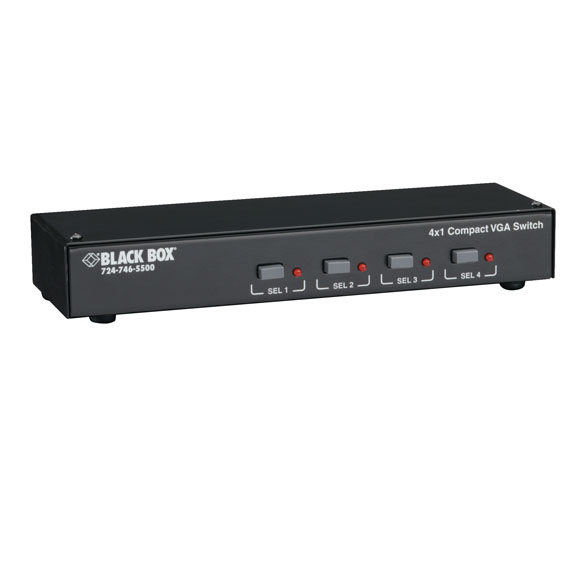

4 x 1 Compact VGA Switch

Switch four VGA video sources to a single monitor.

AC506A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Supports video cable distances up to 150 feet (45.7 m) and 1600 x 1200 resolution.
  • Control via an RS-232 control device (serial cable is included).
  • Or set the switch up to cycle between video sources automatically.
  • Buffered video output protects the signal integrity.


    • Description

    4 x 1 Compact VGA Switch


    Quick Facts

  • Supports video cable distances up to 150 feet (45.7 m) and 1600 x 1200 resolution.
  • Control via an RS-232 control device (serial cable is included).
  • Or set the switch up to cycle between video sources automatically.
  • Buffered video output protects the signal integrity.

    • Further Details

  • Automode detects active inputs and switches to them automatically. You assign port priority!
  • You can also blank and unblank an output via a serial port command.
  • LED indicates selected input source.
  • Fits into tight spaces and withstands heavy use.


    • The 4 x 1 Compact VGA Switch from Black Box goes much farther than ordinary video switches in both the distance and resolution it supports.

    This solid-state, electronic switch not only uses boosters to drive VGA video signals up to 150 feet (45.7 m), it also offers a crisp resolution of up to 1600 x 1200.

    Use the switch, for instance, in a conference room where four laptop users can take turns projecting their screen images onto a single big-screen VGA monitor seen by all. It’s also useful anywhere you need to use fewer monitors for displaying video sources.

    Control switching via an attached RS-232 device, or set it up to scan between VGA inputs at certain time intervals or display VGA inputs based on their priority. You can also blank output from one source or switch manually.

    What’s included:
  • 2 x 1 Compact VGA Switch
  • Serial cable
  • User’s manual


    • Technical Specifications for 4 x 1 Compact VGA Switch:

    Distance (Maximum) — 150 ft. (45.7 m) at XGA
    Resolution (Maximum) — 1600 x 1200
    Video Bandwidth — 250 MHz
    Video Level — 0 to 0.7 V p-p
    CE Approval — Yes
    RoHS — Yes
    Connectors — Video input: (4) HD15 F;
    Video output: (1) HD15 F;
    Serial: (1) 3.5-mm F (RS-232)
    Power — Input: 110 VAC, 60 Hz;
    Output: 6 VDC at 300 mA center positive
    Size — 1.25"H x 8.25"W x 2.5"D (3.2 x 21 x 6.4 cm)
