AC506A-4A

Photo may show similar product

Other views

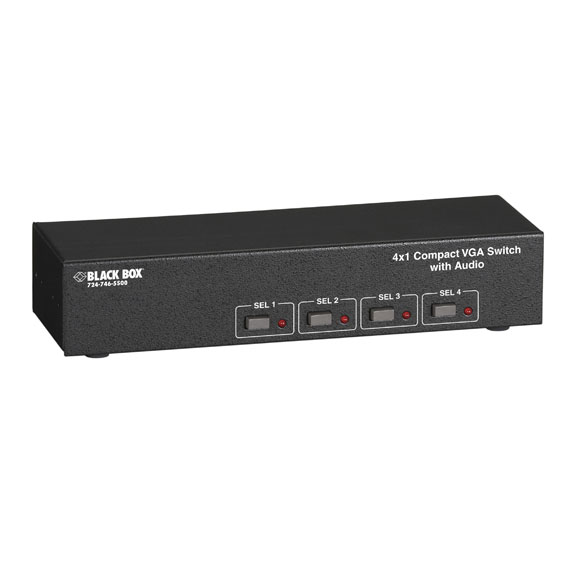

4 x 1 Compact VGA Switch with Audio

Switch four VGA video sources—plus audio—to one monitor.

AC506A-4A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Provides video cable distances up to 150 feet (45.7 m), audio support, and 1600 x 1200 resolution.
  • Control manually via an RS-232 control device.
  • Or set the switch up to cycle between video sources automatically.
  • Buffered video output protects the signal integrity.


  • Description

    4 x 1 Compact VGA Switch with Audio


    Quick Facts

  • Provides video cable distances up to 150 feet (45.7 m), audio support, and 1600 x 1200 resolution.
  • Control manually via an RS-232 control device.
  • Or set the switch up to cycle between video sources automatically.
  • Buffered video output protects the signal integrity.

  • Further Details

  • Automode detects active inputs and switches to them automatically. You assign port priority!
  • You can also blank and unblank an output via a serial port command.
  • LED indicates selected input source.
  • Fits into tight spaces and withstands heavy use.
  • Features an RFI shielded steel enclosure.


  • The 4 x 1 Compact VGA Switch with Audio from Black Box goes much farther than ordinary video switches in both the distance and resolution it supports.

    This solid-state, electronic switch not only uses boosters to drive VGA video signals up to 150 feet (45.7 m), it also offer a crisp resolution of up to 1600 x 1200.

    Use the switch, for instance, in a conference room where four laptop users can take turns projecting their screen images onto a single big-screen VGA monitor seen by all. It's also useful anywhere you need to use fewer monitors for displaying video sources.

    Control switching via an attached RS-232 device, or set it up to scan between VGA inputs at certain time intervals or display VGA inputs based on their priority. You can also blank output from one source or switch manually.

    The switch enables a single monitor with audio to be switched between four video/audio sources.


    Technical Specifications for 4 x 1 Compact VGA Switch with Audio:

    Distance (Maximum) 150 ft. (45.7 m) at XGA
    Resolution (Maximum) 1600 x 1200
    Video Bandwidth 200 MHz
    Video Level 0 to 0.7 V p-p
    CE Approval Yes
    RoHS Yes
    Connectors Video input: (4) HD15 F;
    Video output: (1) HD15 F;
    Serial: (1) DB9 F (RS-232);
    Audio input: (4) 3.5-mm mini-stereo;
    Audio output: (1) 3.5-mm mini-stereo
    Power Input: 120 VAC, 60 Hz;
    Output: 12 VDC at 300 mA center positive
    Size 1.7"H x 8.4"W x 2.7"D (4.3 x 21.3 x 6.9 cm)
    This product works with:
  • Premium VGA Video Extension Cable (EVNPS05)
  • Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for 4 x 1 Compact VGA Switch with Audio:

    Manuals

    • 4x1 Compact VGA Switch w/Audio
      Installation/User

    Product Data Sheets


    Connect your 4 x 1 Compact VGA Switch with Audio with:

    Accessory: EVNPS05-0003-FF

    Premium VGA Video Cable, PVC, 3-ft. (0.9-m)

    Premium VGA Video Extension Cable, Straight Hoods, Female/Female, 3-ft. (0.9-m)

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A warranty is included.

    Extended 1 Year Warranty Available


    Protect your purchase with an additional 1 Year Double Diamond™ warranty!
    Cost: $38.20

    Extended 3 Year Warranty Available


    Protect your purchase with an additional 3 Year Double Diamond™ warranty!
    Cost: $76.39

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most of our products come with a one- or two-year warranty. Some products—such as copper cables, manual switches, cabinets, and racks—are even guaranteed for life!

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product* for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! ?
    Tech Support Hotline 100% FREE! $$$

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    Mini CAT5 VGA Extender Kit AC504A $309.95

    2 x 1 Compact VGA Switch AC505A $205.95

    2 x 1 Compact VGA Switch with Audio AC505A-2A-R2 $283.95

    4 x 1 Compact VGA Switch AC506A $360.95

    You can find this product in the following subcategory(s)


    Add to Cart

    Price: $381.95

    Quantity Available: 15

    Quantity

    Warranty

    Total

    Shipping Info

    In Stock - orders received before 5PM ET ship same day

    Weight: 2.093 lbs.
    HxWxD: 2.5 x 7.5 x 10 in.

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.
