Datacom > Switches

click photo to enlarge

SW136A

Photo may show similar product

Other views

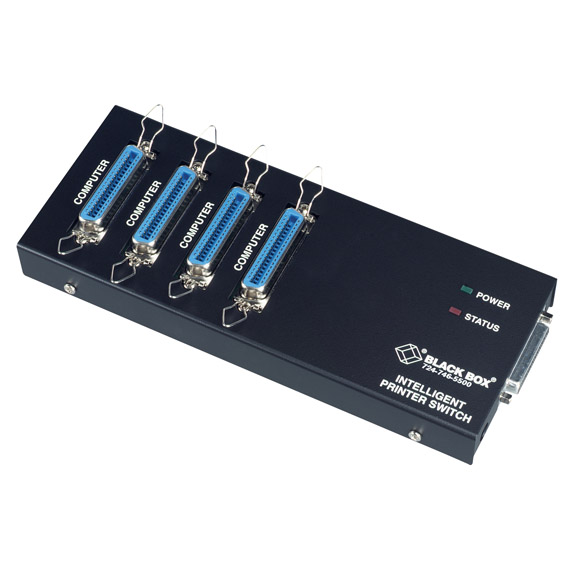

4-to-1 Intelligent Printer Switch (Parallel)

Fast, easy print-sharing for up to four PCs with Windows.

SW136A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Compatible with all popular software, including graphics and Windows® programs.
  • Throughput of up to 75,000 characters per second.
  • Supports up to four PCs.

  • Description

    4-to-1 Intelligent Printer Switch (Parallel)


    Quick Facts

  • Compatible with all popular software, including graphics and Windows® programs.
  • Throughput of up to 75,000 characters per second.
  • Supports up to four PCs.

  • Further Details

  • Unique Interface Matching Technology produces a significant advantage over direct connection and improves printing performance.
  • Ideal for Windows and graphics-intensive applications.


  • With today’s high-performance software applications, users demand more memory, larger hard disks, faster processors, and more powerful laser printers. Improve the printing performance of your PCs and printers simply by connecting them to a more intelligent switch.

    The BLACK BOX® Intelligent Printer Switch features a unique Interface Matching Technology that produces a significant advantage over direct connection. Just watch what happens to your printing performance!

    This simple switch is a fast, automatic data switch that enables you to easily share a printer between four computers.

    The Intelligent Printer Switch is versatile, too. It works with all computers, plotters, and printers that have standard Centronics® parallel interfaces. It’s compatible with all versions of Windows®. And the switch has test, auto form feed, and time-out features.

    This switch works on a first-come, first-served basis. The first computer to send data is connected to the printer through the switch. Other computers sending print jobs are queued and receive a printer busy signal. Once the first computer is finished printing, the next computer is automatically connected to the printer.

    This product works with:
    • Parallel Printer Cable, Male/Male (EYN600-MM)
    Questions? Contact our FREE Tech Support.


    Technical Specifications for 4-to-1 Intelligent Printer Switch (Parallel):

    Operating Systems Supported — DOS, Windows 3.x/95/98, Windows NT®, Windows 2000, Windows XP
    Selectable Options — 8, 16, 60, or 120 seconds; form feed on change of user; self-test/cable test
    Speed — 75,000 cps
    CE Approval — 230-VAC version only; for details, contact our FREE Tech Suppport
    Connectors— Inputs: (4) 36-pin Centronics® F;
    Output: (1) DB25 F
    Power — 115 VAC external power supply
    Size — 3.7"H x 9"W x 1.4"D (9.4 x 22.9 x 3.6 cm)
    Weight — 1 lb. (0.5 kg)
    This product works with:
    • Parallel Printer Cable, Male/Male (EYN600-MM)
    Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for 4-to-1 Intelligent Printer Switch (Parallel):


    Connect your 4-to-1 Intelligent Printer Switch (Parallel) with:

    Accessory: EYN600-0010-MM

    Parallel Printer Cables, 10-ft. (3.0-m)

    Bidirectional Communications (121/2 Pair) Cable, Centronics Male/DB25 Male, 10-ft. (3.0-m)
