Cabinets & Racks > Racks

click photo to enlarge

RM7004A

Photo may show similar product

Other views

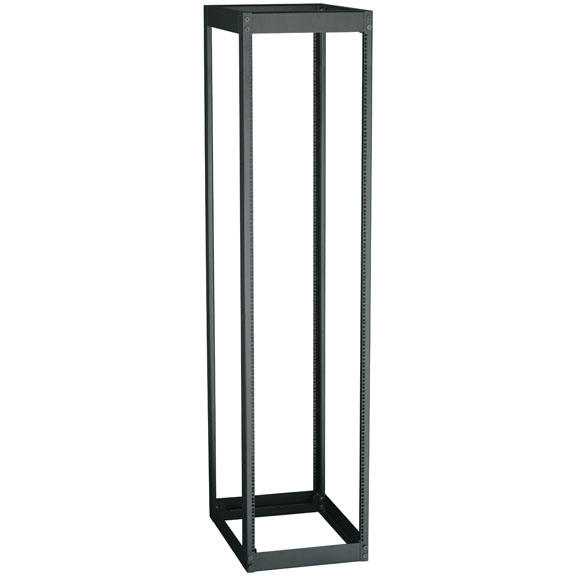

4-Rack Post, 51U

Exceptional stability plus great Black Box quality—all at an economical price.

RM7004A


Lifetime Warranty

Product Highlights

  • Weight capacity is 2200 pounds.
  • Constructed of 12-gauge cold-rolled steel.
  • Choose from 15U, 22U, 42U, 51U, or 58U of racking space.
  • Four-post stability.
  • Open design provides maximum ventilation.
  • M6 mounting.
  • Shipped unassembled.
  • Assembly hardware and mounting hardware are included.
  • EIA 310-D compliant.
  • Guaranteed for life!

  • Description

    4-Rack Post, 51U


    Quick Facts

  • Weight capacity is 2200 pounds.
  • Constructed of 12-gauge cold-rolled steel.
  • Choose from 15U, 22U, 42U, 51U, or 58U of racking space.
  • Four-post stability.
  • Open design provides maximum ventilation.
  • M6 mounting.
  • Shipped unassembled.
  • Assembly hardware and mounting hardware are included.
  • EIA 310-D compliant.
  • Guaranteed for life!

  • Further Details

    With solid four-post construction in a standard rack size at a very economical price, 4-Post Racks from Black Box are data center staples!

    Our 4-Post Rack combines the stability of a cabinet with the airflow of an open rack. It’s tough, too—its 12-gauge steel, quality construction supports more than a ton of equipment!

    The rack ships unassembled for easy transport to your site. Assembly is simple with the included hardware. You can install it as a standalone rack or bay it. To bay the rack, use our Baying Kit (RM7002).

    The rack conforms to the EIA standard for 19" equipment mounting and features universal M6 mounting holes. It comes with 50 M6 cage nuts and screws for mounting.

    What’s included:
  • Unassembled 4-Post Rack
  • (4) 80.5"H universal cage nut uprights
  • (4) 23"D horizontal depth brackets
  • (4) top/bottom horizontal width brackets
  • (16) 3/8"–16 x 3/4" flathead screws
  • (16) 1/2"–13 x 1" hex head bolts
  • (16) 1/2" x 13 hex nuts
  • (16) 1/2" split-locking washers
  • (50) M6 cage nuts
  • (50) M6 screws
  • (1) manual

  • This product works with:
  • Elite™ Server-Mount Cabinet Fixed Vented Server Shelf, 27 1/4"D, for 19" Rails (RM403)
  • 4-Post Rack Baying Kit (RM7002)
  • 4-Post Rack Caster Set (RM7006)
  • 4-Post Rack Flat Top (RM7007)
    Questions? Contact our FREE Tech Support.

  • Technical Specifications for 4-Rack Post, 51U:

    Rack Units — 51U
    Size — Exterior: 96"H x 20.6"W x 29"D (243.8 x 52.3 x 243.8 cm);
    Interior: 19"W (48.3 cm)
    Weight — 94 ib. (42.6 kg) Weight Capacity — Up to 2200 lb. (998 kg)
    This product works with:
  • Elite™ Server-Mount Cabinet Fixed Vented Server Shelf, 27 1/4"D, for 19" Rails (RM403)
  • 4-Post Rack Baying Kit (RM7002)
  • 4-Post Rack Caster Set (RM7006)
  • 4-Post Rack Flat Top (RM7007)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
