Networking > Extenders

click photo to enlarge

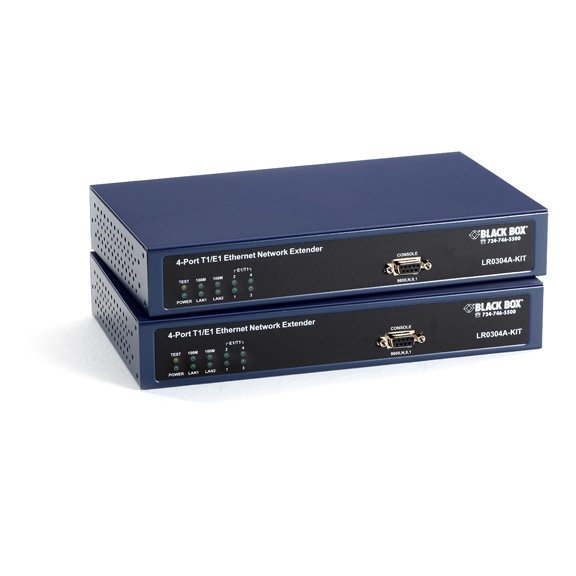

LR0304A-KIT

Photo may show similar product

Other views

4-Port T1/E1 Ethernet Network Extender Kit

Multiplexes 10BASE-T/100BASE-TX Ethernet across four Fractional T1/E1 lines.

LR0304A-KIT

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Kit includes two extenders.
  • Bridges 10BASE-T/100BASE-TX Ethernet across four T1/E1 lines.
  • Dual Ethernet ports.
  • Supports Fractional T1/E1 in framed and unframed mode.

  • Description

    4-Port T1/E1 Ethernet Network Extender Kit


    Quick Facts

  • Kit includes two extenders.
  • Bridges 10BASE-T/100BASE-TX Ethernet across four T1/E1 lines.
  • Dual Ethernet ports.
  • Supports Fractional T1/E1 in framed and unframed mode.

  • Further Details

  • Supports speeds up to 6.144 Mbps on T1 and 7.936 Mbps on E1.
  • Autosensing, autonegotiating 10-/100-Mbps LAN connections.
  • Auto MDI/MDI-X means you never need a crossover cable on the Ethernet side.
  • RS-232 console port for configuration.
  • Line build-out (LBO) capability.

  • The pair of extenders included with this kit act as a bridge, enabling you to link two Ethernet networks across four T1/E1 lines. Because you’re using leased lines provided by your telco, there are no distance limitations—you can extend your network anywhere you can get a T1 line.

    The T1/E1 Ethernet Network Extender converts protocols and data from Fractional T1/E1 to 10BASE-T/100BASE-TX Ethernet and supports both framed and unframed modes with line codes.

    The extenders multiplex data onto all four lines and automatically maintain the connection if a T1/E1 line goes down. When the line comes back into service, the extenders automatically restore it.

    What’s included:
    (2) Extenders
    (2) Power cords
    (2) CAT5 Ethernet cables
    (2) RS-232 console cables
    (1) CD containing the user’s manual


    Technical Specifications for 4-Port T1/E1 Ethernet Network Extender Kit:

    Environmental — Operating temperature: 32 to 122° F (0 to 50° C);
    Humidity: (2) 5–95%, noncondensing
    CE Approval — Yes
    Connectors — T1/E1: (4) RJ-48;
    Ethernet: (2) RJ-45;
    RS-232 console port: DB9 F
    Indicators — LEDs: (1) Power, (1) Test, (4) T1/E1, (2) 10/100M, (2) LAN
    Power — Input: 110/220 VAC, 50/60-Hz or -48V DC
    Size — 1.7"H x 10.2"W x 5.9"D (4.4 x 26 x 15 cm)
    What’s included:
    (2) Extenders
    (2) Power cords
    (2) CAT5 Ethernet cables
    (2) RS-232 console cables
    (1) CD containing the user’s manual

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for 4-Port T1/E1 Ethernet Network Extender Kit:

    Manuals

    • T1/E1 Ethernet Network Extender Kit Manual
      Manual for LR0304A-KIT, LR0308A-KIT (Version 2)

    Application Diagrams


    Connect your 4-Port T1/E1 Ethernet Network Extender Kit with:

    Accessory: EVNSL81-0006

    GigaBase 350 CAT5e Patch Cable, Snagless Boots, Blue, 6-ft. (1.8-m)

    GigaBase 350 CAT5e Patch Cable, Snagless Boots, Blue, 6-ft. (1.8-m)
