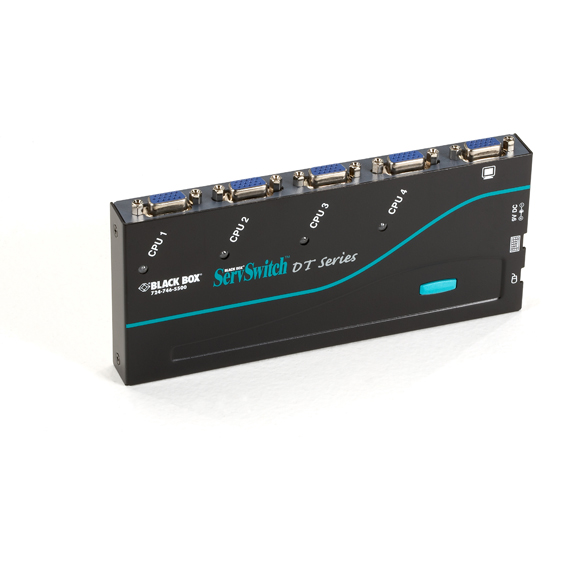

4-Port ServSwitch DT Low Profile KVM Switch

Tight quarters? This powerhouse ServSwitch stands less than an inch high!

KV7001A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Control four PS/2® computers with just one PS/2 keyboard, one PS/2 mouse, and a VGA monitor.
  • Measures just 0.8" high, so it's ideal for areas where space is at a premium.
  • 1920 x 1440 maximum resolution.

  • Description

    4-Port ServSwitch DT Low Profile KVM Switch


    Quick Facts

  • Control four PS/2® computers with just one PS/2 keyboard, one PS/2 mouse, and a VGA monitor.
  • Measures just 0.8" high, so it's ideal for areas where space is at a premium.
  • 1920 x 1440 maximum resolution.

  • Further Details

  • Great for desktop users who require access to multiple computers.
  • Space-saving design eliminates desktop clutter in small and home offices.
  • Plug and play—no configuration.
  • Easy port selection by hotkeys or front-panel button. Front-panel LEDs make the active port easy to identify.
  • Autoscan function allows port scanning at 3-, 8-, 15-, or 30-second intervals.
  • Supports all standard VGA resolutions from 640 x 480 to 1920 x 1440.
  • Supports Microsoft® operating systems.
  • Supports standard keyboard layouts up to 104 keys and Microsoft IntelliMouse® or compatible mice.
  • Robust keyboard and mouse emulation to prevent lockups.

  • Access, control, and reboot two or four IBM® computers using just one PS/2 keyboard, video, and mouse with the ServSwitch DT Low Profile KVM switch from Black Box.

    Measuring less than an inch high, this compact switch is a great fit for crowded workstation areas. And because all CPU cables connect at the rear, you have even more free space on your desktop.

    To switch between KVM channels, use either the top-panel buttons or a hotkey sequence on your keyboard. When you switch using a button, the corresponding top-panel LED lights to indicate which port is selected. Or you can set the ServSwitch DT Low Profile to switch between ports automatically with its AutoScan function.

    The ServSwitch DT Low Profile works with most Windows® operating systems, and it draws its power from the interface. You may need the Optional Power Supply (PS7090) for video-only applications. It provides the proper power through the unit's keyboard port.

    The kits includes four ServSwitch DT Low-Profile Cables.

    NOTE: 2-Port model also available.

    This product works with:
  • ServSwitch EC/DT Low Profile CPU Cable (EHN70001)
  • ServSwitch DT Optional Power Supply (PS7090)
    Questions? Contact ServSwitch Central™ at 724-746-5500 or by clicking on "Talk to a Tech."

  • Technical Specifications for 4-Port ServSwitch DT Low Profile KVM Switch:

    Operating Systems Supported — Windows 95/98/Me/XP, Windows NT, Windows 2000
    Resolution — 1920 x 1440
    System Requirements — IBM or compatible computers
    Connectors — Both: Shared monitor port: (1) HD15 F;
    Shared keyboard and mouse: (2) 6-pin mini DIN F;
    KV7000A also has: CPU: (2) HD15 F;
    KV7001A also has: CPU: (4) HD15 F
    Power — From the interface or an optional power supply
    Size — KV7000A: 0.8"H x 6.1"W x 2.8"D (2 x 15.5 x 7.1 cm);
    KV7001A: 0.8"H x 7.1"W x 3.4"D (2 x 18 x 8.6 cm)
    Weight — KV7000A: 0.9 lb. (0.4 kg);
    KV7001A: 1 lb. (0.5 kg)
    This product works with:
  • ServSwitch EC/DT Low Profile CPU Cable (EHN70001)
  • ServSwitch DT Optional Power Supply (PS7090)
    Questions? Contact ServSwitch Central™ at 724-746-5500 or by clicking on "Talk to a Tech."

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
