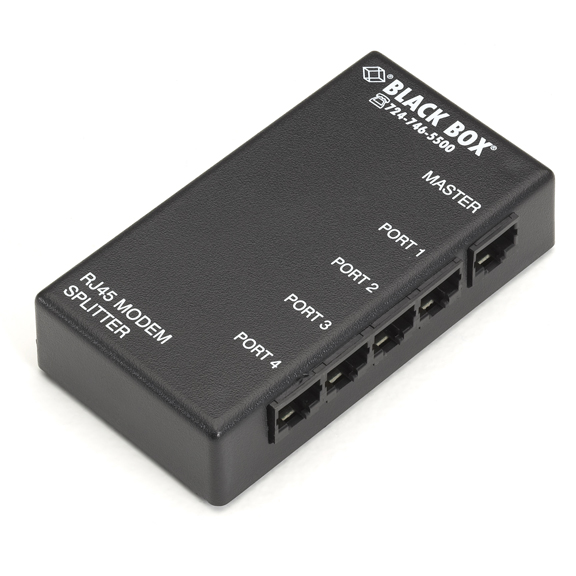

TL421A

Photo may show similar product

Other views

4-Port Modem Splitter (RS-232 on RJ-45)

Split data from a single modem to four RS-232 DTEs.

TL421A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Enables four RS-232 terminal devices to share a single modem.
  • Transmits data received from the modem to all attached terminal devices.
  • Passive, non-powered. Operates transparent to data formats and speeds.


  • Description

    4-Port Modem Splitter (RS-232 on RJ-45)


    Quick Facts

  • Enables four RS-232 terminal devices to share a single modem.
  • Transmits data received from the modem to all attached terminal devices.
  • Passive, non-powered. Operates transparent to data formats and speeds.


  • Further Details

    Featuring multiple ports for splitting modem signals, the compact 4-Port Modem Splitter (RS-232 on RJ-45) makes it easy and affordable for four terminals to share a single modem.

    With it, you can avoid the cost of having to purchase and install multiple modems and multiple modem lines.

    Plus, it's easy to set up and use. There are no user-configurable switches, jumpers, or settings on the modem splitter. Simply connect the modem and terminal (DTE) devices to it, then power up your modem and terminals as normal.

    The splitter's master port connects to your modem using an RJ-45 straight-through cable and the appropriate RJ or DB adapter. Its other ports (Port 1 through Port 4) connect to your DTE terminal devices.

    NOTE: Only one terminal device can send data to the modem at a time.


    Technical Specifications for 4-Port Modem Splitter (RS-232 on RJ-45):

    RoHS Yes
    Connectors Master port: (1) RJ-45 (RS-232);
    DTE ports: (4) RJ-45 (RS-232)
    Power Non-powered
    Size 0.9"H x 2.25"W x 4"D (2.3 x 5.7 x 10.2 cm)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for 4-Port Modem Splitter (RS-232 on RJ-45):

    Manuals

    • 4-Port Modem Splitter (RS-232 on RJ-45) User Manual
      User Manual for the TL421A (2)
