Industrial > Networking

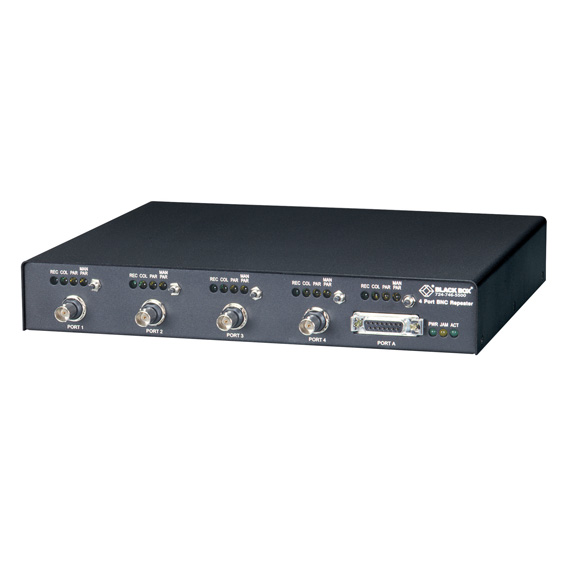

click photo to enlarge

LE8003A-R2

Photo may show similar product

Other views

4-Port BNC Repeater

The capable, compact, low-cost repeater.

LE8003A-R2

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Ideal for workgroups.
  • Low cost!

  • Description

    4-Port BNC Repeater


    Quick Facts

  • Ideal for workgroups.
  • Low cost!

  • Further Details

  • Four ThinNet connectors plus an AUI connector for backbone connections.
  • Compliant with Ethernet/IEEE 802.3, 10BASE2, and 10BASE5 standards.
  • Has both auto- and manual partition, so users can take a segment offline.

    The 4-Port BNC Repeater has everything you’re looking for: full IEEE 802.3 compliance, a small footprint, an AUI port for backbone connections, LEDs at every port—and a very reasonable price.

    It’s ideal for workgroups. All ports are functionally equivalent, and you can connect Ethernet devices directly to the repeater.

    The repeater installs easily without tools and once installed, configures itself.

    Internal network management constantly monitors each port for signal quality, ensuring packet integrity across the network.

    This product works with:
    • Bulk ThinNet Cable, Stranded-Conductor (LCN300A)
    Questions? Contact our FREE Tech Support.

  • Technical Specifications for 4-Port BNC Repeater:

    Distance — ThinNet: 185 meters;
    Standard Ethernet: 50 meters
    Connectors — (4) BNC, (1) AUI
    Indicators — Per port LEDs: Receive, Collision, Partition, and Manual Partition
    Power — 115–230 VAC, 60–50 Hz, autosensing
    Size — 1.7"H x 8.9"W x 6.7"D (4.3 x 22.6 x 17 cm)
    Weight — 3 lb. (1.4 kg)
    This product works with:
    • Bulk ThinNet Cable, Stranded-Conductor (LCN300A)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
