Digital Signage & Multimedia > Video Infrastructure

click photo to enlarge

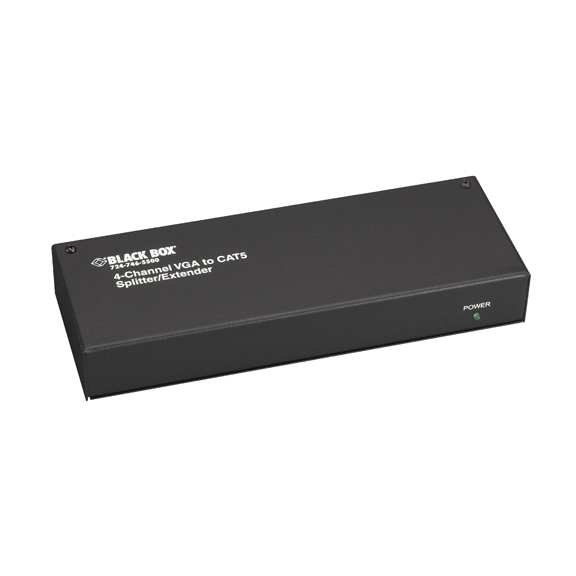

AC601A

Photo may show similar product

Other views

4-Channel Mini CAT5 VGA Splitter/Extender Transmitter

Extend VGA video signals to four monitors over CAT5 UTP.

AC601A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • A splitter/extender transmitter that sends VGA signals over CAT5 UTP to receivers attached to four monitors.
  • Eliminates the need for bulky VGA cables.
  • Extends video up to 500 feet of ordinary CAT5 cable.
  • Buffers and boosts signals for a clear video image.
  • For splitting signals for just two monitors, see our 2-channel model (AC600A).

  • Description

    4-Channel Mini CAT5 VGA Splitter/Extender Transmitter


    Quick Facts

  • A splitter/extender transmitter that sends VGA signals over CAT5 UTP to receivers attached to four monitors.
  • Eliminates the need for bulky VGA cables.
  • Extends video up to 500 feet of ordinary CAT5 cable.
  • Buffers and boosts signals for a clear video image.
  • For splitting signals for just two monitors, see our 2-channel model (AC600A).

  • Further Details

    Send VGA video signals over CAT5 UTP to four monitors with the 4-Channel Mini CAT5 VGA Splitter/Extender Transmitter. It splits and extends video across four channels to four remote displays.

    For each remote display, order a separate Mini CAT5 Splitter/Extender VGA Receiver (AC602A) or Mini CAT5 VGA Extender Receiver in Wallplate (AC504A-WP-R). In most setups, the 4-Channel Mini CAT5 Splitter/Extender and receiver combo requires a power supply at the transmitter end only to power a link to all connected receivers. (However, for CAT5 runs of more than 300 feet, the receivers require their own power supply.)

    The transmitter amplifies the signal for clean and crisp transmission, and differential signaling eliminates ground loops and noise. In the transmission, there’s little or no degradation of video quality, and the 4-Channel Mini CAT5 Splitter/Extender handles resolutions up to 1600 x 1200 at any refresh rate. It works with VGA, SVGA, XGA, and UXGA video.

    You can also transport the 4-Channel Mini CAT5 Splitter/Extender and install it with ease. Rugged and reliable, the extender unit features a compact plastic enclosure that can withstand the daily grind and frequent cable changes.

    NOTE: Must be used with compatible receivers (AC504A-WP-R or AC602A).

    What’s included:
  • (1) 4-Channel Mini CAT5 VGA Splitter/Extender Transmitter
  • (1) VGA cable (male/male)
  • (1) power supply

  • Technical Specifications for 4-Channel Mini CAT5 VGA Splitter/Extender Transmitter:

    Distance (Maximum) — 500 ft. (152.4 m)
    Resolution (Maximum) — 1600 x 1200 at 300 ft. (91.4 m) or 1280 x 1024 at 500 ft. (152.4 m)
    CE Approval — Yes
    Connectors — Video input: (1) HD15 F,
    Local monitor: (1) HD15 F,
    Interconnect: (4) shielded RJ-45
    Power — 100–240 VAC, 50–60 Hz, autosensing
    Size — 1.2"H x 8.5"W x 3"D (3 x 21.6 x 7.6 cm)
    This product works with:
  • Mini CAT5 Splitter/Extender VGA Receiver (AC602A)
  • Mini CAT5 VGA Extender Receiver in Wallplate (AC504A-WP-R)
  • CAT5 100-MHz Solid Conductor Cable, 4-Pair, Straight-Pinned (EYN556MS, EYN550MS)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
