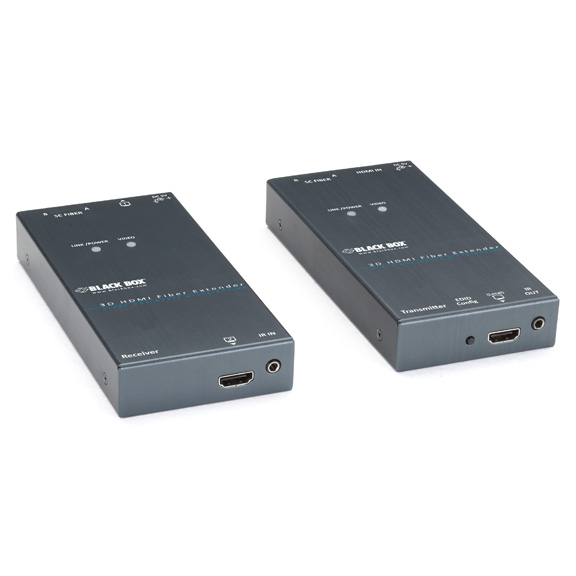

3D HDMI Fiber Extender

Extends lossless HDMI with 3D support.

VX-HDMI-FO

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Extend a video signal up to 1.6 kilometers (1 mi.) at 1080i or 0.8 kilometers (0.5 mi.) at 1080p via multimode fiber cable.
  • Pure digital transmission with zero compression.
  • Fully compliant with HDMI 1.3b specification.
  • HDCP compliant and Blu-ray ready.


  • Description

    3D HDMI Fiber Extender


    Quick Facts

  • Extend a video signal up to 1.6 kilometers (1 mi.) at 1080i or 0.8 kilometers (0.5 mi.) at 1080p via multimode fiber cable.
  • Pure digital transmission with zero compression.
  • Fully compliant with HDMI 1.3b specification.
  • HDCP compliant and Blu-ray ready.

  • Further Details

  • No software or driver installation required.
  • Fiber optics ensure noise immunity and a high level of security.
  • IR extending function available.

  • The 3D HDMI Fiber Extender enables users to extend a video signal up to 1.6 kilometers (1 mi.) away from a video source with a single duplex fiber optic cable.

    The HDMI digital display can be optimized up to the maximum resolution of Full HD (1920 x 1080)/WUXGA (1920 x 1200)/UXGA (1600 x 1200), and the audio display is compatible in HDMI linking.

    This extender is perfect for applications that require greater distance, high-speed transmission, real-time high video resolution, security, and noise immunity. Plus, its economical and scalable design is a natural for growth-oriented enterprises.


    Technical Specifications for 3D HDMI Fiber Extender:

    Distance (Maximum) 1.6 km (1 mi.) at 1080i; 0.8 km (0.5 mi.) at 1080p
    CE Approval Yes
    RoHS Yes
    Connectors Receiver: (2) HDMI, (1) 3.5-mm IR, (1) SC;
    Transmitter: (2) HDMI, (1) 3.5-mm IR, (1) SC
    Indicators LEDs: (1) Power, (1) Video
    Power 100-240 VAC, 50-60 Hz
    Size 1"H x 6.1"W x 3"D (2.5 x 15.5 x 7.6 cm)
    Weight 0.7 lb. (0.3 kg)

    What's included:
    • (1) HDMI Extender Local Unit • (1) HDMI Extender Remote Unit • (2) power supplies with snap-on power plug • (1) 2-m (6.5-ft.) SC/SC duplex 50-/125-micron patch cord • (2) sets of (4) footpads • (10) small screws (hardware for magnets) • (8) small magnets for mounting

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for 3D HDMI Fiber Extender:

    Manuals

    • 3D HDMI Fiber Extender User Manual
      Manual for the VX-HDMI-FO (Version 2)
