Video & Multimedia > Extenders

click photo to enlarge

Other views

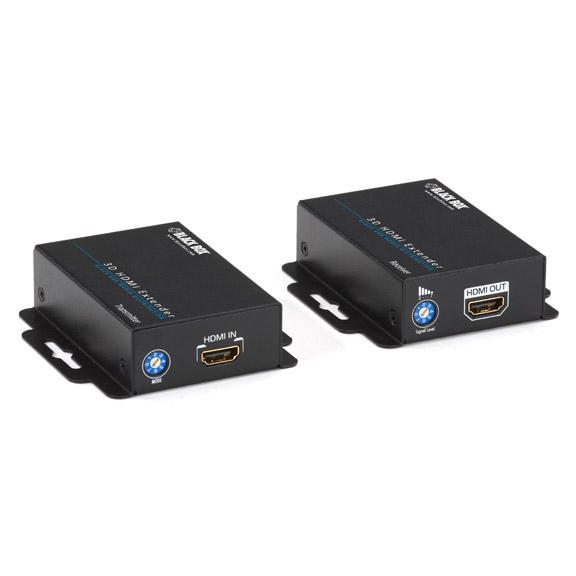

3D HDMI CATx Extender

Reach eye-catching 3D screens simply and affordably with this CATx-based HDMI extension solution.

VX-HDMI-TP-3D40M

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

Your solution for locating 3D signage in all areas of your business.

A low-priced, fully transparent HDMI® extender designed to support all resolutions.

Extends the transmission up to 130 feet (40 m) from the HDMI source at Full HD 1080p 24-bit color.

Daisychain up to (10) receivers using the optional VSPX-HDMI-CSRX receiver.

Description

3D HDMI CATx Extender

Quick Facts

Your solution for locating 3D signage in all areas of your business.

A low-priced, fully transparent HDMI® extender designed to support all resolutions.

Extends the transmission up to 130 feet (40 m) from the HDMI source at Full HD 1080p 24-bit color.

Daisychain up to (10) receivers using the optional VSPX-HDMI-CSRX receiver.

Further Details

Provides pure, unaltered transmission of 7.1-channel HDMI with zero compression.

HDMI 1.3a compliant. Provides full 3D screen support.

HDMI Deep Color capable for vivid color depth.

HDCP 1.1 compliant and Blu-ray ready.

Includes both a transmitter and a receiver.

Wallmountable for space-saving installation.

No software or driver installation required.

Features electrostatic-discharge (ESD) protection.

The affordably priced 3D HDMI CATx Extender makes it easy to extend digital video from a source to a distant 3D screen in a lobby or other high-traffic area.

Because the extender can transmit over solid copper cabling already installed in your building, it's easy to put your new 3D screens in spaces where your target audiences frequent—and you don't have to pull any new cables and/or sacrifice video quality in the process. It’s perfect for applications that require greater distance for high-quality video resolutions on HDTV and 3D displays.

Over a single dedicated CAT6 cable run, it extends 1080i or 720p video with 24-bit color depth as far as 200 feet (60 m) and 24-bit Full HD 1080p video up to 130 feet (40 m). It also works over CAT5e cable but at shorter distances (see the Tech Specs). And for 36-bit 1080p color, it can go up to 65 feet (20 m).

Configuration is minimal. You select your video and audio type, as well as activate the learning of EDID info from the remote display, using the 8-position rotary switch on the transmitter.

To minimize skew over long cable distances, the 3D HDMI CATx Extender features adjustable eight-level equalization control on its receiver. Adjusting the equalization strength optimizes the video signal for transmitting greater distances between the source and display.

The extender supports high-quality sound, too. As part of the HDMI signal, it transmits DTS-HD and Dolby® TrueHD high-bit-rate audio and 7.1-channel surround sound audio.

What's included:
• (1) transmitter
• (1) receiver
• (2) power supplies with power cords
• Wallmounting screws
• User manual

Technical Specifications for 3D HDMI CATx Extender:

Audio Support — Up to 7.1-channel surround sound or stereo digital audio
Controls — Equalization: 8-level digital signal control using rotary switch on the receiver;
AV mode: 8-level control using rotary switch on transmitter
Distance (Maximum)* — 200 ft. (60 m) from the HDMI source at HD 1080i or 720p 24-bit color;
130 ft. (40 m) from the HDMI source at Full HD 1080p 24-bit color;
65 ft. (20 m) from the HDMI source at Full HD 1080p 36-bit color
Input DDC Signal — 5 volts (p–p, TTL)
Input TMDS Signal — 1.2 volts (p–p)
Resolutions Supported — 480i/480p, 720p, 1080i/1080p at 60 Hz up to 36-bit color
Video Bandwidth — Single-link 225 MHz (6.75 Gbps)
RoHS — Yes
Connectors — Transmitter: (1) HDMI input, (1) RJ-45 output (CATx interconnect);
Receiver: (1) HDMI output (1) RJ-45 input (CATx interconnect)
Power — For both the transmitter and receiver:
AC input: 100–240 VAC, 50–60 Hz;
DC output: 5 VDC, 2 amps;
Consumption: Transmitter: 4 watts (max.);
Receiver: 1.5 watts (max.)
Size — Both transmitter and receiver units: 1"H x 2.4"W x 3.6"D (2.5 x 6.1 x 9.2 cm)
Weight — Transmitter: 0.5 lb. (0.3 kg)
Receiver: 0.4 lb. (0.2 kg)

* NOTE: Distance depends on the characteristics and quality of the cables and the type of HDMI source and display. Higher resolutions and longer transmission distances require low-skew cables (<25 ns/100 m) for best performance. We recommend using unshielded CAT6 cable.

NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

Resources for 3D HDMI CATx Extender:

Manuals

3D HDMI CATx Extender Manual
Manual for VX-HDMI-TP-3D40M (Version 1)

Product Data Sheets

3D HDMI CATx Extender

Connect your 3D HDMI CATx Extender with:

HDMI to HDMI Cable, M/M, PVC, 1-m (3.2-ft.)

» more info
